USER'S GUIDE
NUVO, NUVO 8 & NUVO 10
OXYGEN CONCENTRATOR
[Original language is English]
Federal Law (US) restricts this device to sale
by, or on the order of, a licensed physician.
This oxygen concentrator should be used only
under the supervision of a licensed physician.
WARNING
____________________________________________________________________________________
CONTENTS
______________________________________________________________________________________________________________
2010-2324CE-B
Mark 5 Nuvo Family
1
2
3
3
3
3
3
3
3
4
4
4
4
4
4
5
5
5
5
6
6
7
7
8
9
September 2015

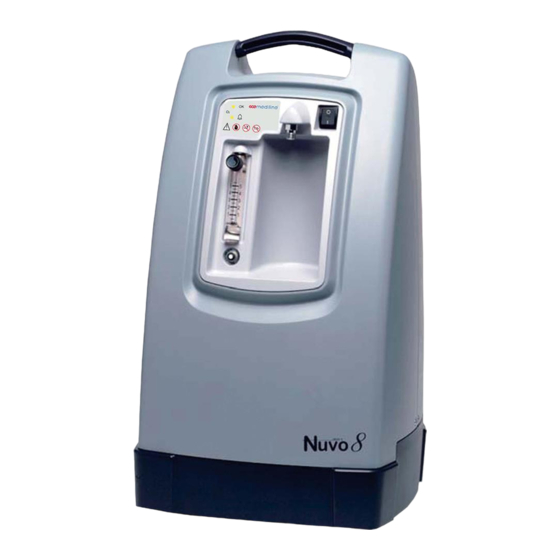

NUVO 8 shown for reference.
DANGER: Do not smoke when using
oxygen or when near this device.
GLOSSARY OF SYMBOLS
: ON (Power Switched on)
: OFF (Power Switched off)
: Type B Device
: Class II Protection
: DO NOT EXPOSE TO OPEN FIRE
: DO NOT USE OIL OR GREASE
: Technical Information
: Consult the accompanying documents
: Keep in vertical position
: Fragile - Handle with care
: Oxygen concentration warning light
0413 Complies with the 93/42/EEC directive
certified by the approved organization 0413.
Page 1 of 12
Advertisement
Table of Contents
Related Manuals for Nidek Medical Nuvo Series
Summary of Contents for Nidek Medical Nuvo Series
-
Page 1: Table Of Contents
USER'S GUIDE Mark 5 Nuvo Family NUVO, NUVO 8 & NUVO 10 OXYGEN CONCENTRATOR [Original language is English] Federal Law (US) restricts this device to sale NUVO 8 shown for reference. by, or on the order of, a licensed physician. This oxygen concentrator should be used only under the supervision of a licensed physician. -
Page 2: General Safety Guidelines
GENERAL SAFETY GUIDELINES Only persons who have read and understood this entire manual should be allowed to operate the device. The WARNINGS below indicate a potentially hazardous situation. If conditions are not avoided a situation could occur that results in serious injury or death. Oxygen is not a flammable gas, but it accelerates the combustion of materials. -
Page 3: Method For Waste Disposal
• Note: the performances described pertain to the use of the device with accessories recommended by Nidek Medical Products, Inc. Refer to section 5. -
Page 4: Cleaning-Maintenance
Turn the flow adjustment knob (4) to the prescribed value. This knob may have already been locked in the medically prescribed position. In this case, do not force it. Only the technician or medical personnel are authorized to release it. Note: View the flowmeter from straight on for accurate settings. -
Page 5: Materials In Direct/Indirect Contact With Patient
The accessories with a Nidek Medical part number reference, or included in the set of accessories supplied with the device, comply with these requirements. Contact your equipment supplier to obtain these accessories. Note: The use of certain administration accessories which are not specified for use with this concentrator may reduce its performance and void the manufacturer’s responsibility (ISO 8359). -
Page 6: Indicators
Electrical protection of the device: A 5A circuit breaker is incorporated into the front cabinet of all 230V models • A 10A circuit breaker is incorporated into the front cabinet of all 115V models • Class II devices with insulated castings (EN60601-1 standard) •... -
Page 7: Standards
Electrical power supply: Model 5lpm 115V 5LPM 230V 8LPM 115V 8LPM 230V 10LPM 115V 10LPM 230V Frequency 60Hz 50/60Hz 60Hz 50Hz 60Hz 50Hz Average 410 Watts 420 Watts 500 Watts 490 Watts 700 Watts 600 Watts Power Protection Class II Class II Class II Class II... -
Page 8: Troubleshooting
5. 10. Troubleshooting. Observations Possible Causes Solutions Power cable (9) is not correctly Check the cable connection. The I-O (ON/OFF) button is in the “I” (ON) plugged into the wall outlet. position but the device does not operate. Capacitor is not charged Internal Check the circuit breaker (5) on the front Capacitor is not charged Internal electrical fault. -
Page 9: Emc, Electromagnetic Statements
6. EMC, Electromagnetic Statements ______________________________________________________________________________________________________________ 2010-2324CE-B September 2015 Page 9 of 12... - Page 10 NOTES: __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ ______________________________________________________________________________________________________________ 2010-2324CE-B September 2015 Page 10 of 12...
- Page 11 NOTES: __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ __________________________________________________________________________________ ______________________________________________________________________________________________________________ 2010-2324CE-B September 2015 Page 11 of 12...
- Page 12 EU Representative mdi Europa GmbH Langenhagener Str. 71 30855 Hannover-Langenhagen Germany Tel: +49-511-39-08 95 30 Nidek Medical Products, Inc. Fax: +49-511-39-08 95 39 3949 Valley East Industrial Drive info@mdi-europa.com Birmingham, Alabama 35217 U.S.A. www.mdi-europa.com Tel: 205-856-7200 Fax: 205-856-0533 ______________________________________________________________________________________________________________ 2010-2324CE-B...
