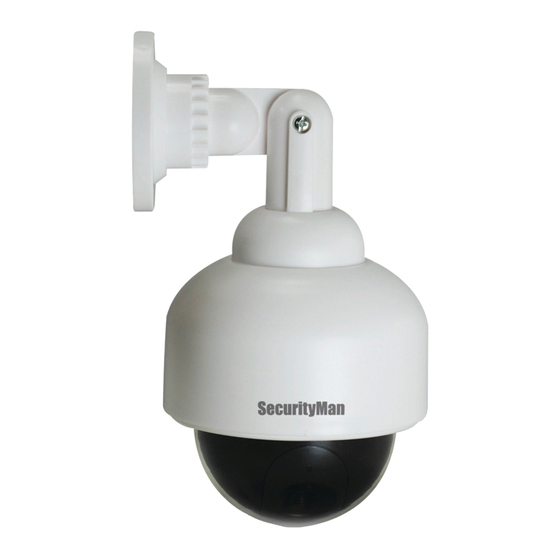

Summary of Contents for SecurityMan SM-400MC
- Page 1 SM-400MC User’s Manual Outdoor/Indoor Wired Dome Camera with Night Vision...
- Page 2 Warranty SecurityMan Inc warrants that this product will be free from defects in title, materials and manufacturing workmanship for one year or otherwise specified on the product packaging. This limited warranty shall commence from the date of purchase.
- Page 3 The liability of SecurityMan Inc, arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall SecurityMan be liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential, incidental, direct or indirect damages, however caused and on any theory of liability, arising from this warranty and sale.
-
Page 4: Table Of Contents
Table of Contents Introduction Package Contents Features Camera Installation Wiring Setup Night Vision Specifications... -
Page 5: Introduction
35ft of distance in total darkness providing your home or business with the ultimate protection. Best of all, this camera can be mixed in with the SecurityMan SM-2100 dummy camera to increase security presence anywhere with just a fraction of the cost. -
Page 6: Features
Features • Do-it-yourself (D.I.Y.) easy to setup wired camera kit • Robust, weather-proof color dome camera, good for both outdoor and indoor • Conveys strong security presence due to its stylistic dome design • Built-in IR LEDs for night vision up to 35ft (B/W) •... - Page 7 Adjustment Point (UP/Down) Mounting Base Pan Adjustment Point (Left/Right) Dome Camera Casing Camera Cover Light Sensor Night Vision LEDs Camera 3. Adjust the cameras vertical angle by loosening the Adjustment Point screw for Up/Down rotation as shown in figure (c). 4.
-
Page 8: Wiring Setup
Wiring Setup MONITOR DVR UNIT SM-400MC 1. Power connection: connect one end of the 100ft VP (video/power) receptacle to the camera’s power input socket, connect the A/C adapter (12VDC, 500mA) to the other end of the 100ft VP cable. Then connect the power adapter to an electrical power outlet as illustrated in figure (d). -
Page 9: Night Vision
3. Adjust brightness, contrast, hue, saturation, and color of the TV/monitor to perfection. Night Vision The built-in infrared LEDs provide up to 35ft of night vision for 24-hour surveillance. The IR LEDs are automatically activated when the amount of light is not adequate to capture a good image. While in night vision mode the picture will become black and white or monochrome. -
Page 10: Specifications
Specifications Image sensor 1/4” CMOS Color Horizontal resolution 400 TV Lines Effective pixels 500(H)*480(V) NTSC Weather-proof IP45 Backlight Focal length Viewing angle 35 Degree Number of IR LEDs 18 LEDs IR range Up to 35ft Min. illumination 0.5lux (IR off), 0lux (IR on) 1.0Vp-p/75 Ω...
