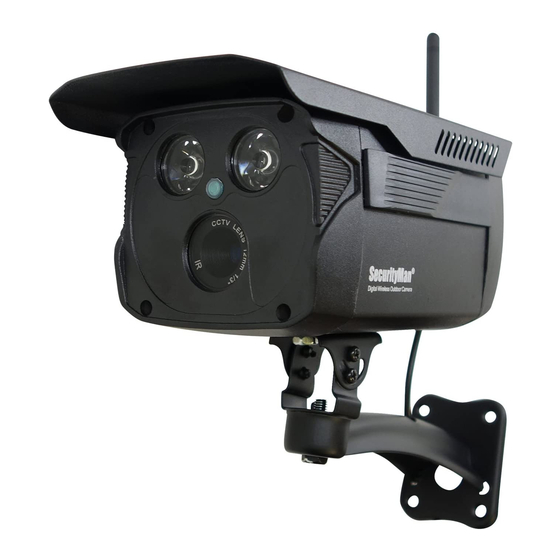

- Page 1 Digital Wireless Outdoor Camera SM-804DT User’s Manual 2.4GHz Digital Wireless Outdoor/Indoor Camera with Night Vision and Audio...
- Page 2 SecurityMan. The content of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by SecurityMan.
- Page 3 The liability of SecurityMan Inc, arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall SecurityMan be liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential, incidental, direct or indirect damages, however caused and on any theory of liability, arising from this warranty and sale.
-
Page 4: Table Of Contents
Table of Contents Restrictions Conditions Features Package Contents Specifications Product Basics Operation Adding Camera to SM-371DR/SM-804DR Removing Camera from SM-371DR/SM-804DR... -
Page 5: Restrictions
• DO NOT use this product to carry out any illegal activities such as sneak preview, and etc. SecurityMan shall not be responsible for any consequences of illegal conducts made by users. • DO NOT put the camera in quaky paces. The camera may be unstable or out of operation if installed improperly. - Page 6 • DO NOT use the camera in the places which are covered with metal. The around metal, such as elevator and cabin, might shield the electromagnetic wave, and result in inability to receive signals. • DO NOT put the plastic package bags in reach of children or babies. Young children can choke on these items if they put them into their mouths.
-
Page 7: Conditions
Conditions Please read the following messages to make sure your working environment is suitable. • The temperature should be kept between –10˚C and 50˚C (14˚F to 122˚F). The relative humidity should be kept between 20% and 80%. • Avoid putting the product in places where temperature or humidity may change rapidly. -
Page 8: Package Contents
• Up to 4 channels (Cam1, Cam2, Cam3, or Cam4) can be paired to a receiver SM-371DR or SM-804DR • Infrared filtered camera for best vibrant color picture Compatible with the following SecurityMan receivers: • SM-371DR (LCD monitor/receiver) • SM-804DR (Receiver) -
Page 9: Specifications
1 x Angle adjustable antenna Consumption Current 500mA Mounting Bracket Angle adjustable Power LED Indicator Power Supply 12VDC/ 1.0A Dimensions 8.25” x 3.75” x 4.25” (camera body w/ visor only) Pairing Button Product Basics Camera (SM-804DT) Digital Wireless Outdoor Camera... -
Page 10: Operation
Operation Adding camera to SM-371DR/SM-804DR Step 1: Press Pair button at the back of the camera as illustrated below. Step 2: In the Menu options on receiver select Camera as shown below. Step 3: Select Add/Remove Camera and pair it up with an UNLOCK icon camera (1~4), as shown below. -
Page 11: Removing Camera From Sm-371Dr/Sm-804Dr
Step 4: Select Yes to complete the Adding Camera process shown below. NOTE: When adding a camera, press the OK button on the LCDDVR to confirm the adding camera selection and then immediately press the “Pairing” button located on the back of the camera 3 consecutive times (press, release, press, release, and press and release).
