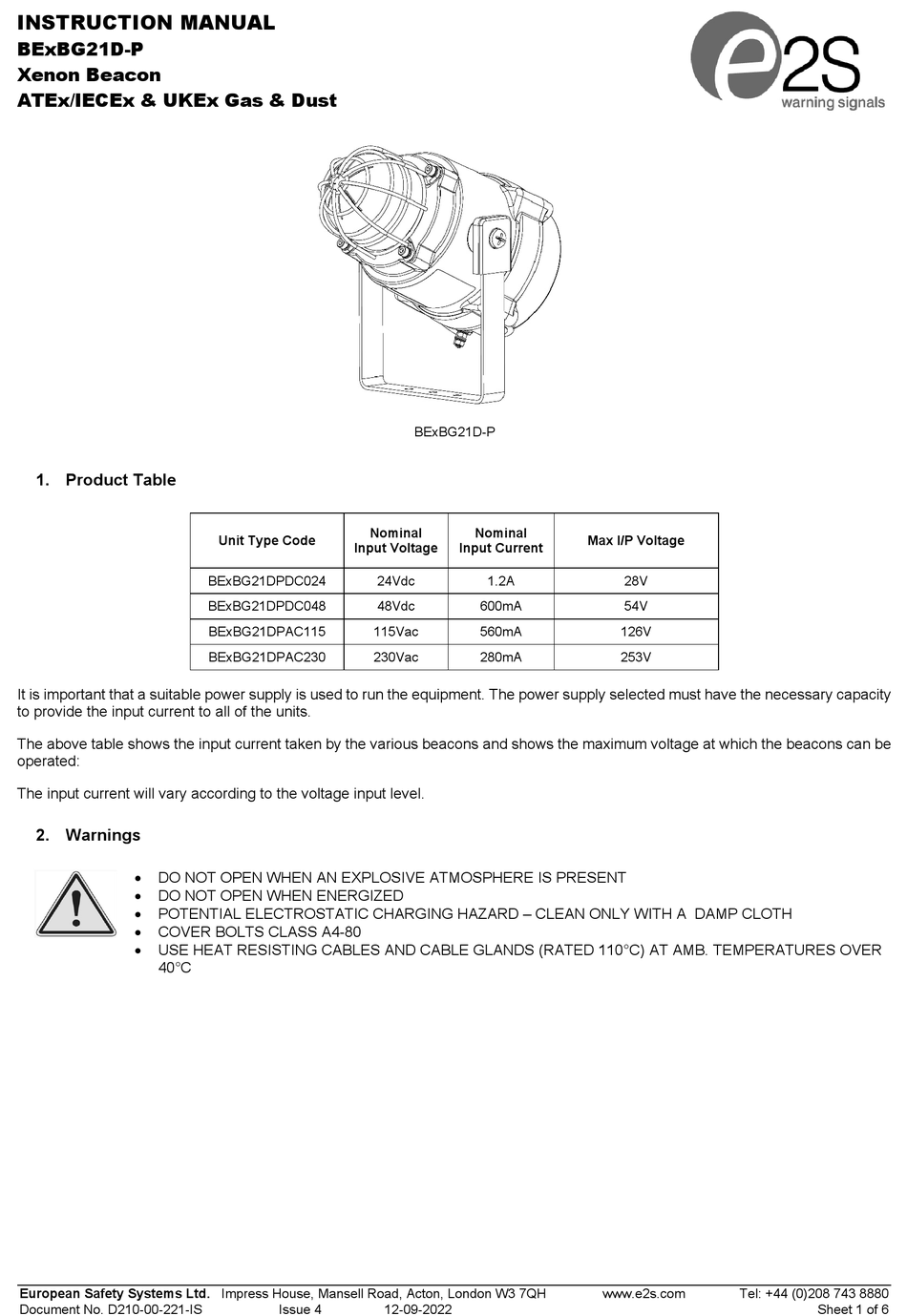

INSTRUCTION MANUAL
BExBG21D-P
Xenon Beacon
ATEx/IECEx & UKEx Gas & Dust
1. Product Table
It is important that a suitable power supply is used to run the equipment. The power supply selected must have the necessary capacity
to provide the input current to all of the units.
The above table shows the input current taken by the various beacons and shows the maximum voltage at which the beacons can be
operated:
The input current will vary according to the voltage input level.
2. Warnings
DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT
DO NOT OPEN WHEN ENERGIZED
POTENTIAL ELECTROSTATIC CHARGING HAZARD – CLEAN ONLY WITH A DAMP CLOTH
COVER BOLTS CLASS A4-80
USE HEAT RESISTING CABLES AND CABLE GLANDS (RATED 110°C) AT AMB. TEMPERATURES OVER
40°C
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D210-00-221-IS
Nominal
Unit Type Code
Input Voltage
BExBG21DPDC024
24Vdc
BExBG21DPDC048
48Vdc
BExBG21DPAC115
115Vac
BExBG21DPAC230
230Vac
Issue 4
BExBG21D-P
Nominal
Input Current
1.2A
600mA
560mA
280mA
12-09-2022
Max I/P Voltage
28V
54V
126V
253V
www.e2s.com
Tel: +44 (0)208 743 8880
Sheet 1 of 6
