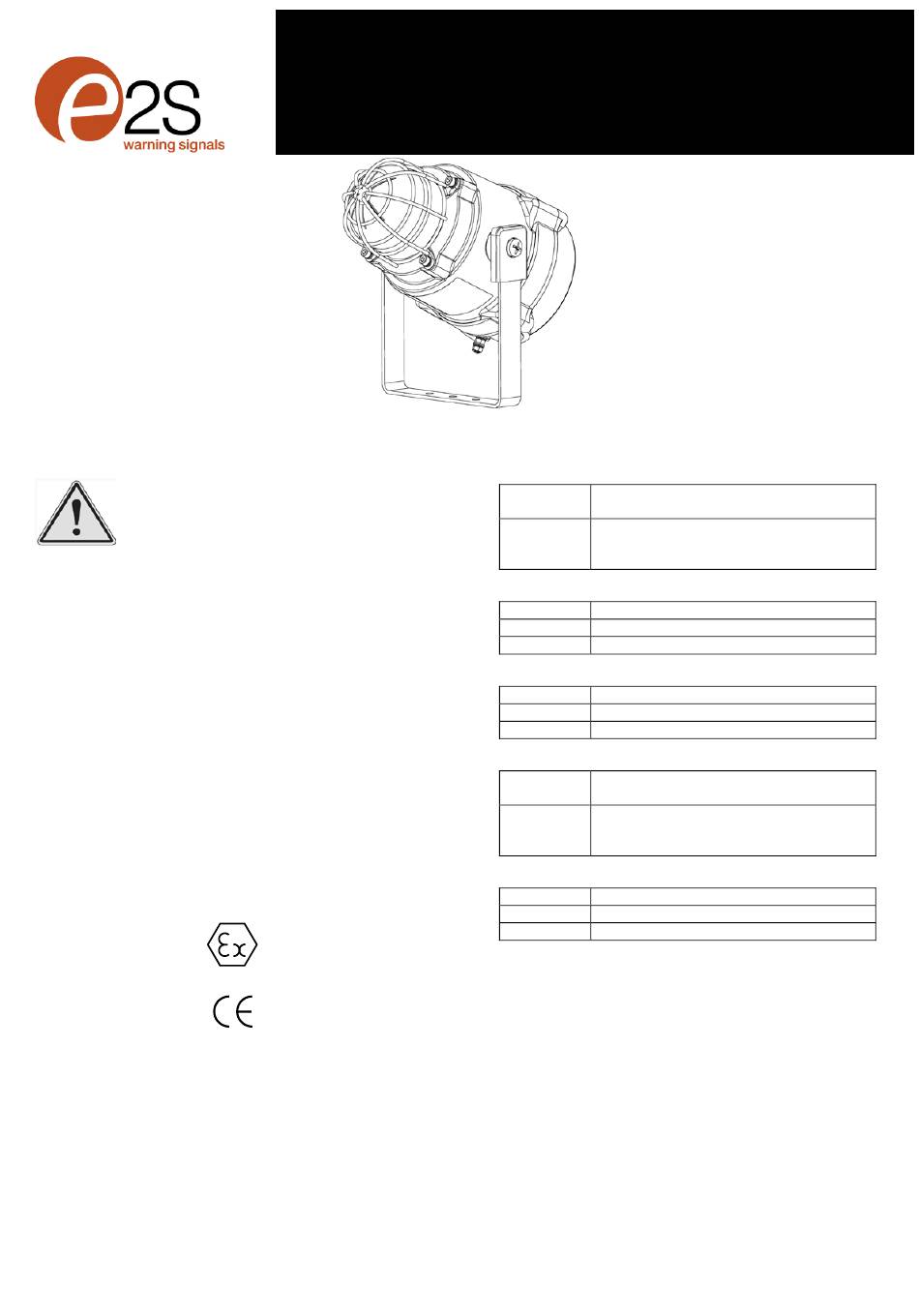

E2S BExBG21D-P Instruction Manual

1) Warnings
• DO NOT OPEN WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT
• DO NOT OPEN WHEN ENERGIZED
• POTENTIAL ELECTROSTATIC CHARGING
HAZARD
• COVER BOLTS CLASS A4-80
• USE HEAT RESISTING CABLES AND CABLE
GLANDS (RATED 110°C) AT AMB.
TEMPERATURES OVER 40°C
2) Rating & Marking Information
All units have a rating label, which carries the following
important information:-
Model No.: BExBG21D-P
Input Voltage: DC Units
AC Units
BExBG21D-P Codes:
Ex d IIC T3 Gb Ta. -50°C to +70°C
Ex tb IIIC T150°C Db Ta. -50°C to +40°C
Ex tb IIIC T165°C Db Ta. -50°C to +55°C
Ex tb IIIC T180°C Db Ta. -50°C to +70°C
KEMA 00ATEX2006X
Certificate No.
IECEx KEM 10.0002X
Epsilon x:
Equipment Group and
Category:
CE Marking
Notified Body No.
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D210-00-221-IS
INSTRUCTION MANUAL (ATEX / IECEx)
For use in Flammable Gas and Dust Atmospheres
24V or 48V
115V or 230V
II 2G/D
0518
Issue A 02-08-16
BExBG21D-P
Flameproof Xenon Beacons
BExBG21D-P
The BExBG21D-P beacons have been certified for use
locations with the following conditions:
Area Classification Gas:
Explosive gas atmosphere likely to occur
Zone 1
in normal operation.
Explosive gas atmosphere not likely to
Zone 2 occur in normal operation but may be
present for short periods.
Gas Groupings:
Group IIA Propane
Group IIB Ethylene
Group IIC Hydrogen and Acetylene
Temperature Classification:
T1 400
T2 300
T3 200
Area Classification Dust:
Explosive dust atmosphere likely to occur
Zone 21
in normal operation.
Explosive dust atmosphere not likely to
Zone 22 occur in normal operation but may be
present for short periods.
Dust Groups:
Group IIIA Combustible Dust
Group IIIB Non-Conductive Dust
Group IIIC Conductive Dust
Maximum Surface Temperature for Dust Applications:
IP Rating: IP66/67 to EN/IEC60529 and IP6X to
EN/IEC60079-0, EN/IEC60079-31
Equipment Category:
Equipment Protection Level:
Ambient Temperature Range:
-50°C to +70°C Gas Groups IIA, IIB and IIC
-50°C to +70°C Dust Groups IIIA, IIIB and IIIC
