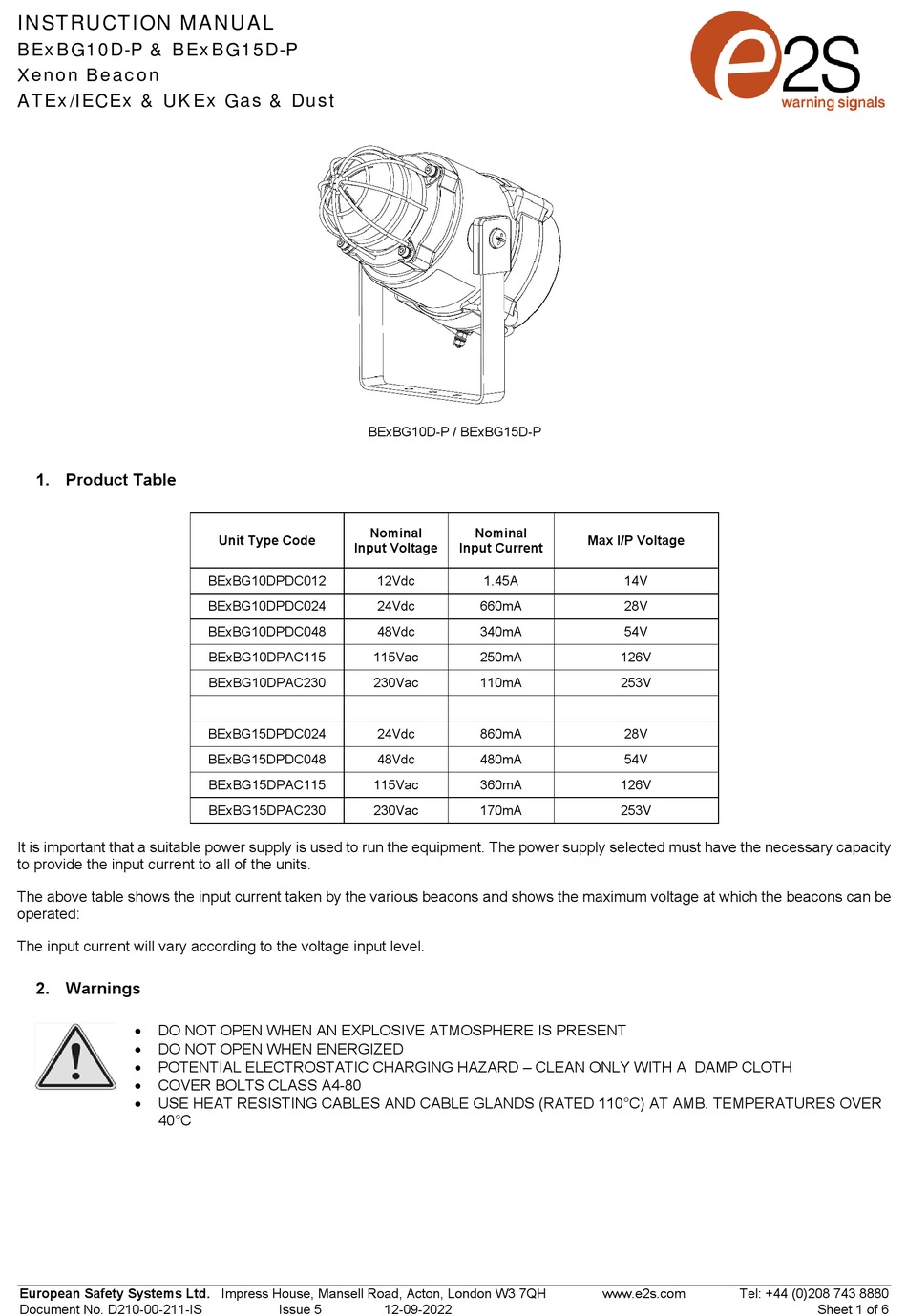

E2S BExBG10D-P Series Instruction Manual

INSTRUCTION MANUAL
BExBG10D-P & BExBG15D-P
Xenon Beacon
ATEx/IECEx & UKEx Gas & Dust
1. Product Table
It is important that a suitable power supply is used to run the equipment. The power supply selected must have the necessary capacity
to provide the input current to all of the units.
The above table shows the input current taken by the various beacons and shows the maximum voltage at which the beacons can be
operated:
The input current will vary according to the voltage input level.
2. Warnings

DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT

DO NOT OPEN WHEN ENERGIZED

POTENTIAL ELECTROSTATIC CHARGING HAZARD – CLEAN ONLY WITH A DAMP CLOTH

COVER BOLTS CLASS A4-80

USE HEAT RESISTING CABLES AND CABLE GLANDS (RATED 110°C) AT AMB. TEMPERATURES OVER
40°C
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D210-00-211-IS
BExBG10D-P / BExBG15D-P
Nominal
Unit Type Code
Input Voltage
BExBG10DPDC012 12Vdc
BExBG10DPDC024 24Vdc
BExBG10DPDC048 48Vdc
BExBG10DPAC115 115Vac
BExBG10DPAC230 230Vac
BExBG15DPDC024 24Vdc
BExBG15DPDC048 48Vdc
BExBG15DPAC115 115Vac
BExBG15DPAC230 230Vac
Issue 5
Nominal
Input Current
1.45A
660mA
340mA
250mA
110mA
860mA
480mA
360mA
170mA
12-09-2022
Max I/P Voltage
14V
28V
54V
126V
253V
28V
54V
126V
253V
www.e2s.com Tel: +44 (0)208 743 8880
Sheet 1 of 6
