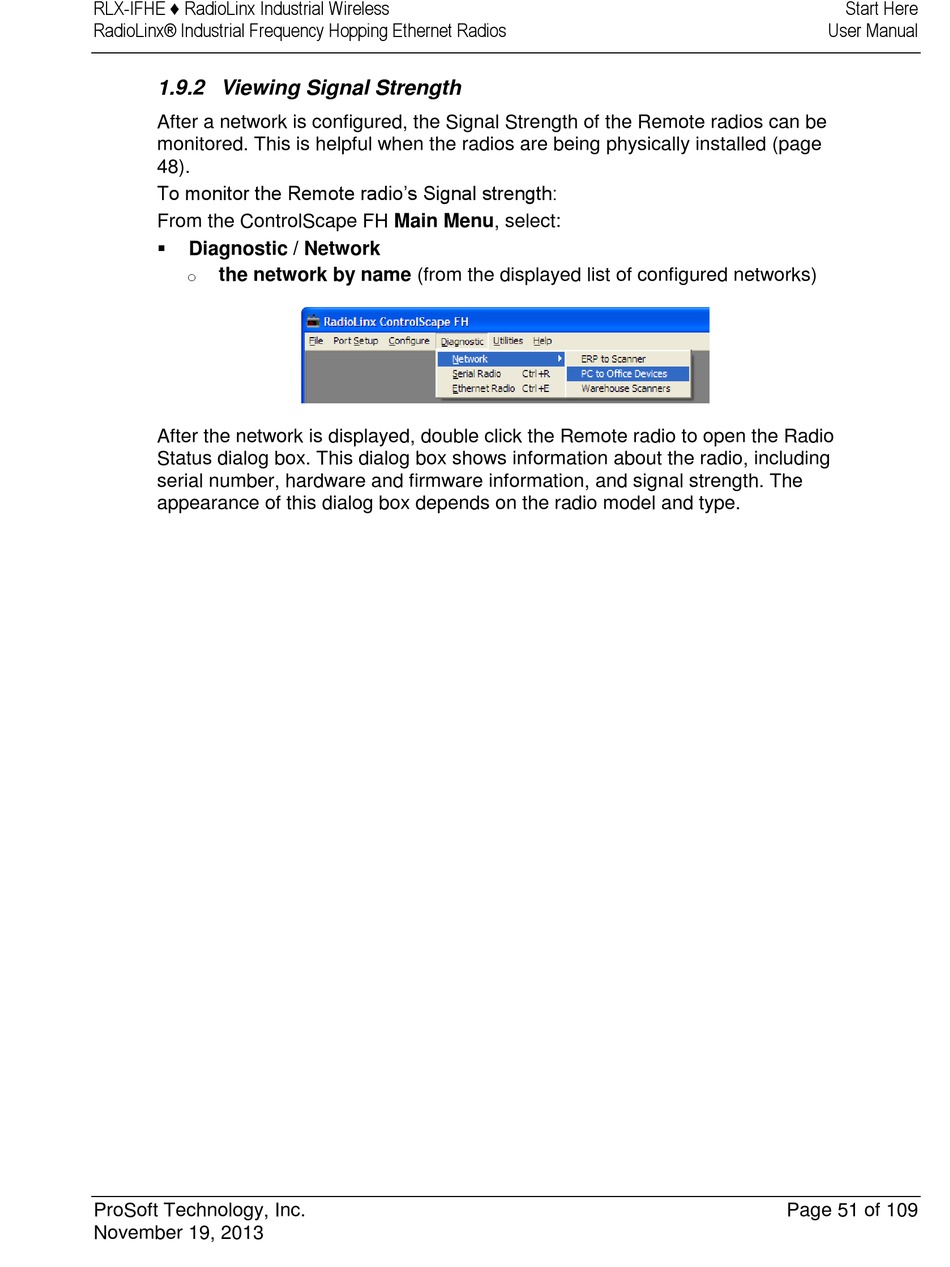

1.9.2 Viewing Signal Strength

After a network is configured, the Signal Strength of the Remote radios can be
monitored. This is helpful when the radios are being physically installed (page
48).
To monitor the Remote radio's Signal strength:
From the ControlScape FH Main Menu, select:

Diagnostic / Network
the network by name (from the displayed list of configured networks)
o
After the network is displayed, double click the Remote radio to open the Radio
Status dialog box. This dialog box shows information about the radio, including
serial number, hardware and firmware information, and signal strength. The
appearance of this dialog box depends on the radio model and type.
