Transfering the Configuration to the Master Radio

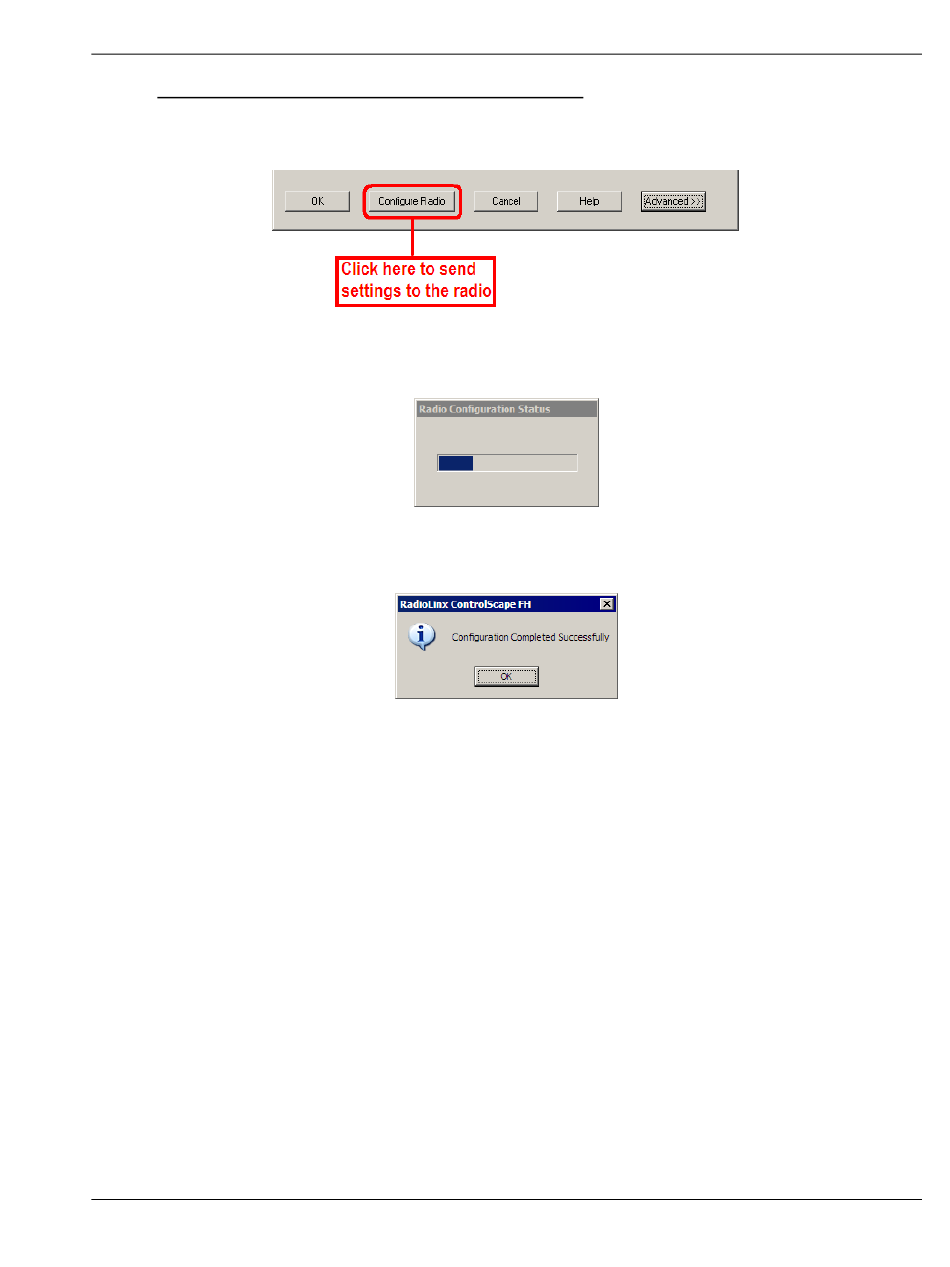

To send the new configuration settings to the Master radio, click the Configure
Radio button on the Radio Configuration dialog box.
ControlScape FH will display a progress indicator as it attempts to connect to the
radio.
When the configuration is completed successfully, the following message is
displayed.
When the configuration has been transferred successfully, ControlScape FH will
update the Radio Configuration dialog box with information retrieved from the
radio, including the radio's Serial Number and Last Date Configured.
