Smart Switched Ethernet
Smart Switched Ethernet (SSE) configuration creates a network suitable for any
communication pattern between the radios. It efficiently determines whether to

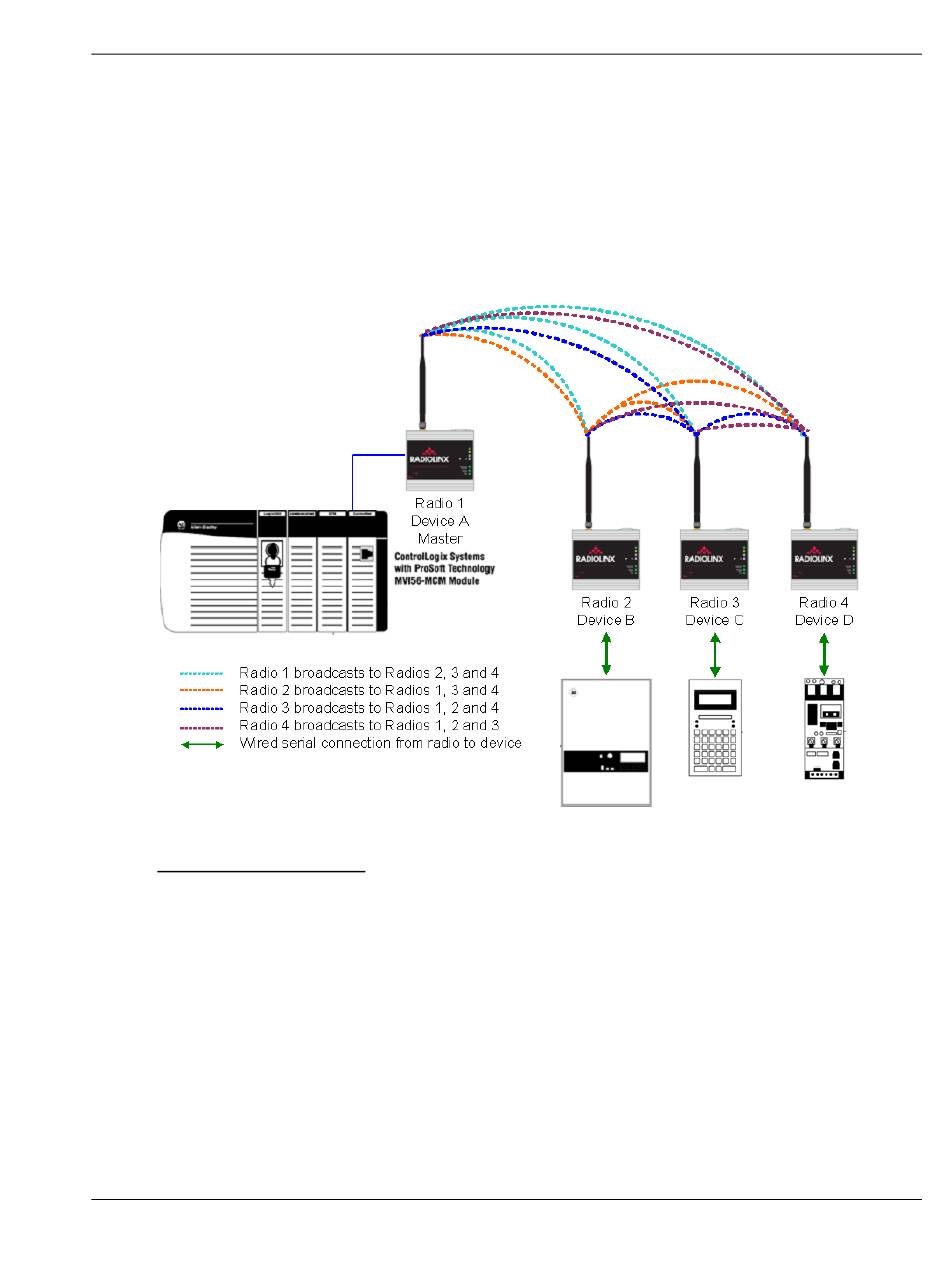

broadcast to all radios or direct to a single radio on a packet by packet basis. In
the following illustration, each radio is able to communicate with any or all other
radios.
Changing Network Type
Users now have the ability to change their network to either SSE or PTP
(assuming their network conforms to the PTP restrictions) from another network
type. This is done selecting Configure->Modify and clicking their network. Once
open in the configuration view, selecting Radio Network from the Properties
menu will bring up a Network Properties dialog. From this dialog they can
choose a new network type from the Network Type drop down box. This will
require reconfiguration of radio in the network and cannot be reversed to return
to any of the obsolete network types once the network file is saved.
