ProSoft Technology RadioLinx RLX-IFH E Series User Manual page 36

Start Here
User Manual

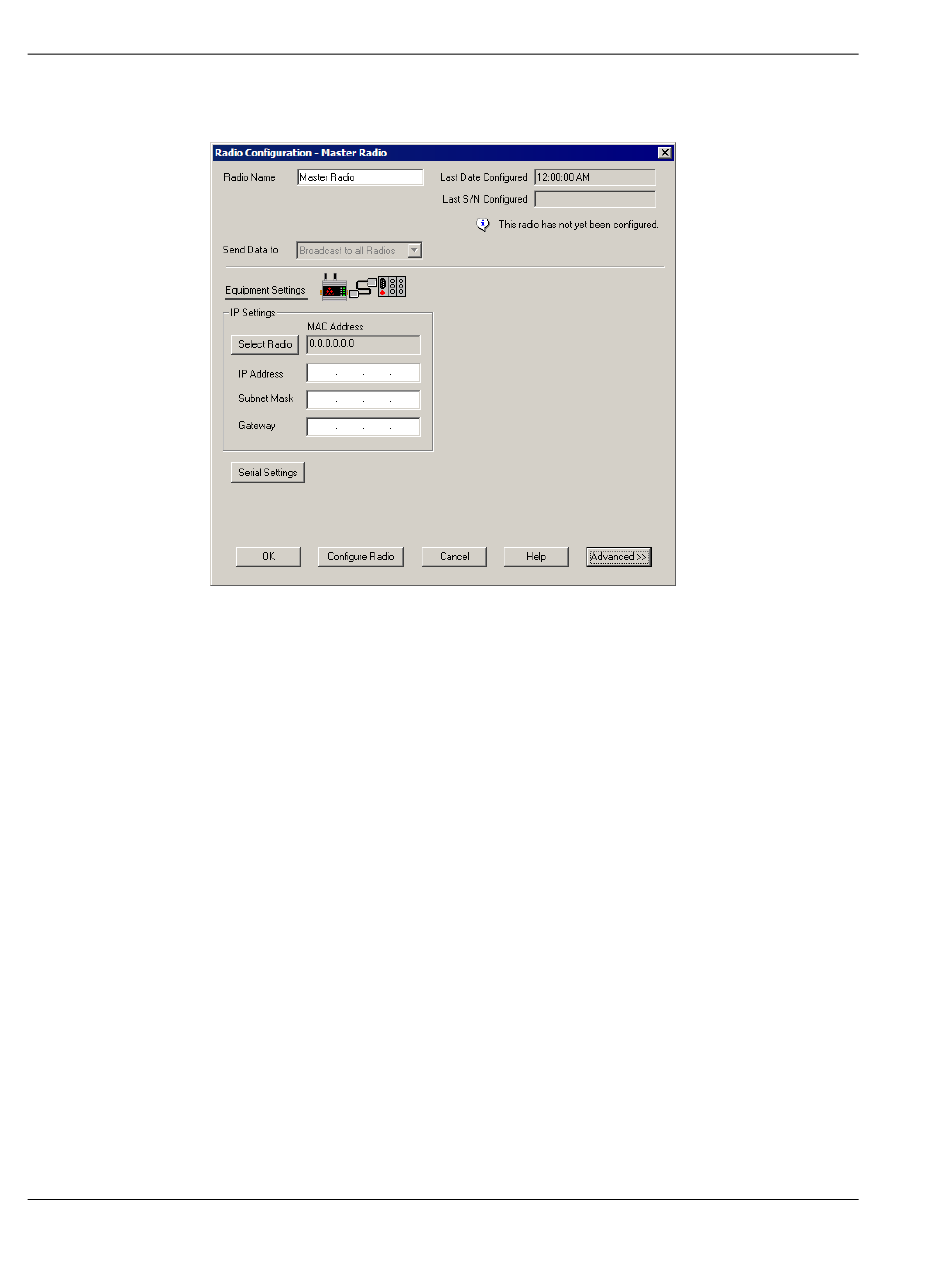

Double-click the left mouse button on the Master Radio to open the Radio
Properties dialog box.
Most of the settings on this dialog box are straightforward. The default settings
will work with many devices without modification, however you will need to assign
an IP address, subnet mask and default gateway for each radio on the network. If
you are using Serial Protocol Encapsulation (page 31) to transmit serial data over
the wireless network, you may also need to know the communication parameters
to use if the wired device requires different settings. This information is normally
available in the user manuals for the device.
