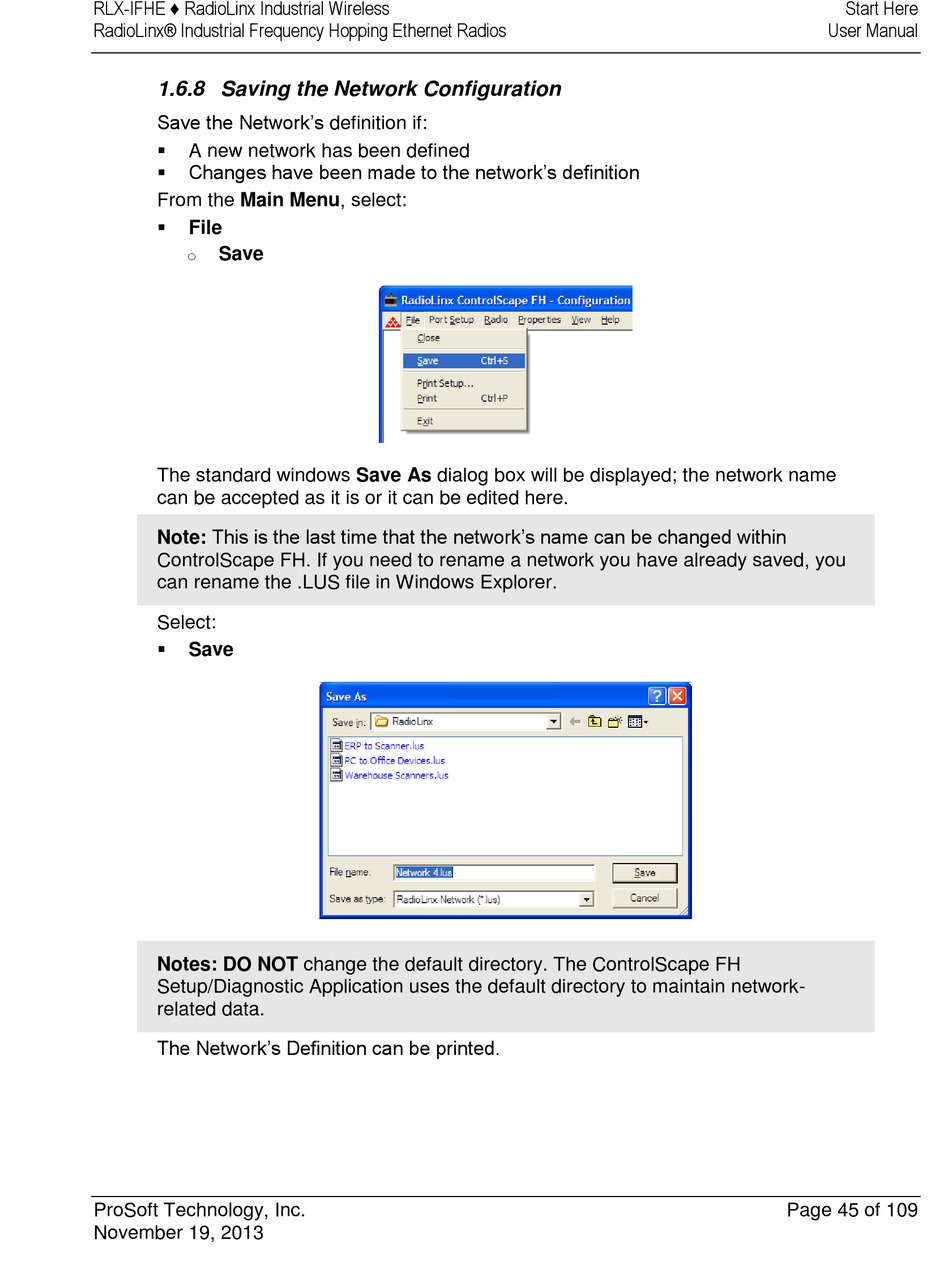

1.6.8 Saving the Network Configuration

Save the Network's definition if:

A new network has been defined
 Changes have been made to the network's definition
From the Main Menu, select:

File
Save
o
The standard windows Save As dialog box will be displayed; the network name
can be accepted as it is or it can be edited here.
Note: This is the last time that the network's name can be changed within
ControlScape FH. If you need to rename a network you have already saved, you
can rename the .LUS file in Windows Explorer.
Select:

Save
Notes: DO NOT change the default directory. The ControlScape FH
Setup/Diagnostic Application uses the default directory to maintain network-
related data.
The Network's Definition can be printed.
