Note: See When to Re-Configure Radios (page 47) to ensure all radios will be
updated.

1.6.6 Add Repeaters

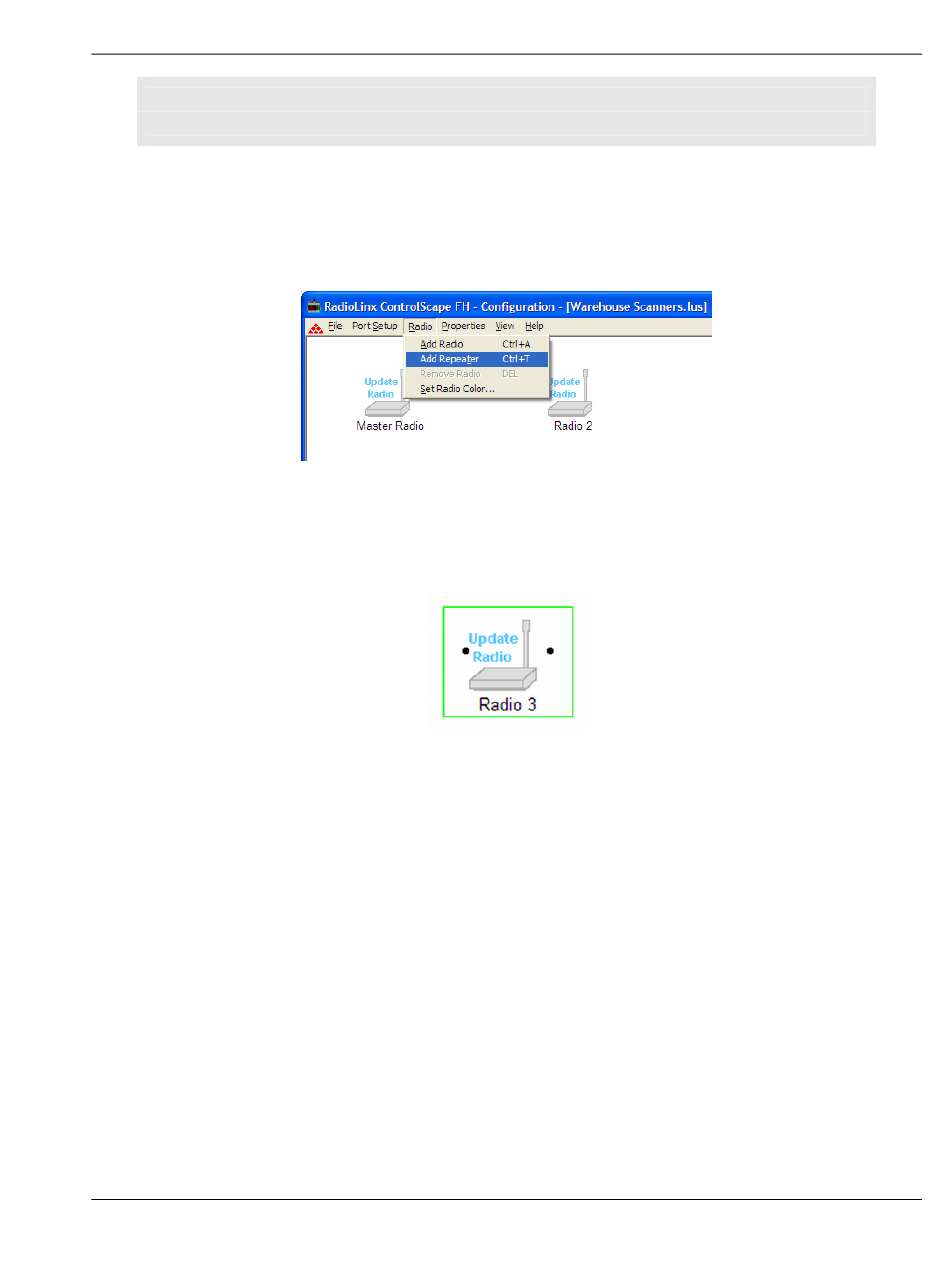

The following illustration shows how to Add a Repeater to the Network. After
selecting the add repeater function from the menu, a repeater icon will appear on
the Graphical User Interface (GUI).
The repeater radio will have a link point (black dot) on both the right and left side
of each repeater radio. The remote radio has only one link point located on the
left side of the radio. As with all new radios, it will show the radio needs to be
updated.
