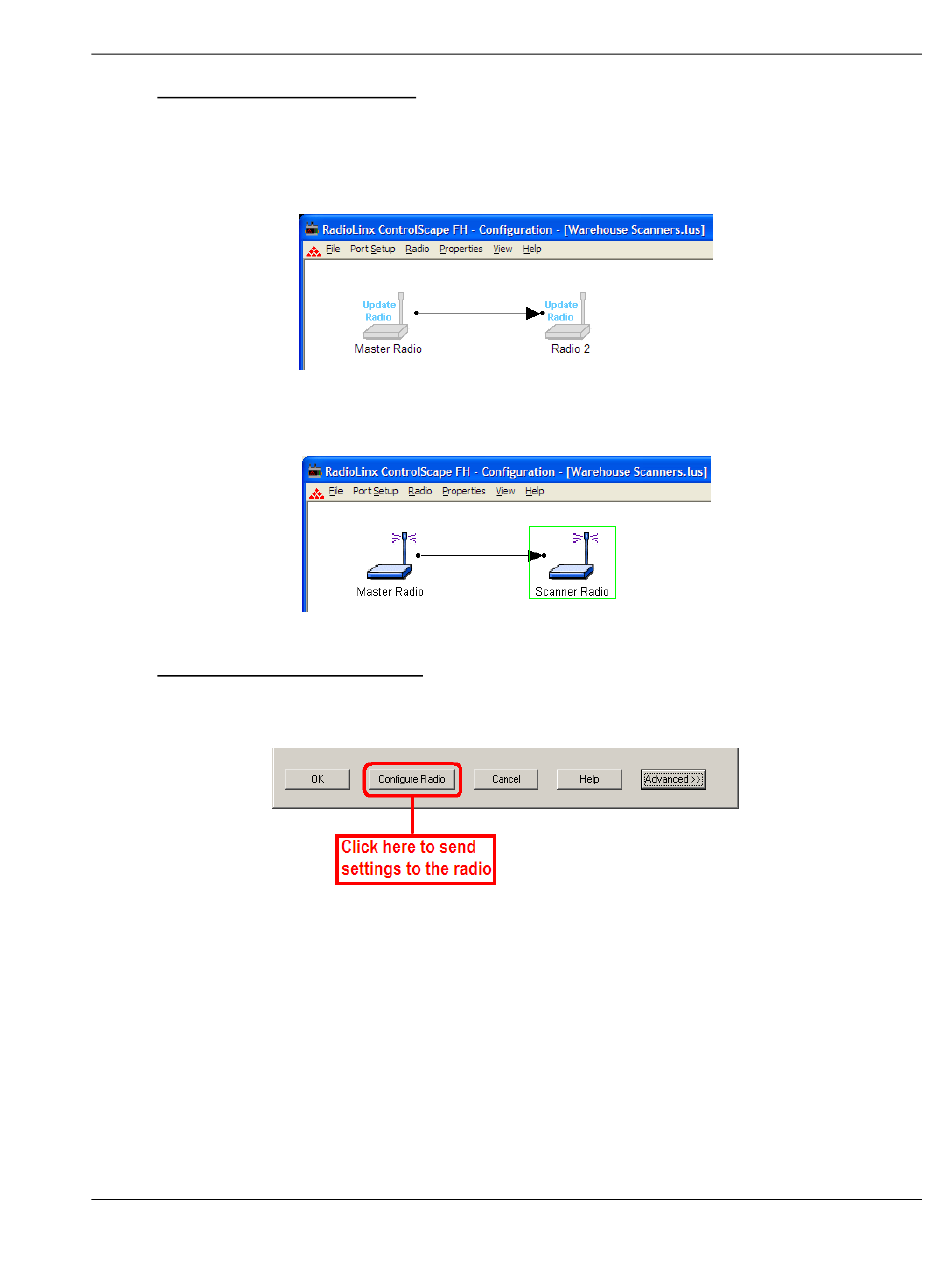

When to Re-Configure Radios
All radios need to be configured before initial installation in a network. In general,
after radios are functioning in a network, they do not need to be re-configured if
the network changes. The program will instruct when the radios need to be
configured, as illustrated below:
After all the radios are configured, the graphical layout will be displayed as
follows:
Reconfiguring a Remote Radio
To reconfigure the Remote radio(s), click the Configure Radio button on the
Radio Configuration dialog box.
Repeat these steps for each Remote radio on your network.
