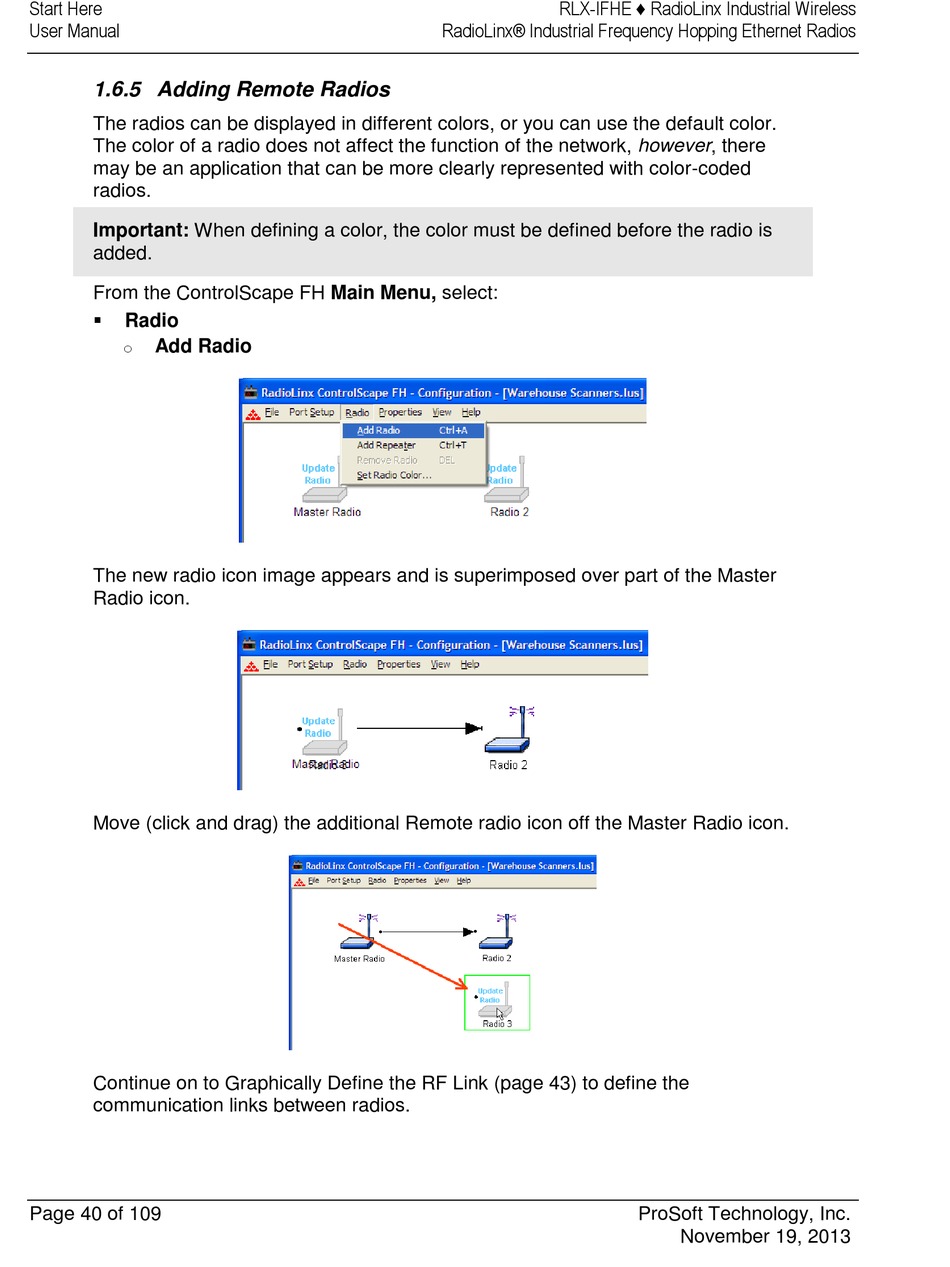

1.6.5 Adding Remote Radios

The radios can be displayed in different colors, or you can use the default color.
The color of a radio does not affect the function of the network, however, there
may be an application that can be more clearly represented with color-coded
radios.
Important: When defining a color, the color must be defined before the radio is
added.
From the ControlScape FH Main Menu, select:

Radio
Add Radio
o
The new radio icon image appears and is superimposed over part of the Master
Radio icon.
Move (click and drag) the additional Remote radio icon off the Master Radio icon.
Continue on to Graphically Define the RF Link (page 43) to define the
communication links between radios.
