Skull Reference Package

Introduction
The Skull Reference Package enables flexible patient reference tracking during
craniomaxillofacial procedures in combination with fluoro 3D or iCT. The patient does not need to
be immobilized to ensure tracking.
Components

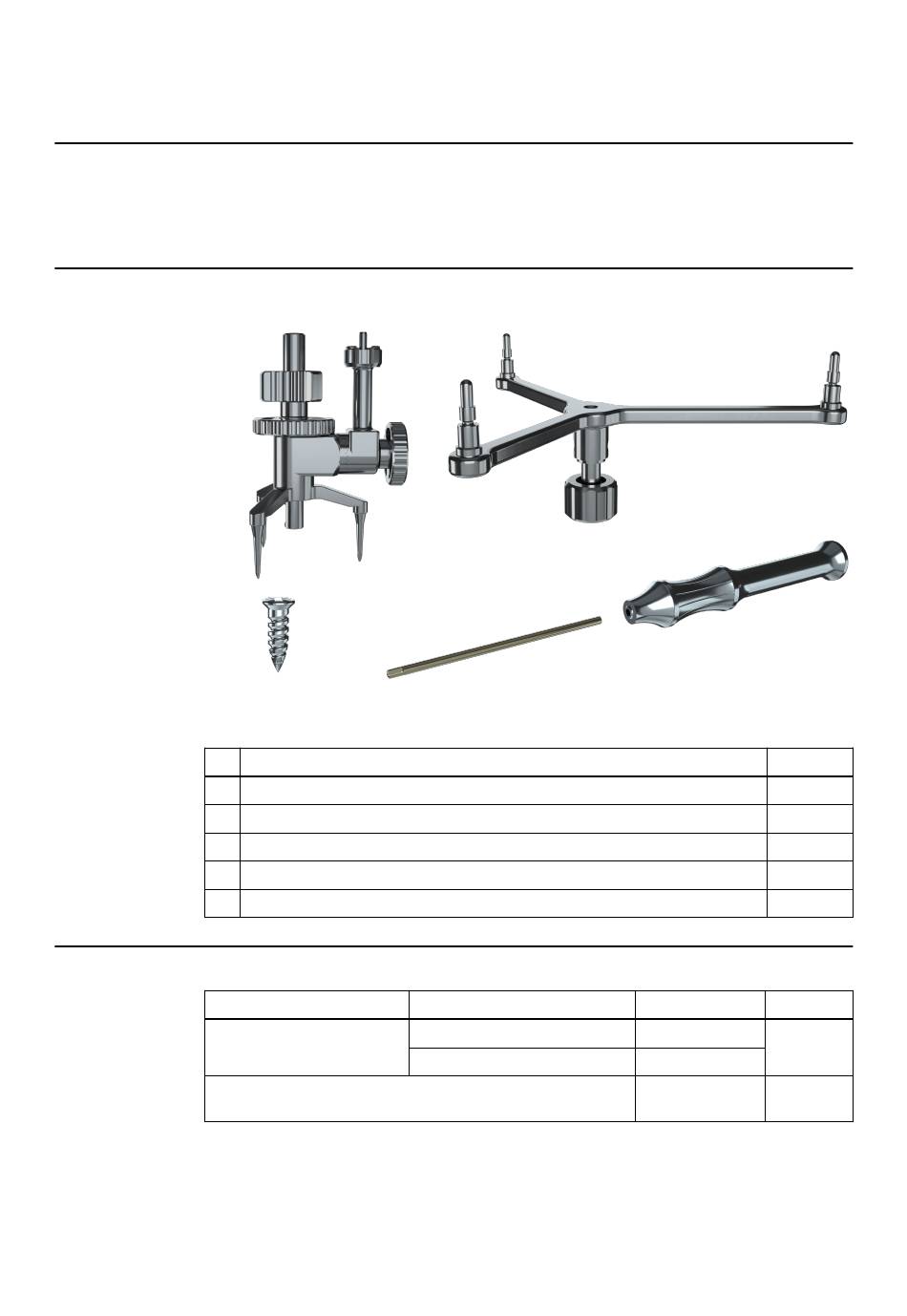

①
⑤
No. Component
① Skull Reference Base
② Skull Reference Array
③ Handle for Blades (KLS Martin)
④ Screwdriver Blade (KLS Martin)
⑤ Disposable KLS Martin Bone Fixation Screw 1.5 mm x 6 mm (5 PCS)
Sterility
Skull Reference Array
Disposable KLS Martin Bone Fixation Screw 1.5 mm x 6
mm (5 PCS)
NOTE: If only one reference array is used, all instruments and procedures must be applied in a
sterile environment.
Instrument User Guide Rev. 2.6 Cranial/ENT Optical Tracking
④
Figure 28
Use
Registration
Navigation
②
③
Article No.
52129
52122
52127
52171
52170
Instructions Article No.
May be unsterile
52122
Must be sterilized
Must be sterilized 52170
