ARCCAPTAIN CUT50 User Manual

Plasma cutter 50a
Hide thumbs Also See for CUT50:

Advertisement

Digital Welder Expert, Know You More
Plasma Cutter 50A
User Manual
www.arccaptain.com
https://www.arccaptain.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CUT50 and is the answer not in the manual?

Questions and answers

Summary of Contents for ARCCAPTAIN CUT50

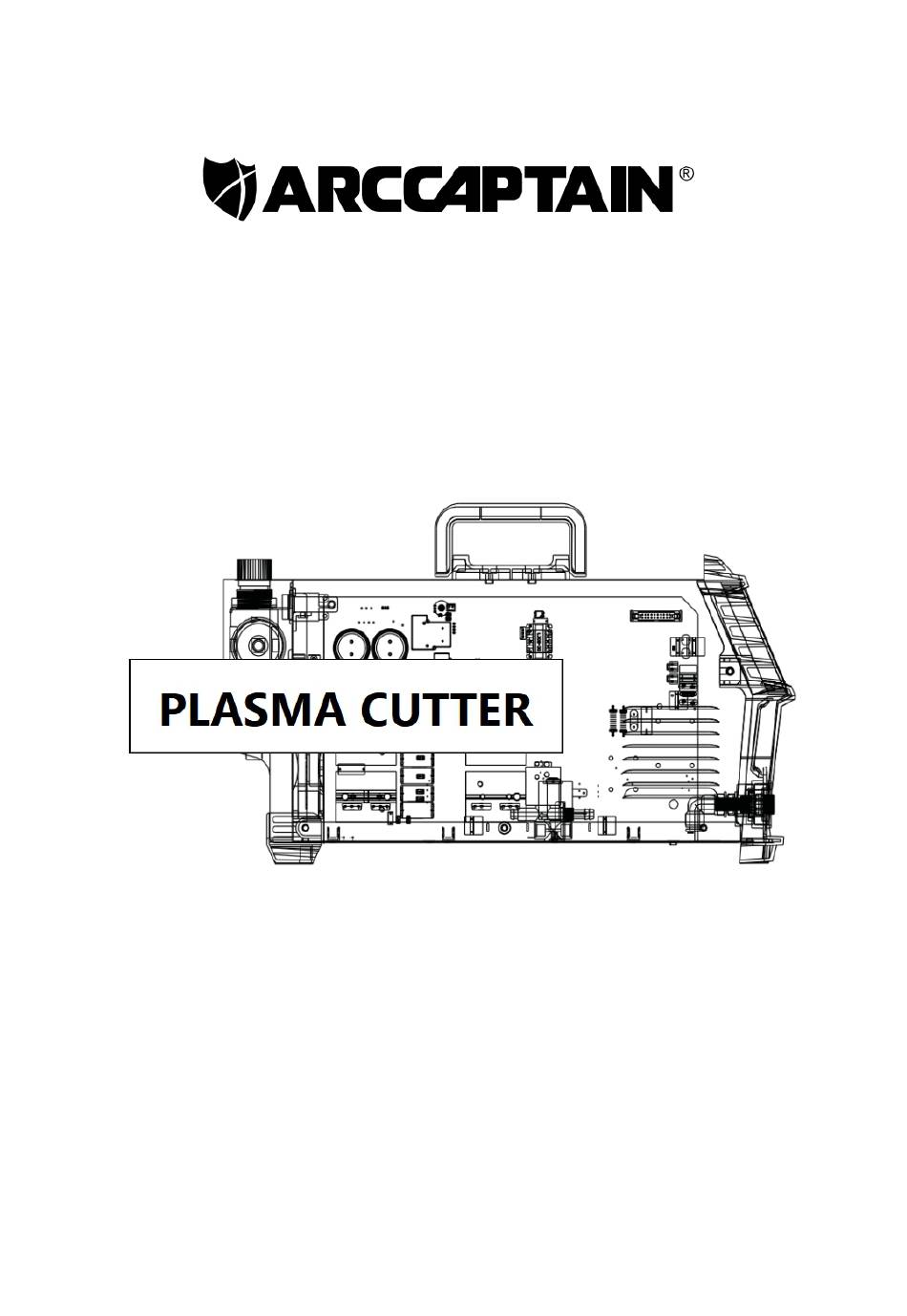

  • Page 1 Digital Welder Expert, Know You More Plasma Cutter 50A User Manual www.arccaptain.com https://www.arccaptain.com...
  • Page 2 Digital Welder Expert, Know You More Dear Valued Customer, Thank you very much for being our valued customer. ARCCAPTAIN welder was built by high quality components, every single unit machine was passed multiple industry leading laboratory tests to provide a great welding experience and performance.
  • Page 3: Table Of Contents

    3. INSTALLATION AND CONNECTION..........8 3.1 Installation requirements................8 3.2 Strap Installation..................10 4. OPERATION..................11 4.1 Panel functions of CUT50................11 4.2 Operation method..................12 4.3 Notes for cutting operation................. 12 4.4 Cutting parameters table................13 4.5 Replacement of electrode and nozzle............13 5.
  • Page 4: Safety

    Over current/over voltage/over heating protection circuit is installed in this machine. When the mains voltage, output current or inner temperature exceeds the set standard, the machine will stop automatically. However, excessive use (e.g. too high voltage) of machine may also damage the machine, so please note: https://www.arccaptain.com...
  • Page 5: Precautions For Operation

    Arc radiation-may hurt your eyes and burn your skin! Use proper mask and wear protective clothing to protect your  eyes and body. Use proper mask or curtain to protect onlooker from being  injured. https://www.arccaptain.com...
  • Page 6: Precautions For Discard

    Pay attention to the following when discarding the cutting machine: Burning the electrolytic capacitors in the main circuit or on the PCBs may cause an  explosion. Burning the plastic parts such as the front panel may produce poisonous gas.  Dispose it as industrial waste.  https://www.arccaptain.com...
  • Page 7: Product Description

    Digital Welder Expert, Know You More 2. PRODUCT DESCRIPTION 2.1 Technical parameters Models Items CUT50 Rated input power supply Single-phase AC110V 50Hz Single-phase AC220V 50Hz Rated input capacity (kVA) Power factor 0.63 Rated output (A/V) 35/94 50/100 Rated duty cycle (%)
  • Page 8: Composition And Configuration

    Digital Welder Expert, Know You More Pic 1 Appearance and size of the machine (Unit: mm /inch) 2.3 Composition and configuration 1) Composition Pic 2 Composition of the cutting machine system https://www.arccaptain.com...
  • Page 9: Functions And Characteristics

    It can be used in handle cutting and robot cutting as well. CUT50 can cut conductive metal, such as low carbon steel, stainless steel and aluminum. The cutting thickness can reach up to 3/4'' (20 mm),quality cutting thickness can reach up to 1/2'' (10mm), perforating thickness can reach up to 1/3'' (8 mm).
  • Page 10: System Characteristics

    60%. Using the cutting machine continuously overrunning the rated load may lead to overheating of the machine, and frequently using the machine overrunning the rated load may accelerate the aging of the machine or even burn the machine. Pic 3 Duty cycle https://www.arccaptain.com...
  • Page 11: Installation And Connection

    It clockwise to avoid gas leakage. Pic 5 Connection of earth cable Insert the quick plug on the earth cable into the output terminal “+” on the front panel of the machine, and tighten it clockwise. Pic 6 https://www.arccaptain.com...
  • Page 12 - Insert the other end of the electrode into the distributor. - Connect the nozzle with the electrode and distributor. - Connect the protective sleeve with the nozzle, screw it into the torch head, and tighten it. Pic 8 Installation of cutting torch head https://www.arccaptain.com...
  • Page 13: Strap Installation

    Step 5: Proper state after installation: 1. Strap does not twist; 2. Buckle side of shoulder pad is up, while its flat side faces the machine (as shown in the picture); 3. Straps are well locked.(See Pic 13) Pic 13 https://www.arccaptain.com...
  • Page 14: Operation

    Digital Welder Expert, Know You More 4. OPERATION 4.1 Panel Functions of CUT50 Part name Function Picture 1.Digital screen To display the cutting information 2. Operation mode button For 2T/4T cutting mode conversion 3. “+”Output terminal To connect the earth cable 4.
  • Page 15: Operation Method

    Keep the cutting cable away from edge tools. Clean up the spatters on the nozzle timely, for it will affect the cooling effect of the nozzle. Clean up the dust and spatters on the torch head after using everyday to ensure good cooling effect. https://www.arccaptain.com...
  • Page 16: Cutting Parameters Table

    Nozzles of different models are different, so ensure the nozzle is of the same model when replacing it. 1) Electrode wear>1.5mm 2) Distortion of the nozzle 3) Cutting speed declining, arc with green flame 4) Difficult in arc ignition 5) Irregular cut https://www.arccaptain.com...
  • Page 17: Maintenance

    Whether the machine enclosure has color fading or overheating problems; If abnormal, Whether the fan sounds normal when the machine is check Routine running; interior of the machine. Whether there is abnormal smell, abnormal vibration or noise when the machine is running. https://www.arccaptain.com...
  • Page 18: Periodic Check

    In order to protect the semiconductor components and PCBs from the static damage, please wear antistatic device or touch the metal part of the enclosure to remove static in advance before contacting the conductors and PCBs of the machine internal wiring. https://www.arccaptain.com...
  • Page 19: Troubleshooting

    HF 3) The mosfet or the optocoupler on the HF discharge rustling. board is damaged. 4) The input voltage is too low. The air pressure is overly high or overly low. Arc can not be ignited. https://www.arccaptain.com...
  • Page 20 Digital Welder Expert, Know You More https://www.arccaptain.com...
