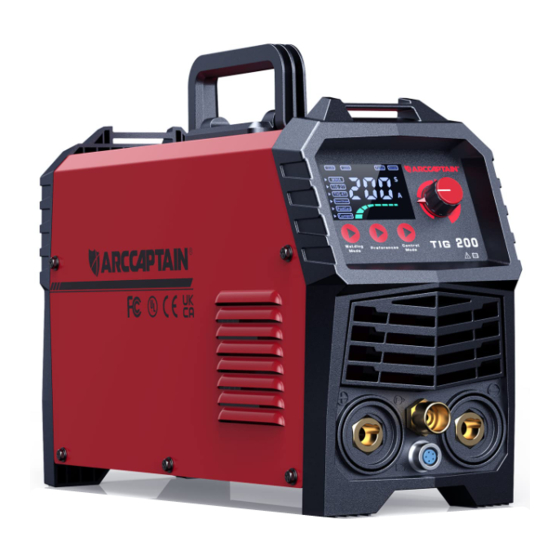

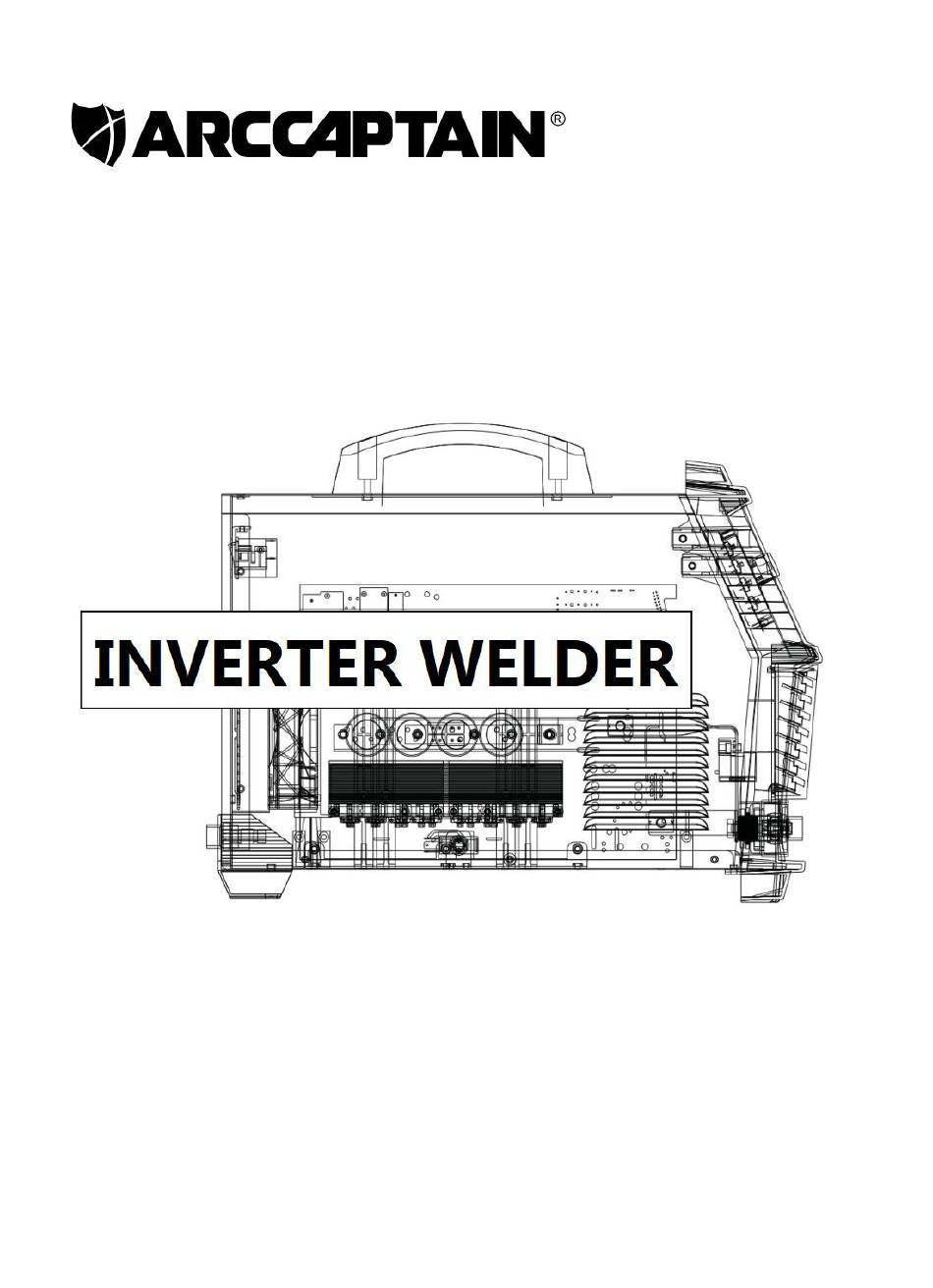

- Page 1 Digital Welding Expert, Know You More Inverter Welding Machine TIG200P ACDC User Manual www.arccaptain.com https://www.arccaptain.com...
- Page 2 For your safety, please read and understand this manual carefully before using this product. Your satisfaction is our priority! For any question or concerns, please do not hesitate to contact ARCCAPTAIN for SUPPORT : service@arccaptain.com www.arccaptain.com...
-
Page 3: Table Of Contents
7.1 Precautions ............................. 26 7.2 Maintenance ............................28 8. Trouble shooting ............................28 8.1 Common Malfunction Analysis and Solution ..................28 8.2 TIG Problems and Elimination ........................29 8.3 Welding Procedure Checklist (for reference only) ................. 30 8.4 SMAW Process Parameters ........................30 https://www.arccaptain.com... -
Page 4: Safety Precautions
When replacing the circuit board, ensure that the wiring is correct and the machine works normally; otherwise, it may cause property damage. Installation environment. https://www.arccaptain.com... -
Page 5: Operation Precautions
It is forbidden to use the machine for pipeline thawing. Hot weldments can cause severe burns Do not touch any hot surfaces or parts bare handed. Always allow the welding gun to cool down when using it continuously. https://www.arccaptain.com... -
Page 6: Scrap Disposal
New electrical structure and “Dust free” air passage can effectively prevent damage to power devices and control circuits from dust drawn in by the fan, thus greatly improving the reliability of the machine. Support remote control function, could match foot pedal/analog TIG torch. https://www.arccaptain.com... -
Page 7: Technical Parameters
When the ambient temperature is too high or the machine is used overloaded, the overheat protection can prevent the high temperature from damaging the welder. Support remote control The machine provides gun control and foot switch options for users to select as required. 3. Technical Parameters https://www.arccaptain.com... -
Page 8: Technical Parameters
(static) characteristic curve as shown in the right figure: U(V) Simple TIG has drop characteristic, TIG: U =10+0.04I and outputs the external (static) （≦34V) characteristic curve as shown in the right figure: I(A) https://www.arccaptain.com... -
Page 9: Function And Description
Pic 1 Pic 2 4.Power switch 4.2 TIG200PACDC Panel Pic 3 Plastic display panel Function table of plastic display panel Overheat indicator, indicating that the temperature of internal Protection components is too high and the welder displays overheat indicator protection. https://www.arccaptain.com... - Page 10 Post-flow time indicator. When the indicator is on, it indicates the delayed air-off time. AC frequency indicator. When the indicator is on, it indicates the AC frequency. AC balance indicator. When the indicator is on, it indicates the ratio of tungsten anode time to AC cycle. https://www.arccaptain.com...
- Page 11 3. Two-step indicator. When the indicator is on, it indicates that https://www.arccaptain.com...
-
Page 12: Functional Description
Warning! Select the welding function according to requirements. The welding mode and parameters should be selected according to the technical requirements of the weldment. If the welding mode or parameters are not appropriate, there will be unstable arc, big spatter, sticking electrode, etc. https://www.arccaptain.com... - Page 13 ● ● ● ● × ● ● ● ● pulse Four-st ● ● ● ● ● ● ● ● × ● ● ● ● Spot × × × × × × × × × × × × × welding https://www.arccaptain.com...
- Page 14 Uw is working voltage. When MMA is not working, the welder outputs the open circuit voltage is U 4.3.3 TIG Function 1) DC TIG Pic 5 Current change waveform of DC TIG t0-Pre-flow time I1-Initial current t1-Initial current period I2-Current corresponding to the up-slope time t2-Up-slope time https://www.arccaptain.com...
- Page 15 AC TIG and special material welding. 2) DC Pulse TIG Pic 6 Current change waveform of DC Pulse TIG I1-Initial current t0-Pre-flow time I2-Current corresponding to the up-slope time t1-Initial current period tb-Pulse base time I3-Set pulse current t2-Up-slope time tp-Pulse peak time https://www.arccaptain.com...
- Page 16 Its main function is to break the dense oxide layer of the workpiece, and the AC balance represents the proportion of the cleaning current. The parameter is generally 10-40%. When the value is small, the arc is concentrated, the fusion depth is large, and the fusion width is small, vice versa. https://www.arccaptain.com...
- Page 17 5) Welding Mode Description of TIG Welding Gun TIG operation mode has a special convention, which specifies the mode or method of controlling the welding current change by different operations of torch trigger during TIG (DC, pulse, AC TIG, mixed TIG) https://www.arccaptain.com...
- Page 18 Press the torch trigger to start the arc to the initial value Release the torch trigger to slowly rise to the peak value Press the torch trigger to slowly drop to the stopping arc Release the torch trigger to extinguish the arc https://www.arccaptain.com...
-
Page 19: Installation And Connection
2) Connect the power source to the suitable power distribution box according to the voltage grade of welder. Meanwhile, ensure that the supply voltage deviation is within the allowable range. 3) When extension cord is required, it is recommended to use cables with larger cross-sectional area to https://www.arccaptain.com... -
Page 20: Connection Of Power Distribution Box
5.3 Welder Installation Warning! All connections shall be made with the power supply being turned off. The correct steps are: first, ground the welder reliably and ensure correct wiring without missing correction; and then connect the input power cable. 1)MMA Installation https://www.arccaptain.com... - Page 21 The welding output line cannot be coiled, as this will cause the machine to work abnormally. Select the corresponding tungsten electrode according to the current, and start welding by lift TIG or high-frequency arc starting. https://www.arccaptain.com...
-
Page 22: Function And Operation
It is generally used for welding aluminum, titanium, copper and their low alloy steels, stainless steels and heat resistant steels, etc. Because of these outstanding characteristics of TIG, with the increasing product structure of non-ferrous https://www.arccaptain.com... - Page 23 Chemical mechanical cleaning: First use chemical cleaning, and then use mechanical cleaning at the welding parts before welding. This combined cleaning method is suitable for weldments with higher quality requirements. https://www.arccaptain.com...
- Page 24 The larger the diameter of the effective protection zone, the better the protection effect. Effective protection zone Melting zone Oxidation zone (a) Good protection effect (b) Bad protection effect https://www.arccaptain.com...
- Page 25 1. Control requirements of gas: It is required that the gas is supplied first and exhausted last. Argon is an inert-gas which is easy to be broken down. First fill argon between the workpiece and the electrode needle, which is conducive to arc starting; after welding, keeping on supplying argon can prevent the workpiece from https://www.arccaptain.com...
-
Page 26: Mma Introduction
Pic 15 Common MMA tools a) Electrode holder: It is a tool holding the electrode and conducting current. 300A and 500A are the most https://www.arccaptain.com... - Page 27 2 to 4 mm, and the arc is ignited. If the welding electrode contacts the weldment face without arcing, it is often that the end of the welding electrode has a covering that hinders the conduction. At this time, https://www.arccaptain.com...
- Page 28 Also note that the current should be appropriate, the welding electrode must be aligned, the arc must be low, the welding speed must be even rather than too fast. https://www.arccaptain.com...
-
Page 29: Precautions & Maintenance
Welder lifting method: The welder can be lifted by fork lift or crane. As the welder is not equipped with lifting rings, special attention should be paid to fixing method when using crane for lifting. https://www.arccaptain.com... - Page 30 21. There should be windproof measures in windy workplaces, otherwise it will blow away the protective gas and form gas pores. 22. Clean the oil, rust, paint, water and other conductive substances attaching on the base metal surface to be welded; otherwise, it will become pores and cracks, and cannot obtain good welding effect. https://www.arccaptain.com...
-
Page 31: Maintenance
· Check if the power cord is connected well. If the · Power input phase The LED problem still exists, please contact the after-sales loss; department of the company. display shows "EXX" · It will automatically recover after the welder is · Overheat protection cooled https://www.arccaptain.com... -
Page 32: Tig Problems And Elimination
· Clean the surface impurities of workpiece gun is abnormal · There are impurities on the workpiece surface The tungsten needle becomes · The tungsten needle is · Delay the post-flow time black after burnt out quenching of arc https://www.arccaptain.com... -
Page 33: Welding Procedure Checklist (For Reference Only)
90~120 0.12 90~120 7~10 0.28-0.4 0.16 120~160 0.12 90~120 Vertical 0.16 120~160 butt weld 0.12 90~120 0.16 120~160 ≥0.43 ≥11 0.12 90~120 0.16 120~160 160~200 0.12 90~120 12~18 0.16 120~160 0.48-0.71 0.16 120~160 ≥19 ≥0.75 0.12 90~120 0.16 120~160 https://www.arccaptain.com... - Page 34 220~280 0.08 0.08 50~60 0.12-0.16 0.12 90~120 0.12 90~120 Fillet weld 0.2-0.31 in th 0.16 120~160 evertical 0.12 90~120 0.36-0.48 9~12 0.16 120~160 position 0.16 12~0160 0.12 90~120 0.16 120~160 0.12 90~120 0.16 120~160 Fillet weld 0.08 0.08 50~60 https://www.arccaptain.com...
- Page 35 The welding bead becomes narrow The bead becomes short The welding The welding speed is The depth of penetration and excess The depth of penetration current is too too fast weld metal becomes greater and excess weld metal large becomes smaller https://www.arccaptain.com...
