Summary of Contents for ARCCAPTAIN MIG130

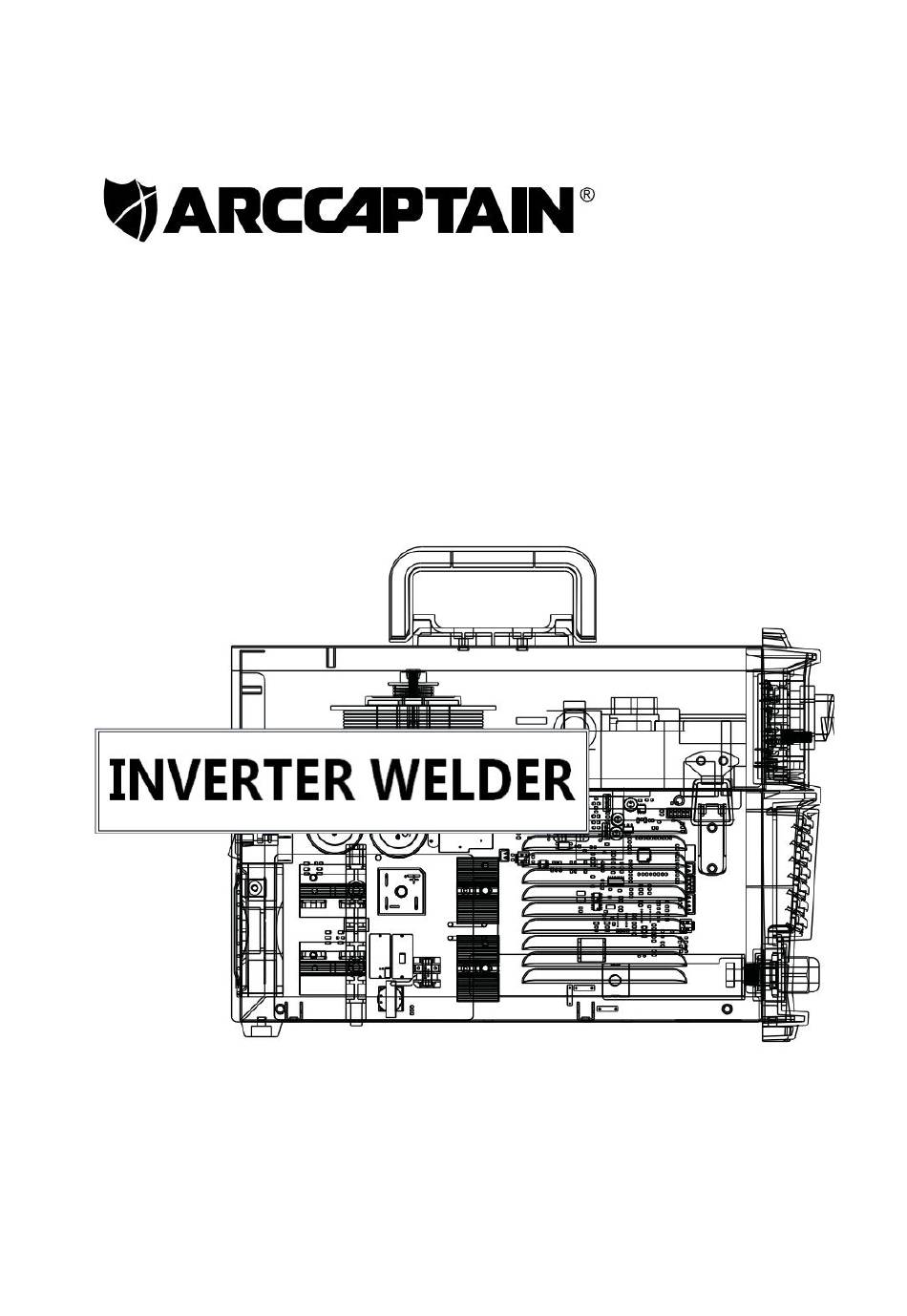

  • Page 1 Digital Welder Expert, Know You More Inverter Welding Machine MIG130 User Manual www.arccaptain.com https://www.arccaptain.com...
  • Page 2 Digital Welder Expert, Know You More Dear Valued Customer, Thank you very much for being our valued customer. ARCCAPTAIN welder was built by high quality components, every single unit machine was passed multiple industry leading laboratory tests to provide a great welding experience and performance.
  • Page 3: Table Of Contents

    3.2 Input Power Connection ..................6 3.3 Features........................7 3.4 Wire Loading and Threading................8 4. OPERATION ........................ 10 4.1 Installation Setup For MIG with Gas less for MIG130 ........11 4.2 FCAW Basic Welding Technique ...............13 4.3 Basic MIG Welding ....................13 4.4 Travel Speed ......................15 4.5 MMA and TIG Installation ...................
  • Page 4: Safety

    Do not weld air-tight container.  Do not use this machine for pipe unfreezing  Weld materials can burn. Do not touch hot work piece with bare hands.  Cool the welding torch after continuously working.  https://www.arccaptain.com...
  • Page 5 If you are still in lost, or you still cannot solve the problem,  please contact the service center for professional support. Symbol Description Cautions in operation Items need special instruction It’s forbidden to dispose electric waste with other ordinary waste. Please take care of our environment. https://www.arccaptain.com...
  • Page 6: Introduction

    , hammers, etc., to nu-crate the unit. 2.3 Description This MIG130 takes the guess work out of welding with an impressive SYNERGIC SET function that allows the user to weld like a Pro with no previous welding experience necessary.
  • Page 7: Specifications

    Digital Welder Expert, Know You More 2.5 Specifications Models Items MIG130 Single-phase AC110V Rated input voltage 50Hz/60Hz Rated input power (KVA) Welding current 20-130A range (MIG,MMA,TIG) 16-20.5V (MIG) Welding voltage range (MIG,MMA,TIG) 20.8-25.2V(MMA) 10.8V-15.2V(TIG) Rated duty cycle No-load voltage (V) 0.8/0.9/1.0mm...
  • Page 8: Installation

    The high frequency generator being similar to a radio transmitter may cause interference to radio, TV and other electronic equipment. These problems may be the result of radiated interference. Proper grounding methods can reduce or eliminate this. https://www.arccaptain.com...
  • Page 9: Input Power Connection

    • The MIG130(N2HAB) is provided with a 110V cables,2.0M in length, with a 16Amp 5-15P plug molded onto the cord; • The MIG130(N2A9) is provided with a 230V cables, 2.0M in length, with a 16Amp 5-15P plug molded onto the cord.
  • Page 10: Features

    [3]Operation interface Description 1.Positive Welding Terminal(+) 2.Negative Welding Terminal(-) 3. Synergic knob 4.Welding mode button 5.Wire selection button 6.Display Meter 7.MIG Torch 8.Power Switch 9. Cooling FAN 10. Power Input Cable 11.Welding mode MIG/MMA/TIG LED 12.Wire selection 0.8/0.9/1.0 LED https://www.arccaptain.com...
  • Page 11: Wire Loading And Threading

    Start with the pressure set to an intermediate value. Readjust, if necessary.If the drive roll slips while feeding wire , the pressure should be increased until the wire feeds properly. https://www.arccaptain.com...
  • Page 12 12) Install the nozzle and contact tip. Refer to Figure 4. Cut the wire off so the 3/8” to 5/8”(10-15mm) protrudes from the end of the tip. 13) Turn on the machine . The machine is now ready to weld. https://www.arccaptain.com...
  • Page 13: Operation

    Although the removal of the particulate matter from welding smoke may reduce the ventilation requirement, concentrations of the clear exhausted fumes and gases may still be hazardous to health. Avoid breathing concentrations of these fumes and gases. Use adequate ventilation when welding. ----------------------------------------------------------------------------------------- https://www.arccaptain.com...
  • Page 14: Installation Setup For Mig With Gas Less For Mig130

    [15] Select the correct sized wire diameter. [16] Select welding parameter required on ‘ synergic’ knob, based on the material ,thickness of the work piece. [3/4]Connect earth [2] Connect it to [1] Power Switch lead to + the negative socket https://www.arccaptain.com...
  • Page 15 Flux core / Gas less wire don’t use for a long time(more than 3days) need to store sealed. The recommended electrode for the flux-cord, self-shielded process are 0.8 or 0.9mm diameter spools. Flux-cord wire is excellent for single-pass lap,fillet and butt welding of thin gauged galvanised and mild steels. https://www.arccaptain.com...
  • Page 16: Fcaw Basic Welding Technique

    Gun position or technique usually refers to how the wire is directed at the base metal, the angle and travel direction chosen.Travel speed and work angle will determine the characteristic of the weld bead profile and degree of weld penetration. https://www.arccaptain.com...
  • Page 17 3) Angle to Work The work angle is the forward back angle of the gun relative to the work piece.The correct work angle provides good bead shape, prevents undercut, uneven penetration, poor gas shield and poor quality finished weld. https://www.arccaptain.com...
  • Page 18: Travel Speed

    This produces a wider weld bead with more deposited weld metal per mm than is required resulting in a weld deposit of poor quality. 3) Correct Travel Speed https://www.arccaptain.com...
  • Page 19: Mma And Tig Installation

    7) Insert the cable plug with TIG Welding torch into the “--” socket on the front panel of the welding machine, and tighten it clockwise. 8) Insert the cable plug with earth clamp into the “+” socket on the front panel of the welding machine, and tighten it clockwise. https://www.arccaptain.com...
  • Page 20: Maintenance

    2) Do daily checking according to the table below, and clean or replace components when necessary. 3) In order to ensure the high performance of the machine, please choose components provided or recommended by producer when replacing components. https://www.arccaptain.com...
  • Page 21: Periodic Check

    Due to the discharge of capacitors, checking should be carried out 5 minutes after the machine is powered off. https://www.arccaptain.com...
  • Page 22 Generally, periodic check should be carried out every 6 months, and it should be carried out every 3 months if the welding environment is dusty or with heavy oily smoke. https://www.arccaptain.com...
  • Page 23: Strap Installation

    Step 4: Proper state after installation: 1. Strap does not twist; 2. Buckle side of shoulder pad is up, while its flat side faces the machine (as shown in the picture); 3. Straps are well locked. https://www.arccaptain.com...
  • Page 24: Troubleshooting

    If you do not understand or are unable to perform the Recommended Course of Action safely, contact your local after-sales service center. 4) Electric Shock can kill Turn off machine at the disconnect switch on the rear of the machine and remove main power supply connections before doing any troubleshooting. https://www.arccaptain.com...
  • Page 25 The torch trigger fails. Repair or replace the welding torch. torch trigger and the alarm indicator does not illuminate. When the torch The earth cable is not well Reconnect it. trigger is pushed, connected with the there is gas output, workpiece. https://www.arccaptain.com...
  • Page 26 The contact tip of the welding Replace it. torch is badly worn. The wire-feeding tube of the Replace it. welding torch is badly worn. The electrode is of poor Use electrode of good quality. quality. WIRING DIAGRAM https://www.arccaptain.com...
  • Page 27 Digital Welder Expert, Know You More https://www.arccaptain.com...
