Ingersoll-Rand ARO PX15P A Series Operator's Manual

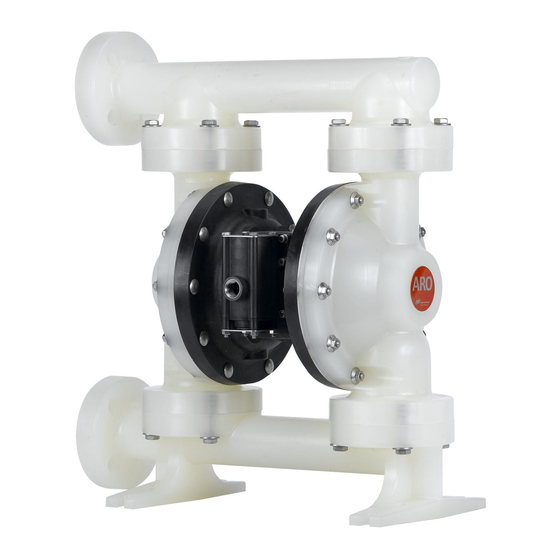

1-1/2" diaphragm pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

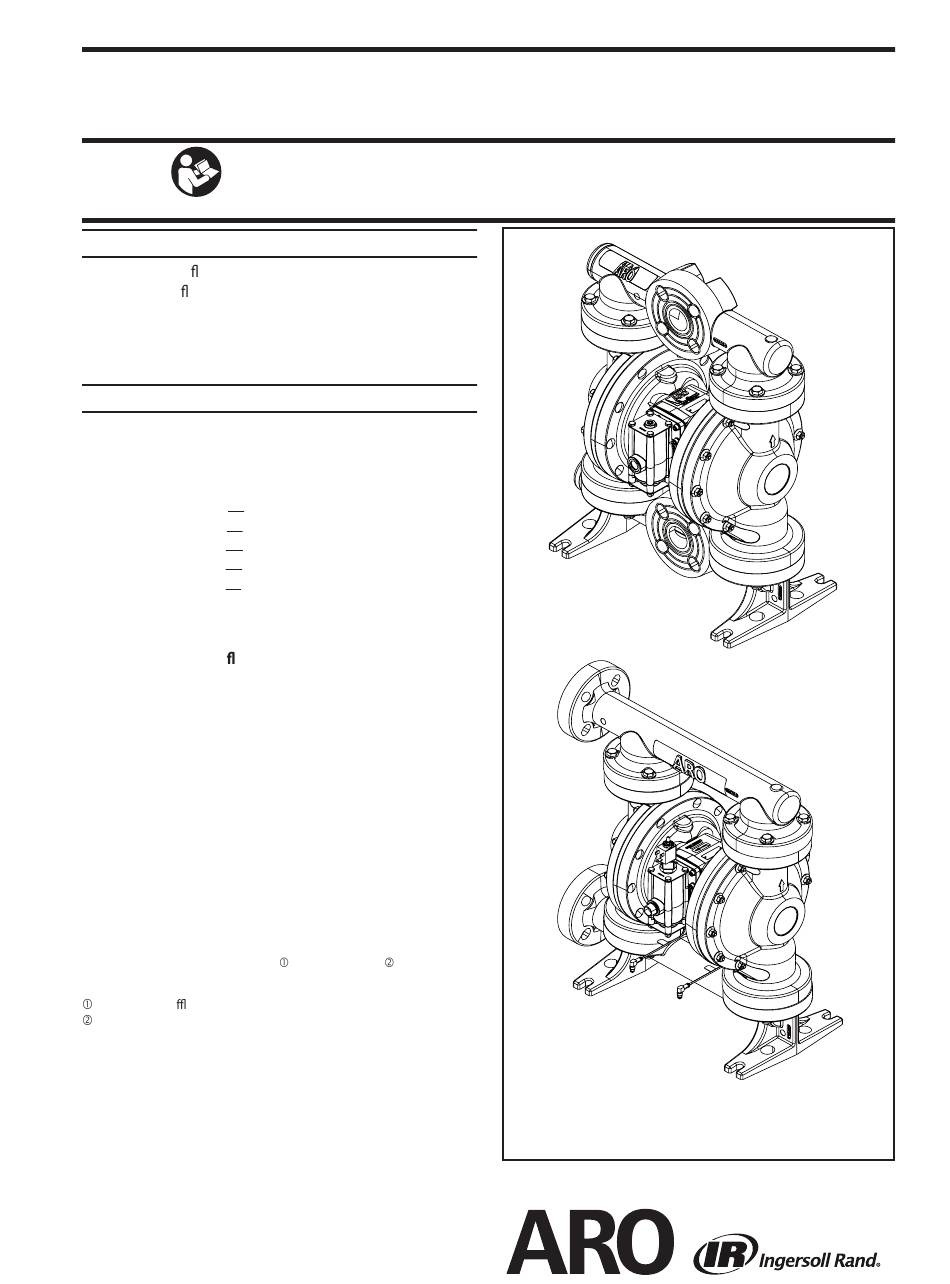

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
637391-XXX for uid section repair with seats (see page 5).
637391-XX for uid section repair without seats (see page 5).
NOTE: This kit also contains several air motor seals which will
need to be replaced.
637389 for air section repair (see page 7).
637390-X major air valve assembly (see page 8).
PUMP DATA
Models . . . . . . see Model Description Chart on page 2 for
"-XXX" options
Pump Type . . Non-Metallic Air Operated Double Diaphragm
Material . . . . . see Model Description Chart
Weight . . . . . . PX15P-FKS-XXX-AXXX. 63.94 lbs (29.00 kgs)
PX15P-FPS-XXX-AXXX . 42.60 lbs (19.32 kgs)
PX15P-YKS-XXX-AXXX . 55.94 lbs (25.37 kgs)
PX15P-YPS-XXX-AXXX . 42.30 lbs (19.19 kgs)
PX15E-FES-XXX-AXXX . 43.14 lbs (19.57 kgs)
Maximum Air Inlet Pressure . . . . . . . . 120 psig (8.3 bar)
Maximum Material Inlet Pressure . . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 120 psig (8.3 bar)
Maximum Flow Rate ( ooded inlet) . 123.1 gpm (465.9 lpm)
Displacement / Cycle @ 100 psig . . . . 0.617 gal (2.34 ltrs)
Maximum Particle Size . . . . . . . . . . . . . 1/4" dia. (6.4 mm)
Maximum Temperature Limits (diaphragm / ball / seat
material)
E.P.R / EPDM . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Hytrel® . . . . . . . . . . . . . . . . . . . -20° to 180° F (-29° to 82° C)
Nitrile® . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Polypropylene . . . . . . . . . . . . 35° to 175° F (2° to 79° C)
Kynar® PVDF . . . . . . . . . . . . . . 10° to 200° F (-12° to 93° C)
Santoprene® . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE. . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Viton® . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 10
Mounting Dimensions . . . . . . . . . . . . . . 8.687" x 14.937"
Noise Level @ 70 psig, 60 cpm . . . . . . 81dB(A)
Tested with mu er 93139 assembly installed.
The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (LA
S1.13-2005, CAGI-PNEUROP S5.1. using four microphone locations.
1-1/2" DIAPHRAGM PUMP
1:1 RATIO (NON-METALLIC)
OPERATING OR SERVICING THIS EQUIPMENT.
(220.7 mm x 379.4 mm)
) to meet the intent of ANSI
eq
PX15P-XXX-XXX-AXXX
Model PD15X
Model PE15X
Figure 1
RELEASED:
9-5-03
REVISED:
8-31-17
(REV: T)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARO PX15P A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ingersoll-Rand ARO PX15P A Series

Summary of Contents for Ingersoll-Rand ARO PX15P A Series

  • Page 1 OPERATOR’S MANUAL PX15P-XXX-XXX-AXXX INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE RELEASED: 9-5-03 REVISED: 8-31-17 1-1/2" DIAPHRAGM PUMP (REV: T) 1:1 RATIO (NON-METALLIC) READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference. SERVICE KITS 637391-XXX for uid section repair with seats (see page 5).

  • Page 2: Model Description Chart

    MODEL DESCRIPTION CHART Model Code Explanation Example: PX15 Model Series PD15- Standard Pump PE15- Electronic Interface Center Body Material E - Conductive Polypropylene P - Polypropylene Fluid Connection 1-1/2” ANSI / Din Flange / End 1-1/2” ANSI / Din Flange / Center Fluid Caps &...

  • Page 3: Operating And Safety Precautions

    OPERATING AND SAFETY PRECAUTIONS READ, UNDERSTAND, AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE EXPLOSION HAZARD.Models containing WARNING EXCESSIVE AIR PRESSURE HAZARDOUS MATERIALS aluminum wetted parts cannot be used with III.- STATIC SPARK HAZARDOUS PRESSURE Trichloroethane,Methylene Chloride or other Halogenated Hydrocarbon solvents which may react WARNING EXCESSIVE AIR PRESSURE.

  • Page 4: General Description

    Kynar® is a registered trademark of the Arkema Inc. Loctite® and 242 are registered trademarks of the Henkel Loctite Corporation ARO® is a registered trademark of Ingersoll-Rand Company Santoprene® is a registered trademark of Monsanto Company, licensed to Advanced Elastomer Systems, L.P.
  • Page 5 PARTS LIST / PX15X-XXX-XXX-AXXX Fluid Section Service Kits (637391-XXX OR 637391-XX) For Fluid Kits With Seats: 637391-XXX Fluid section service kit includes: Seats (see SEAT Option, refer to -XXX in chart below), Balls (see BALL Option, refer to -XXX in chart below), Diaphragms (see DIAPHRAGM Option, refer to -XXX in chart) and item 19, 33, 70, 144, 175 and 180 (listed below) plus items 174 and 94276 Lubriplate®...
  • Page 6 PX15P-XXX-XXX-AXXX / FLUID SECTION (PX15P-FXS-XXX-AXXX) (PX15P-YXS-XXX-AXXX) COLOR CODE Diaphragm Ball Material Color Color Hytrel Cream Cream • Nitrile Black Red( Santoprene Green Santoprene (Backup) White White PTFE • Yellow(-) Yellow( Viton • (-) Dash ) Dot 74 144 8 Santoprene 7 PTFE (PX15P-YXS-XXX-AXXX) (PX15P-FXS-XXX-AXXX)

  • Page 7: Major Valve Disassembly

    PARTS LIST / PX15P-XXX-XXX-AXXX AIR SECTION PARTS Indicates parts included in 637389 Air Section Service Kit shown below and items (70), (144), (175) and (180) shown on page 5. Item Description Part no Qty [Mtl] Item Description Part no Qty [Mtl] 97032 [GP] Center Body...
  • Page 8 PX15P-XXX-XXX-AXXX / AIR SECTION PILOT VALVE PARTS GROUP Notch Insert screwdriver here to remove (233) adapter plate. ASSEMBLY TORQUE REQUIREMENTS NOTE: DO NOT OVERTIGHTEN FASTENERS. Torque (105 and 134) screws to 35 - 40 in. lbs (4.0 - 4.5 Nm). LUBRICATION / SEALANTS Apply Lubriplate FML-2 grease to “O”...

  • Page 9: Troubleshooting

    TROUBLE SHOOTING Product discharged from air exhaust. Low output volume. Check for diaphragm rupture. Check air supply. Check tightness of (6) diaphragm washer. Check for plugged outlet hose. Check for kinked (restrictive) outlet material hose. Air bubbles in product discharge. Check for kinked (restrictive) or collapsed inlet material Check connections of suction plumbing.

  • Page 10: Dimensional Data

    DIMENSIONAL DATA Dimensions shown are for reference only, they are displayed in inches and millimeters (mm). PX15P-FXS-XXX-AXXX PX15P-YXS-XXX-AXXX 1-1/2” ANSI / DIN Flange 1-1/2” ANSI / DIN Flange Outlet Outlet Inlet Inlet Exhaust Port 3/4 - 14 NPT. Exhaust Port 3/4 - 14 NPT. Air Inlet 1/2 - 14 NPT.
  • Page 11 PX15P-XXX-XXX-AXXX (en) Page 11 of 12...
  • Page 12 PN 97999-1055 Page 12 of 12 PX15P-XXX-XXX-AXXX (en)
