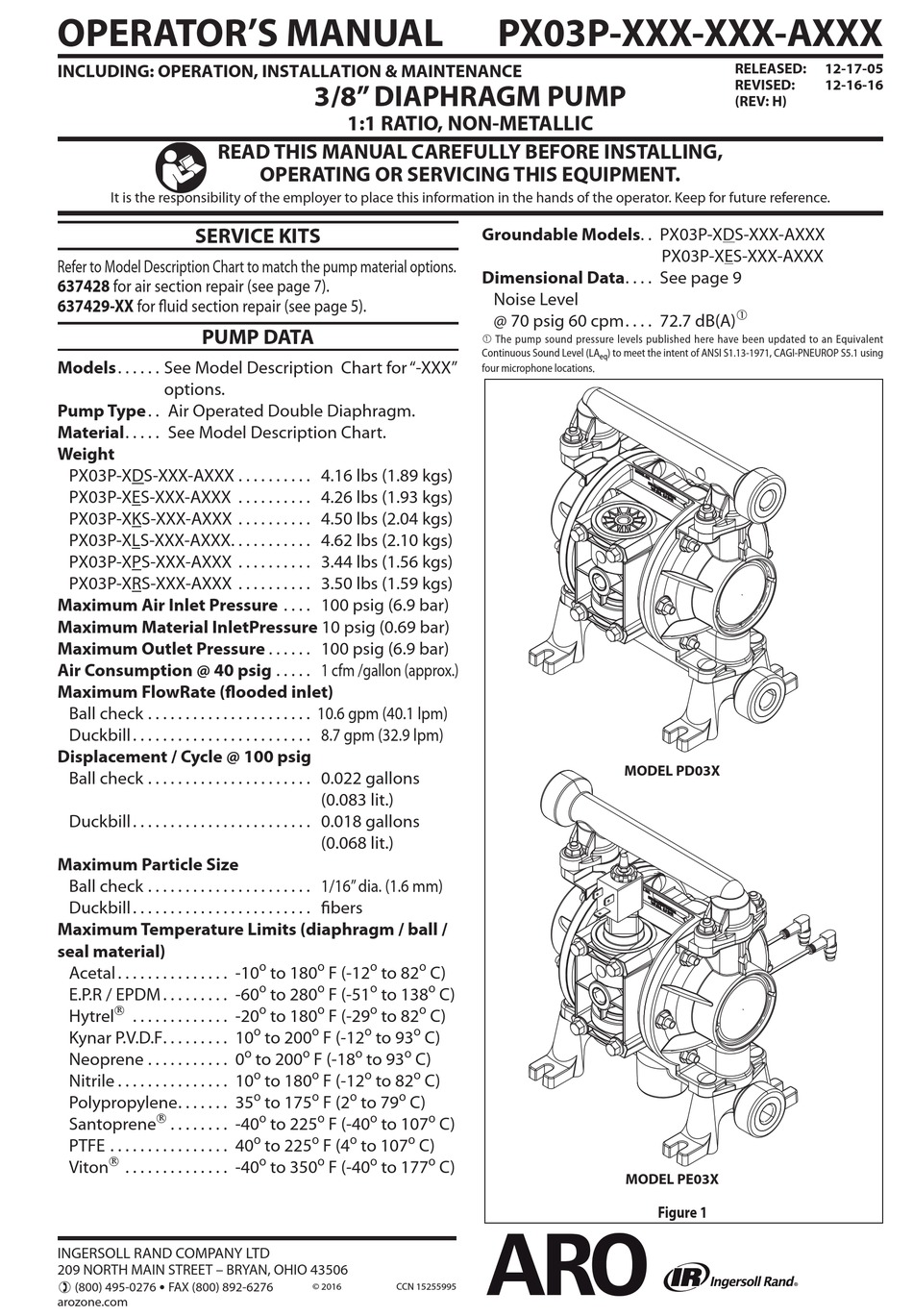

Ingersoll-Rand ARO PX03P Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
637428 for air section repair (see page 7).
637429-XX for fluid section repair (see page 5).
PUMP DATA
Models . . . . . . See Model Description Chart for "-XXX"
options.
Pump Type . . Air Operated Double Diaphragm.
Material . . . . . See Model Description Chart.
Weight
PX03P-XDS-XXX-AXXX . . . . . . . . . . 4.16 lbs (1.89 kgs)
PX03P-XES-XXX-AXXX . . . . . . . . . . 4.26 lbs (1.93 kgs)
PX03P-XKS-XXX-AXXX . . . . . . . . . . 4.50 lbs (2.04 kgs)
PX03P-XLS-XXX-AXXX . . . . . . . . . . . 4.62 lbs (2.10 kgs)
PX03P-XPS-XXX-AXXX . . . . . . . . . . 3.44 lbs (1.56 kgs)
PX03P-XRS-XXX-AXXX . . . . . . . . . . 3.50 lbs (1.59 kgs)
Maximum Air Inlet Pressure . . . . 100 psig (6.9 bar)
Maximum Material InletPressure 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . 100 psig (6.9 bar)
Air Consumption @ 40 psig . . . . . 1 cfm /gallon (approx.)
Maximum FlowRate (flooded inlet)
Ball check . . . . . . . . . . . . . . . . . . . . . . 10.6 gpm (40.1 lpm)
Duckbill . . . . . . . . . . . . . . . . . . . . . . . . 8.7 gpm (32.9 lpm)
Displacement / Cycle @ 100 psig
Ball check . . . . . . . . . . . . . . . . . . . . . . 0.022 gallons
Duckbill . . . . . . . . . . . . . . . . . . . . . . . . 0.018 gallons
Maximum Particle Size
Ball check . . . . . . . . . . . . . . . . . . . . . . 1/16" dia. (1.6 mm)
Duckbill . . . . . . . . . . . . . . . . . . . . . . . . fibers
Maximum Temperature Limits (diaphragm / ball /
seal material)
Acetal . . . . . . . . . . . . . . . -10
E.P.R / EPDM . . . . . . . . . -60

Hytrel . . . . . . . . . . . . . -20
Kynar P.V.D.F . . . . . . . . . 10
Neoprene . . . . . . . . . . . 0
Nitrile . . . . . . . . . . . . . . . 10
Polypropylene . . . . . . . 35

Santoprene . . . . . . . . -40
PTFE . . . . . . . . . . . . . . . . 40

Viton . . . . . . . . . . . . . . -40
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
 (800) 495-0276 FAX (800) 892-6276

arozone.com
3/8" DIAPHRAGM PUMP
1:1 RATIO, NON-METALLIC
OPERATING OR SERVICING THIS EQUIPMENT.
(0.083 lit.)
(0.068 lit.)
  
to 180 F (-12 to 82
  
to 280 F (-51 to 138
  
to 180 F (-29 to 82
   
to 200 F (-12 to 93
   
to 200 F (-18 to 93 C)
   
to 180 F (-12 to 82
   
to 175 F (2 to 79 C)
  
to 225 F (-40 to 107
   
to 225 F (4 to 107
  
to 350 F (-40 to 177
© 2016 CCN 15255995
PX03P-XXX-XXX-AXXX
Groundable Models . . PX03P-XDS-XXX-AXXX
Dimensional Data . . . . See page 9
Noise Level
@ 70 psig 60 cpm . . . . 72.7 dB(A)
 The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (LA
four microphone locations

C)

C)

C)
C)
C)

C)
C)

C)
RELEASED:
REVISED:
(REV: H)
PX03P-XES-XXX-AXXX

) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP S5.1 using
eq
.

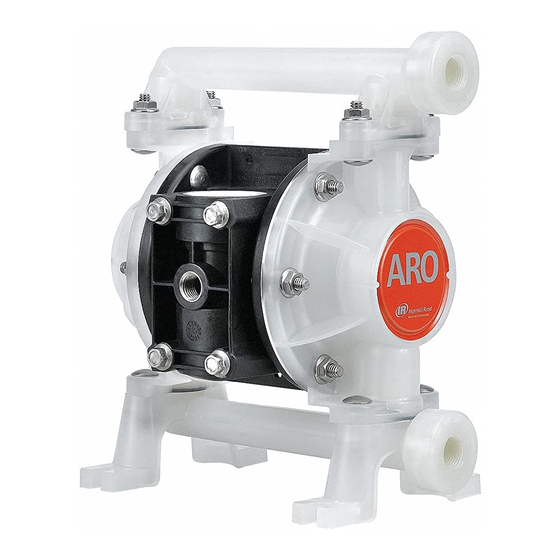

MODEL PD03X
MODEL PE03X
Figure 1
12-17-05
12-16-16
