OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
PUMP DATA
Models . . . . . . see Model Description Chart on page 2 for
"-XXX" options
Pump Type . . Non-Metallic Air Operated Double Diaphragm
Material . . . . . see Model Description Chart
Weight . . . . . . Polypropylene . . . . . . . . 2 . 8 6 lbs (1 . 3 0 kgs)
PVDF . . . . . . . . . . . . . . . . . 3 . 8 8 lbs (1 . 7 6 kgs)
Acetal . . . . . . . . . . . . . . . . 3 . 5 2 lbs (1 . 6 0 kgs)
Maximum Air Inlet Pressure . . . . . . . . 125 psig (8 . 6 bar)
Minimum Air Inlet Pressure . . . . . . . . . 10 psig (0 . 6 9 bar)
Maximum Outlet Pressure . . . . . . . . . . 125 psig (8 . 6 bar)
Maximum Flow Rate . . . . . . . . . . . . . . . . 5 . 3 gpm (20 lpm)
Maximum Material Inlet Pressure . . . . 10 psig (0 . 6 9 bar)
Displacement / Cycle @ 125 p.s.i.g . . 0 . 0 19 gal / 0 . 0 72 ltrs
Maximum Particle Size . . . . . . . . . . . . . 1/16" dia . ( 1 . 6 mm)
Maximum Temperature Limits (diaphragm / ball / seat
material)
Acetal . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
E . P . R . / EPDM . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Kynar® PVDF . . . . . . . . . . . . . . 10° to 200° F (-12° to 93° C)
Hytrel® . . . . . . . . . . . . . . . . . . . -20° to 150° F (-29° to 66° C)
Neoprene . . . . . . . . . . . . . . . . 0° to 200° F (-18° to 93° C)
Nitrile® . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Polypropylene . . . . . . . . . . . . 35° to 175° F (2° to 79° C)
Viton® . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)
Santoprene® . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
PTFE . . . . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 10
Noise Level @ 70 p . s . i . , 60 c . p . m . . . . . . . 62 . 3 db(A) 
 The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (L
S1 . 1 3-2005, CAGI-PNEUROP S5 . 1 .
Mounting Adapter Plate Optional Accessory Kit (24123879) available .
Please contact your nearest ARO / Ingersoll Rand customer service or
distributor for details .
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
www.ingersollrandproducts.com
1/4" DIAPHRAGM PUMP
1:1 RATIO (NON-METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
) to meet the intent of ANSI
Aeq
© 2013
CCN 80448053
PX01X-XXX-XXX-AXXX
Model PD01X
Model PE01X

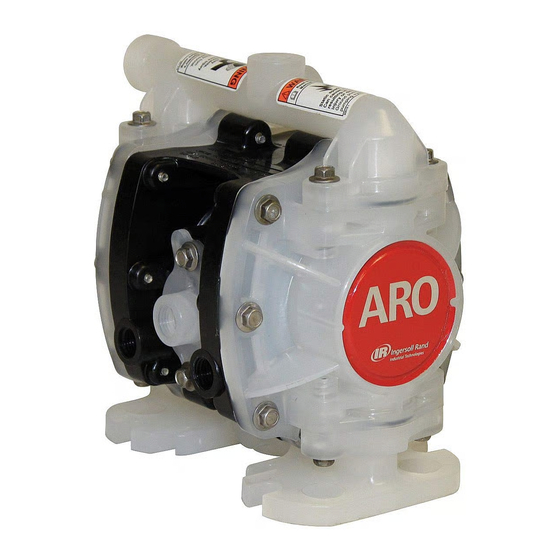

Figure 1
RELEASED:
3-7-13
(REV. B)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARO PX01 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ingersoll-Rand ARO PX01 Series

  • Page 1 OPERATOR’S MANUAL PX01X-XXX-XXX-AXXX INCLUDING: OPERATION, INSTALLATION & MAINTENANCE RELEASED: 3-7-13 (REV. B) 1/4" DIAPHRAGM PUMP 1:1 RATIO (NON-METALLIC) READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference. PUMP DATA Models .
  • Page 2: Model Description Chart

    MODEL DESCRIPTION CHART Model Code Explanation Example: PX01 Model Series PD01- Standard Pump PE01- Electronic Interface Center Body Material Groundable Polypropylene Polypropylene with Leak Failure Detection P - Polypropylene Connection H- Hybrid 1/4” NPT / BSP Fluid Caps / Manifold Material D- Groundable Acetal Kynar PVDF Polypropylene...
  • Page 3: Operating And Safety Precautions

    OPERATING AND SAFETY PRECAUTIONS READ, UNDERSTAND, AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE. Obtain Material Safety Data Sheets on all materials EXCESSIVE AIR PRESSURE HAZARDOUS MATERIALS from the supplier for proper handling instructions. S TATIC SPARK HAZARDOUS PRESSURE Verify the chemical compatibility of the CAUTION pump wetted parts and the substance being pumped,...
  • Page 4: General Description

    Kynar® is a registered trademark of the Arkema Inc . y Loctite® and 242 are registered trademarks of the Henkel Loctite Corporation y y ARO® is a registered trademark of Ingersoll-Rand Company y Santoprene® is a registered trademark of Monsanto Company, licensed to Advanced Elastomer Systems, L . P . y y Lubriplate®...
  • Page 5 PARTS LIST / PX01X-XXX-XXX-AXXX COMMON PARTS MATERIAL CODE PX01X-XXX-XXX-AXXX [B] = Nitrile Item Description [Mtl] Qty Part no [Co] = Copper [D] = Acetal 24028284 Rod Assembly (includes seals) [E] = E . P . R . / EPDM [G] = Nitrile [P] [2] 23981541...
  • Page 6 PX01X-XXX-XXX-AXXX / FLUID SECTION  TORQUE REQUIREMENTS  NOTE: DO NOT OVERTIGHTEN FASTENERS.  (26) Screws 51-55 in. lbs (5.8 - 6.2 Nm).  (6) Diaphragm Screw / Washer 60-70 in. lbs (6.8 - 9.7 Nm). LUBRICATION / SEALANTS  Apply Lubriplate FML-2 grease (94276) to all “O” rings, “U” cups and mating parts.
  • Page 7 PARTS LIST / PX01X-XXX-XXX-AXXX AIR SECTION PARTS Part no Part no [Mtl] Item Description Qty [Mtl] Item Description 101 Center Body 403 Valve 114102 (AII PE01X with SoIenoid) 23981392 (PD01X) 413 Coil Nut 119380 (All PE01X with Solenoid) (All PE01X without Diaphragm 23981392 Failure Detection) 414 Coil ,120 VAC...
  • Page 8 PX01X-XXX-XXX-AXXX / AIR SECTION PD01X-XXX-XXX-AXXX - Air Section PE01X-XXX-XXX-AXXX Air Section  TORQUE REQUIREMENTS  NOTE: DO NOT OVERTIGHTEN FASTENERS.  (26) Screws 25-28 in.lbs (2.8 - 3.2 Nm) LUBRICATION / SEALANTS  Apply Lubriplate FML-2 grease (94276) to all “O” rings, “U”...
  • Page 9 PE01X OPTION WIRING DIAGRAMS End of Stroke / Cycle Sensor Pinout, M12 Connector CABLE ASSEMBLY WIRING COLORS: PIN 1 PIN 2 PIN 1 - BROWN, POSITIVE VOLTAGE (+10 TO +30 VDC) PIN 2 - WHITE, NOT USED PIN 3 - BLUE, ZERO VOLTS PIN 4 - BLACK, SIGNAL PIN 3 PIN 4...
  • Page 10 DIMENSIONAL DATA Dimensions shown are for reference only, they are displayed in inches and millimeters (mm) . Dimensions N & P are for models PE01X only. Dotted lines show options for PE01X pumps. “R” Material Outlet (External THD.) “S” Material Outlet (Internal THD.) “T”...
  • Page 11 Page 11 of 12 PX01X-XXX-XXX-AXXX (en)
  • Page 12 Page 12 of 12 PX01X-XXX-XXX-AXXX (en)
