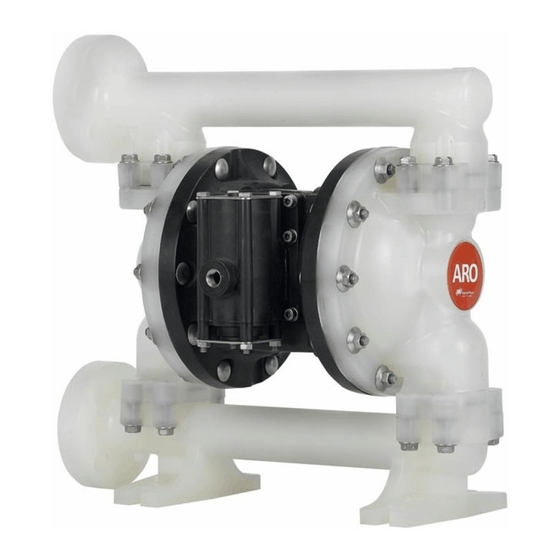

1” diaphragm pump

Advertisement

Quick Links

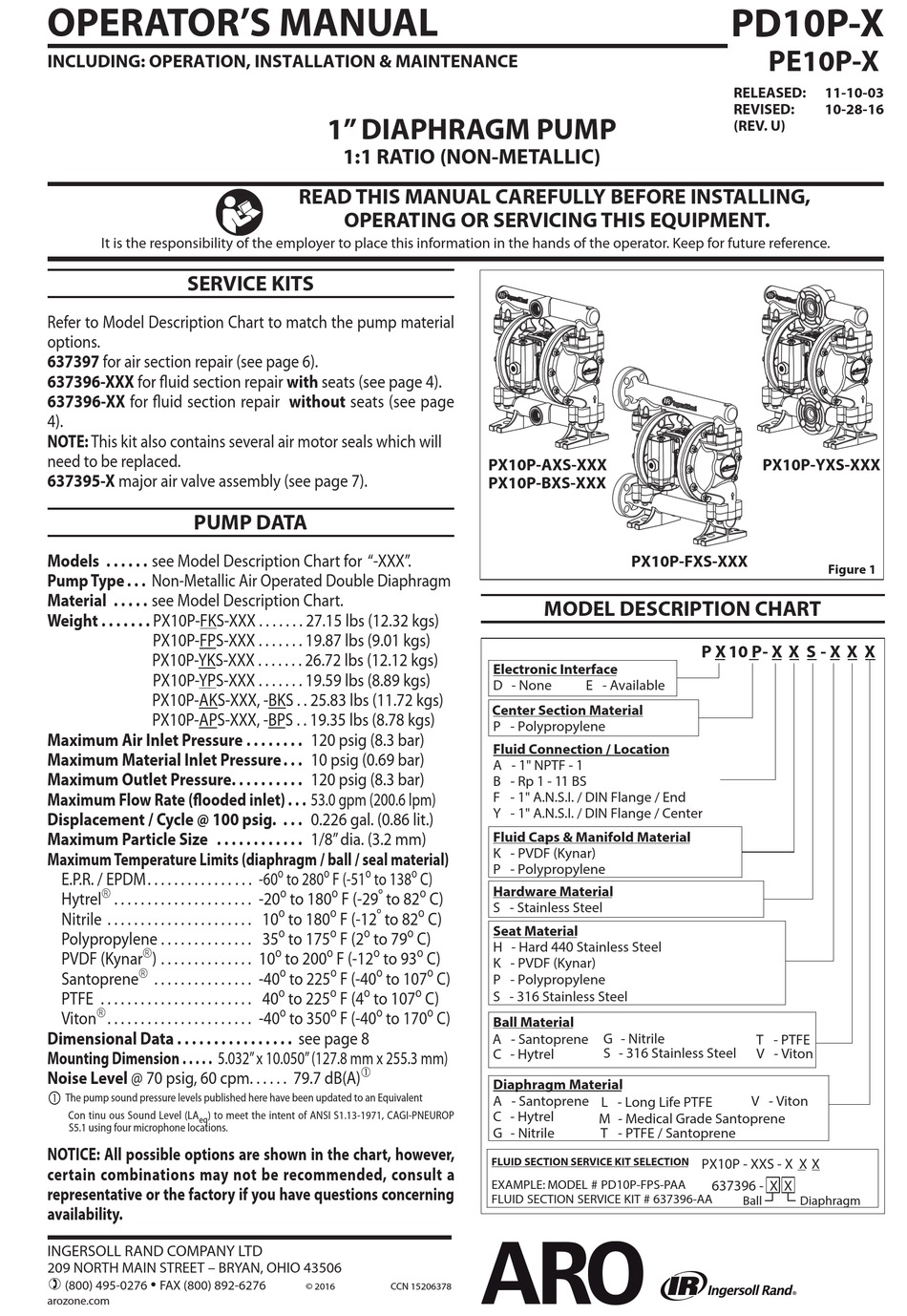

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material
options.
637397 for air section repair (see page 6).
637396-XXX for fluid section repair with seats (see page 4).
637396-XX for fluid section repair without seats (see page
4).
NOTE: This kit also contains several air motor seals which will
need to be replaced.
637395-X major air valve assembly (see page 7).
PUMP DATA
Models . . . . . . see Model Description Chart for "-XXX".
Pump Type . . . Non-Metallic Air Operated Double Diaphragm
Material . . . . . see Model Description Chart.
Weight . . . . . . . PX10P-FKS-XXX . . . . . . . 27.15 lbs (12.32 kgs)
PX10P-FPS-XXX . . . . . . . 19.87 lbs (9.01 kgs)
PX10P-YKS-XXX . . . . . . . 26.72 lbs (12.12 kgs)
PX10P-YPS-XXX . . . . . . . 19.59 lbs (8.89 kgs)
PX10P-AKS-XXX, -BKS . . 25.83 lbs (11.72 kgs)
PX10P-APS-XXX, -BPS . . 19.35 lbs (8.78 kgs)
Maximum Air Inlet Pressure . . . . . . . . 120 psig (8.3 bar)
Maximum Material Inlet Pressure . . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 120 psig (8.3 bar)
Maximum Flow Rate (flooded inlet) . . . 53.0 gpm (200.6 lpm)
Displacement / Cycle @ 100 psig. . . . 0.226 gal. (0.86 lit.)
Maximum Particle Size . . . . . . . . . . . . 1/8" dia. (3.2 mm)
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . . . . . . . . . -60
Hytrel
. . . . . . . . . . . . . . . . . . . . . -20
Nitrile . . . . . . . . . . . . . . . . . . . . . . 10
Polypropylene . . . . . . . . . . . . . . 35
PVDF (Kynar
) . . . . . . . . . . . . . . 10
Santoprene
. . . . . . . . . . . . . . . -40
PTFE . . . . . . . . . . . . . . . . . . . . . . . 40
Viton
. . . . . . . . . . . . . . . . . . . . . . -40
Dimensional Data . . . . . . . . . . . . . . . . see page 8
Mounting Dimension . . . . . 5.032" x 10.050" (127.8 mm x 255.3 mm)
Noise Level @ 70 psig, 60 cpm. . . . . . 79.7 dB(A)
The pump sound pressure levels published here have been updated to an Equivalent
Con tinu ous Sound Level (LA
) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP
eq
S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however,
certain combinations may not be recommended, consult a
representative or the factory if you have questions concerning
availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506
(800) 495-0276
FAX (800) 892-6276
arozone.com
1" DIAPHRAGM PUMP
1:1 RATIO (NON-METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
to 280
F (-51
to 138
C)
º
to 180
F (-29
to 82
C)
º
to 180
F (-12
to 82
C)
to 175
F (2
to 79
C)
to 200
F (-12
to 93
C)
to 225
F (-40
to 107
C)
to 225
F (4
to 107
C)
to 350
F (-40
to 170
C)
© 2016
CCN 15206378
PX10P-AXS-XXX
PX10P-BXS-XXX
PX10P-FXS-XXX
MODEL DESCRIPTION CHART
Electronic Interface
D - None
E - Available
Center Section Material
P - Polypropylene
Fluid Connection / Location
A - 1" NPTF - 1
B - Rp 1 - 11 BS
F - 1" A.N.S.I. / DIN Flange / End
Y - 1" A.N.S.I. / DIN Flange / Center
Fluid Caps & Manifold Material
K - PVDF (Kynar)
P - Polypropylene
Hardware Material
S - Stainless Steel
Seat Material
H - Hard 440 Stainless Steel
K - PVDF (Kynar)
P - Polypropylene
S - 316 Stainless Steel
Ball Material
G - Nitrile
A - Santoprene
S - 316 Stainless Steel
C - Hytrel
Diaphragm Material
A - Santoprene
L - Long Life PTFE
C - Hytrel
M - Medical Grade Santoprene
G - Nitrile
T - PTFE / Santoprene
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # PD10P-FPS-PAA
FLUID SECTION SERVICE KIT # 637396-AA
PD10P-X
PE10P-X
RELEASED:
11-10-03
REVISED:
10-28-16
(REV. U)
PX10P-YXS-XXX
Figure 1
P X 10 P - X X S - X X X
T - PTFE
V - Viton
V - Viton
PX10P - XXS - X X X
637396 - X X
Ball
Diaphragm
