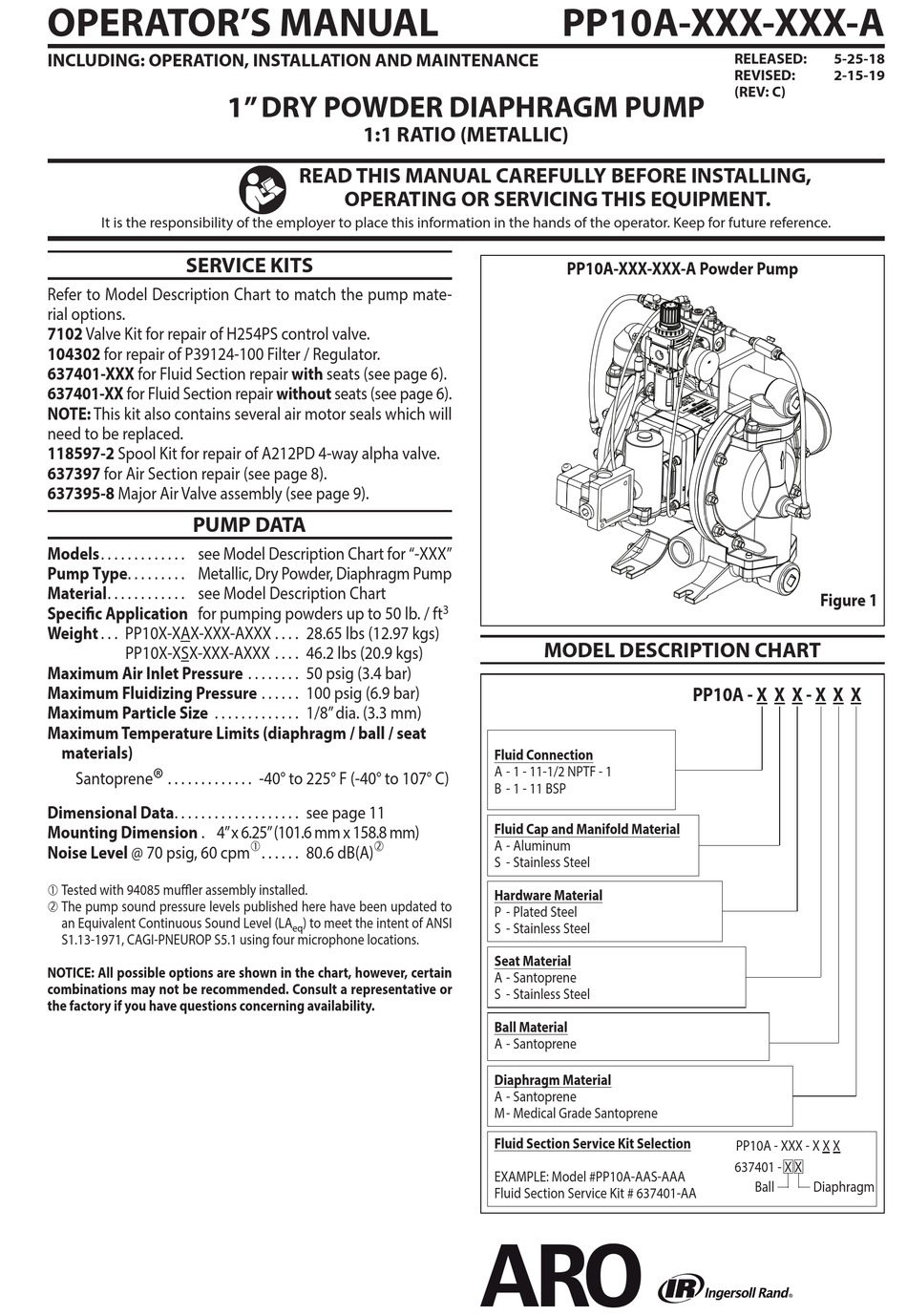

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump mate-
rial options.
7102 Valve Kit for repair of H254PS control valve.
104302 for repair of P39124-100 Filter / Regulator.
637401-XXX for Fluid Section repair with seats (see page 6).
637401-XX for Fluid Section repair without seats (see page 6).
NOTE: This kit also contains several air motor seals which will
need to be replaced.
118597-2 Spool Kit for repair of A212PD 4-way alpha valve.
637397 for Air Section repair (see page 8).
637395-8 Major Air Valve assembly (see page 9).
PUMP DATA
Models . . . . . . . . . . . . . see Model Description Chart for "-XXX"
Pump Type . . . . . . . . . Metallic, Dry Powder, Diaphragm Pump
Material . . . . . . . . . . . . see Model Description Chart
Specific Application for pumping powders up to 50 lb. / ft
Weight . . . PP10X-XAX-XXX-AXXX . . . . 28.65 lbs (12.97 kgs)
PP10X-XSX-XXX-AXXX . . . . 46.2 lbs (20.9 kgs)
Maximum Air Inlet Pressure . . . . . . . . 50 psig (3.4 bar)
Maximum Fluidizing Pressure . . . . . . 100 psig (6.9 bar)
Maximum Particle Size . . . . . . . . . . . . . 1/8" dia. (3.3 mm)
Maximum Temperature Limits (diaphragm / ball / seat
materials)
®
Santoprene
. . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 11
Mounting Dimension . 4" x 6.25" (101.6 mm x 158.8 mm)
Noise Level @ 70 psig, 60 cpm
Tested with 94085 muffler assembly installed.
The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (LA
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended. Consult a representative or
the factory if you have questions concerning availability.
1" DRY POWDER DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . . 80.6 dB(A)
) to meet the intent of ANSI
eq
PP10A-XXX-XXX-A

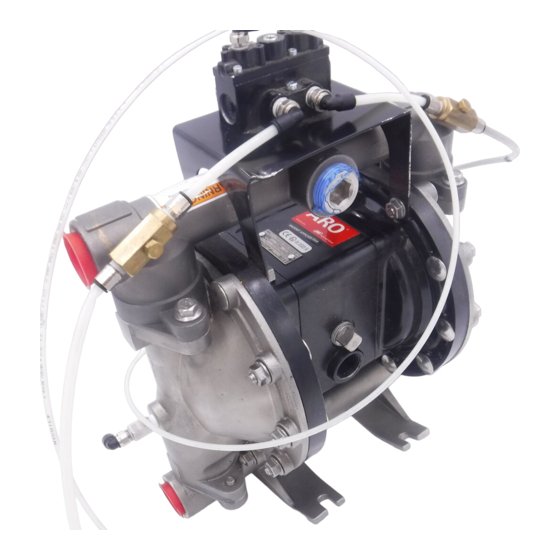

PP10A-XXX-XXX-A Powder Pump
3
MODEL DESCRIPTION CHART
Fluid Connection
A - 1 - 11-1/2 NPTF - 1
B - 1 - 11 BSP
Fluid Cap and Manifold Material
A - Aluminum
S - Stainless Steel
Hardware Material
P - Plated Steel
S - Stainless Steel
Seat Material
A - Santoprene
S - Stainless Steel
Ball Material
A - Santoprene
Diaphragm Material
A - Santoprene
M - Medical Grade Santoprene
Fluid Section Service Kit Selection
EXAMPLE: Model #PP10A-AAS-AAA
Fluid Section Service Kit # 637401-AA
RELEASED:
5-25-18
REVISED:
2-15-19
(REV: C)
Figure 1
PP10A - X X X - X X X
PP10A - XXX - X X X
637401 - X X
Ball
Diaphragm
Advertisement
Table of Contents
Related Manuals for Ingersoll-Rand ARO PP10A A Series
Summary of Contents for Ingersoll-Rand ARO PP10A A Series
- Page 1 OPERATOR’S MANUAL PP10A-XXX-XXX-A INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE RELEASED: 5-25-18 REVISED: 2-15-19 (REV: C) 1” DRY POWDER DIAPHRAGM PUMP 1:1 RATIO (METALLIC) READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT. It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference. SERVICE KITS PP10A-XXX-XXX-A Powder Pump Refer to Model Description Chart to match the pump mate-...
-
Page 2: Operating And Safety Precautions
OPERATING AND SAFETY PRECAUTIONS READ, UNDERSTAND AND FOLLOW THIS INFORMATION TO AVOID INJURY AND PROPERTY DAMAGE. Obtain Material Safety Data Sheets on all materials EXCESSIVE AIR PRESSURE HAZARDOUS MATERIALS from the supplier for proper handling instructions. STATIC SPARK HAZARDOUS PRESSURE EXPLOSION HAZARD. -
Page 3: General Description
GENERAL DESCRIPTION The material inlet supply tubing should not be too small or restrictive, which will inhibit material flow. The outlet The ARO diaphragm pump offers high volume delivery even material volume is governed not only by the air supply, at low air pressure and a broad range of material compat- but also by the material volume available at the inlet. -
Page 4: Maintenance
Loctite® and 242® are registered trademarks of Henkel Loctite Corporation y ARO® is a registered trademark of Ingersoll-Rand Company y y Santoprene® is a registered trademark of Monsanto Company, licensed to Advanced Elastomer Systems, L.P. y 271™ is a trademark of Henkel Loctite Corporation y y Lubriplate®... -
Page 5: Typical Cross Section
TYPICAL CROSS SECTION Figure 3 PP10A-XXX-XXX-A (en) Page 5 of 12... - Page 6 PARTS LIST / PP10A-XXX-XXX-A FLUID SECTION FLUID SECTION SERVICE KITS (637401-XXX or 637401-XX) For Fluid Kits With Seats: 637401 -XXX fluid section service kits include: Seats (see SEAT Option, refer to -XXX in chart below), Balls (see BALL Option, refer to -XXX in chart below), Diaphragms (see DIAPHRAGM Option, refer to -XXX in chart below), and items 19, 70, 144, ®...
- Page 7 PARTS LIST / PP10A-XXX-XXX-A FLUID SECTION FOR THE AIR MOTOR SECTION, SEE PAGES 8 AND 9. Torque Sequence TORQUE REQUIREMENTS NOTE: DO NOT OVERTIGHTEN FASTENERS. (14) diaphragm bolt, 25 - 30 ft lbs (33.8 - 40.6 Nm). (26) screws, 20 - 25 ft lbs (27.1 - 33.8 Nm). (29) Nut, 15 - 20 ft lbs (20.3 - 27.1 Nm).
-
Page 8: Major Valve Disassembly
PARTS LIST / PP10A-XXX-XXX-A AIR MOTOR SECTION Indicates parts included in 637397 air section repair kit, plus items 70, 144, 175 and 180 (page 6). AIR MOTOR PARTS LIST Item Description (Qty) Part No. [Mtl] Item Description (Qty) Part No. [Mtl] (size) (size) - Page 9 PARTS LIST / PP10A-XXX-XXX-A AIR MOTOR SECTION PILOT VALVE PART GROUP 121 174 Figure 5 TORQUE REQUIREMENTS MAJOR VALVE NOTE: DO NOT OVERTIGHTEN FASTENERS. ALL FASTENERS ARE METRIC. (105) screw, 40 - 50 in. lbs (4.5 - 5.6 Nm). (134) screw, 40 - 50 in.
- Page 10 PARTS LIST / PP10A-XXX-XXX-A CONTROL SECTION AIR CONTROL PARTS LIST Item Description (Qty) Part No. Item Description (Qty) Part No. (size) (size) 76 Adapter (2) 94817 260 Check Valve (2) CP10-B (1/8 - 27 NPTF - 1) 77 Elbow (2) 59756-56 261 Mounting Bracket (1) 97704 (1/4”...
-
Page 11: Dimensional Data
DIMENSIONAL DATA Dimensions shown are for reference only. They are displayed in inches and millimeters (mm). 1 - 11-1/2 NPTF - 1 (PP10A-ASS-AAA-A-A) 1 - 11 BSP (PP10A-AAS-AAA-A-A) Air Inlet 1/2 - 14 NPTF Outlet Inlet Exhaust Port 3/4 - 14 NPT DIMENSIONS A - 375.21 mm B - see below... - Page 12 PN 97999-1822 Page 12 of 12 PP10A-XXX-XXX-A (en)
