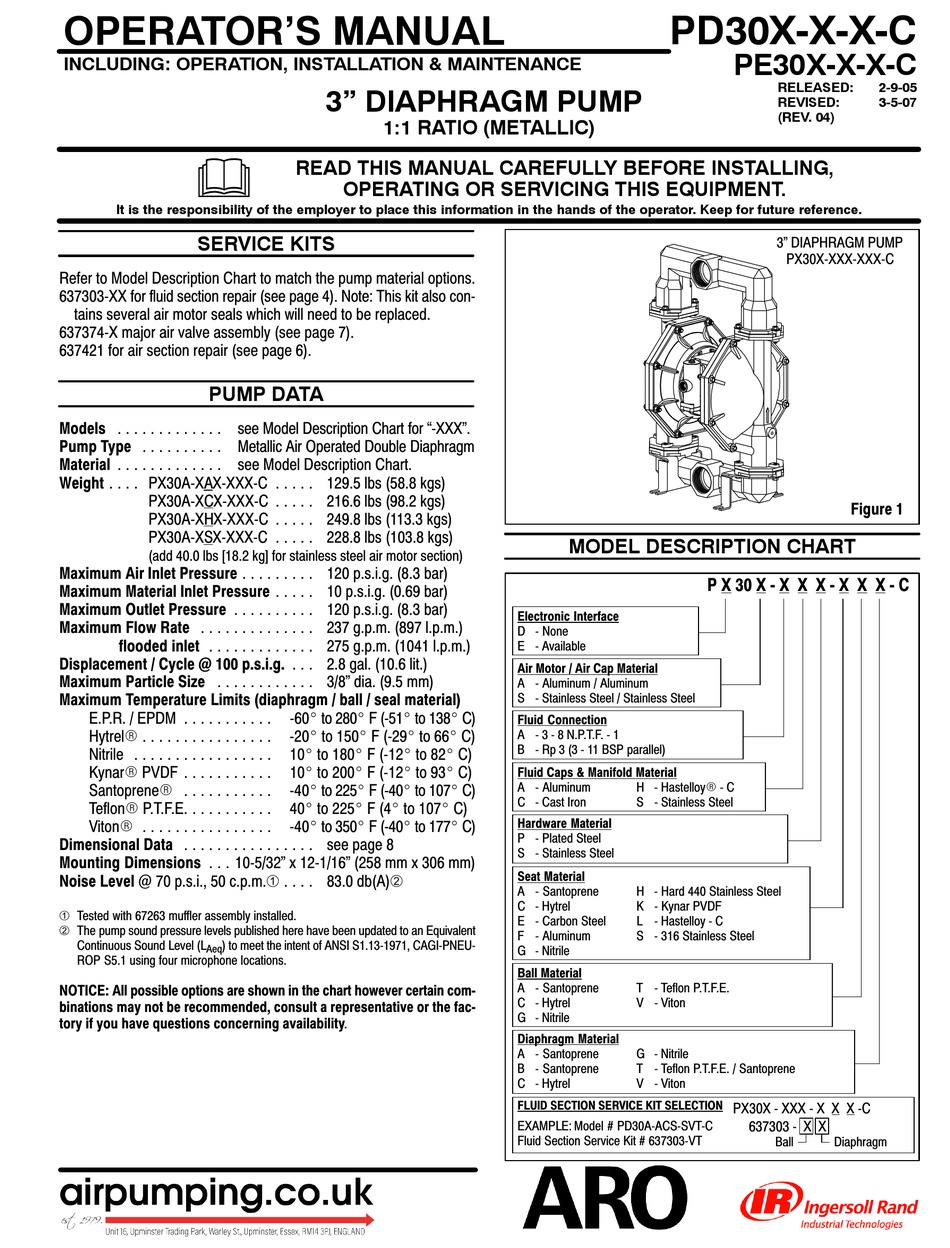

Ingersoll-Rand ARO PD30 C Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
637303-XX for fluid section repair (see page 4). Note: This kit also con-
tains several air motor seals which will need to be replaced.
637374-X major air valve assembly (see page 7).
637421 for air section repair (see page 6).
PUMP DATA
Models . . . . . . . . . . . . . see Model Description Chart for -XXX".
Pump Type . . . . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . . . . see Model Description Chart.
Weight . . . . PX30A-XAX-XXX-C
PX30A-XCX-XXX-C
PX30A-XHX-XXX-C
PX30A-XSX-XXX-C
(add 40.0 lbs [18.2 kg] for stainless steel air motor section)
Maximum Air Inlet Pressure
Maximum Material Inlet Pressure
Maximum Outlet Pressure . . . . . . . . . .
Maximum Flow Rate . . . . . . . . . . . . . .
flooded inlet . . . . . . . . . . . . .
Displacement / Cycle @ 100 p.s.i.g.
Maximum Particle Size . . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . . . .
HytrelR . . . . . . . . . . . . . . . .
Nitrile . . . . . . . . . . . . . . . . .
KynarR PVDF . . . . . . . . . . .
SantopreneR . . . . . . . . . . .
TeflonR P.T.F.E. . . . . . . . . . .
VitonR . . . . . . . . . . . . . . . .
Dimensional Data . . . . . . . . . . . . . . . .
Mounting Dimensions . . . 10-5/32" x 12-1/16" (258 mm x 306 mm)
Noise Level @ 70 p.s.i., 50 c.p.m.À
À Tested with 67263 muffler assembly installed.
Á The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13-1971, CAGI-PNEU-
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart however certain com-
binations may not be recommended, consult a representative or the fac-
tory if you have questions concerning availability.
3" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . 129.5 lbs (58.8 kgs)
. . . . . 216.6 lbs (98.2 kgs)
. . . . . 249.8 lbs (113.3 kgs)
. . . . . 228.8 lbs (103.8 kgs)
. . . . . . . . . 120 p.s.i.g. (8.3 bar)
. . . . . 10 p.s.i.g. (0.69 bar)
120 p.s.i.g. (8.3 bar)
237 g.p.m. (897 l.p.m.)
275 g.p.m. (1041 l.p.m.)
. . . 2.8 gal. (10.6 lit.)
3/8" dia. (9.5 mm)
-60_ to 280_ F (-51_ to 138_ C)
-20_ to 150_ F (-29_ to 66_ C)
10_ to 180_ F (-12_ to 82_ C)
10_ to 200_ F (-12_ to 93_ C)
-40_ to 225_ F (-40_ to 107_ C)
40_ to 225_ F (4_ to 107_ C)
-40_ to 350_ F (-40_ to 177_ C)
see page 8
. . . . 83.0 db(A)Á
PD30X-X-X-C
MODEL DESCRIPTION CHART
Electronic Interface
D - None
E - Available
Air Motor / Air Cap Material
A - Aluminum / Aluminum
S - Stainless Steel / Stainless Steel
Fluid Connection
A - 3 - 8 N.P.T.F. - 1
B - Rp 3 (3 - 11 BSP parallel)
Fluid Caps & Manifold Material
A - Aluminum H - HastelloyR - C
C - Cast Iron S - Stainless Steel
Hardware Material
P - Plated Steel
S - Stainless Steel
Seat Material
A - Santoprene H - Hard 440 Stainless Steel
C - Hytrel K - Kynar PVDF
E - Carbon Steel L - Hastelloy - C
F - Aluminum S - 316 Stainless Steel
G - Nitrile
Ball Material
A - Santoprene T - Teflon P.T.F.E.
C - Hytrel V - Viton
G - Nitrile
Diaphragm Material
A - Santoprene G - Nitrile
B - Santoprene T - Teflon P.T.F.E. / Santoprene
C - Hytrel V - Viton
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: Model # PD30A-ACS-SVT-C
Fluid Section Service Kit # 637303-VT
PE30X-X-X-C
RELEASED: 2-9-05
REVISED: 3-5-07
(REV. 04)
3" DIAPHRAGM PUMP
PX30X-XXX-XXX-C

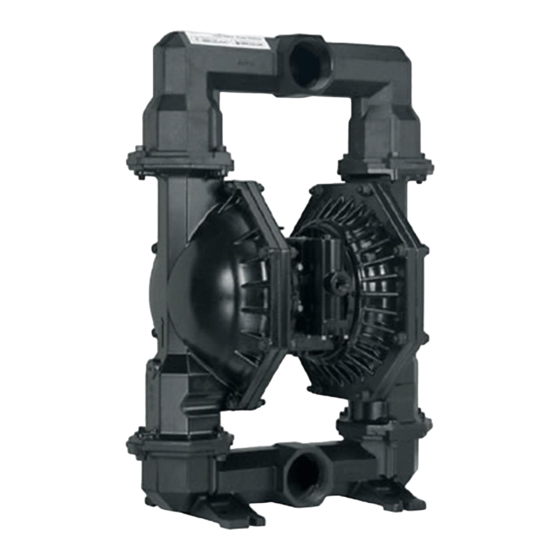

Figure 1
P X 30 X - X X X - X X X - C
PX30X - XXX - X X X -C
637303 - X X
Ball Diaphragm
