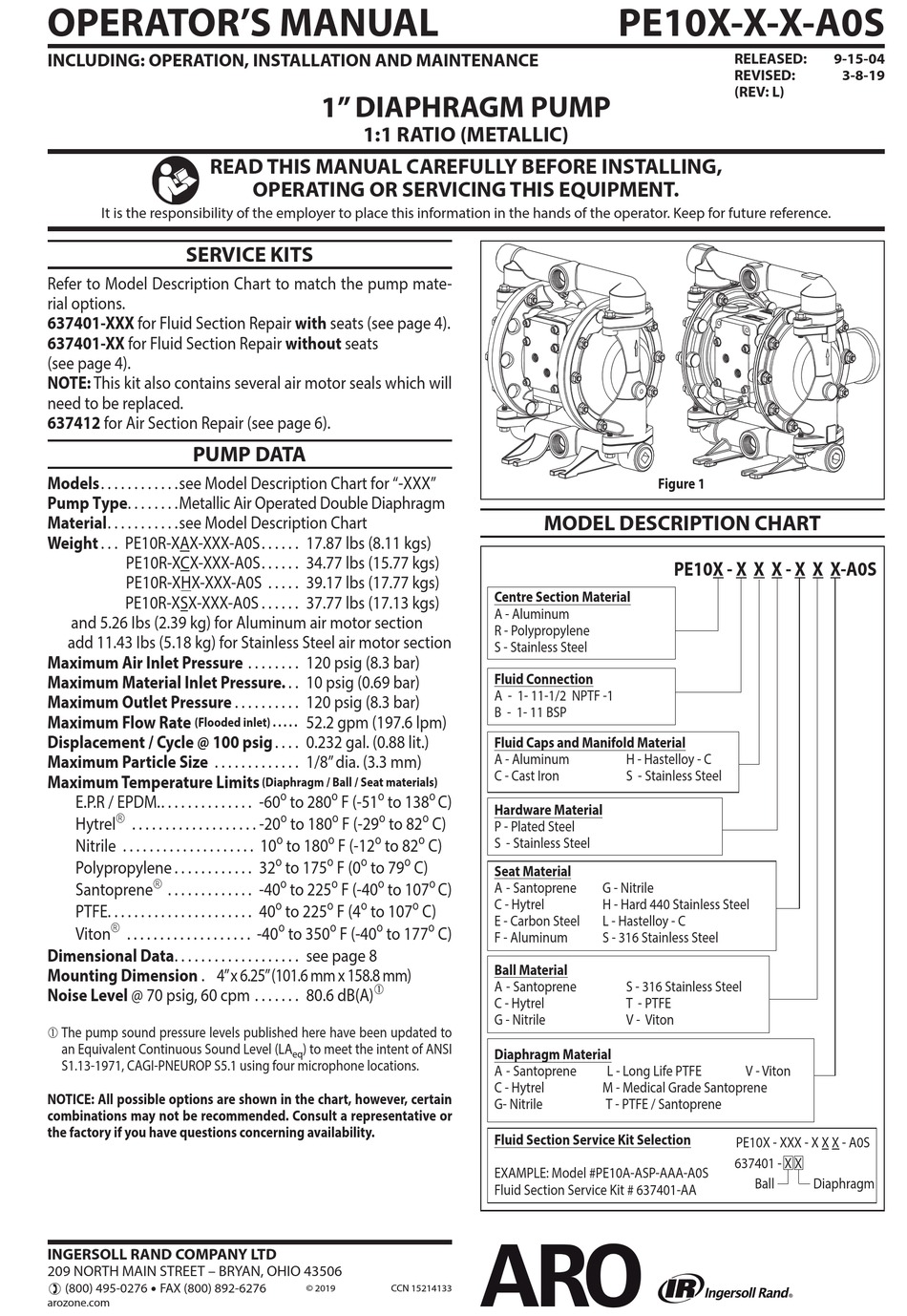

Ingersoll-Rand ARO PE10 A0S Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump mate-
rial options.
637401-XXX for Fluid Section Repair with seats (see page 4).
637401-XX for Fluid Section Repair without seats
(see page 4).
NOTE: This kit also contains several air motor seals which will
need to be replaced.
637412 for Air Section Repair (see page 6).
PUMP DATA
Models . . . . . . . . . . . .see Model Description Chart for "-XXX"
Pump Type . . . . . . . .Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . .see Model Description Chart
Weight . . . PE10R-XAX-XXX-A0S . . . . . . 17.87 lbs (8.11 kgs)
PE10R-XCX-XXX-A0S . . . . . . 34.77 lbs (15.77 kgs)
PE10R-XHX-XXX-A0S . . . . . 39.17 lbs (17.77 kgs)
PE10R-XSX-XXX-A0S . . . . . . 37.77 lbs (17.13 kgs)
and 5.26 Ibs (2.39 kg) for Aluminum air motor section
add 11.43 Ibs (5.18 kg) for Stainless Steel air motor section
Maximum Air Inlet Pressure . . . . . . . . 120 psig (8.3 bar)
Maximum Material Inlet Pressure. . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . 120 psig (8.3 bar)
Maximum Flow Rate
(Flooded inlet) . . . . .
Displacement / Cycle @ 100 psig . . . . 0.232 gal. (0.88 lit.)
Maximum Particle Size . . . . . . . . . . . . . 1/8" dia. (3.3 mm)
Maximum Temperature Limits
E.P.R / EPDM. . . . . . . . . . . . . . . -60

Hytrel . . . . . . . . . . . . . . . . . . . -20
Nitrile . . . . . . . . . . . . . . . . . . . . 10
Polypropylene . . . . . . . . . . . . 32

Santoprene . . . . . . . . . . . . . -40
PTFE. . . . . . . . . . . . . . . . . . . . . . 40

Viton . . . . . . . . . . . . . . . . . . . -40
Dimensional Data . . . . . . . . . . . . . . . . . . . see page 8
Mounting Dimension . 4" x 6.25" (101.6 mm x 158.8 mm)
Noise Level @ 70 psig, 60 cpm . . . . . . . 80.6 dB(A)
 The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (LA
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended. Consult a representative or
the factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
209 NORTH MAIN STREET – BRYAN, OHIO 43506

(800) 495-0276  FAX (800) 892-6276
arozone.com

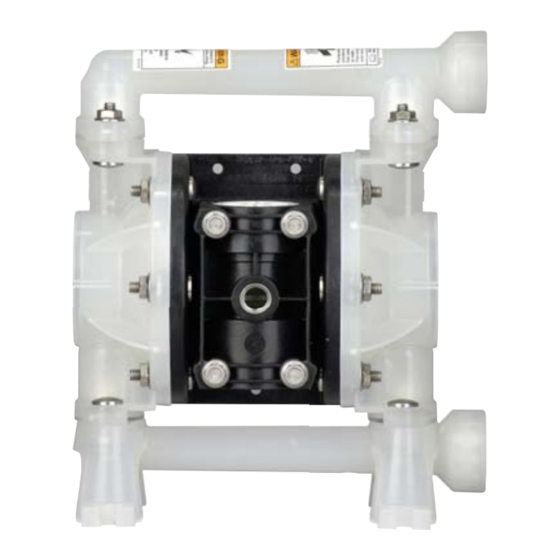

1" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
OPERATING OR SERVICING THIS EQUIPMENT.
52.2 gpm (197.6 lpm)
(Diaphragm / Ball / Seat materials)
  
to 280 F (-51 to 138
   
to 180 F (-29 to 82
   
to 180 F (-12 to 82
   
to 175 F (0 to 79 C)
  
to 225 F (-40 to 107
   
to 225 F (4 to 107 C)
  
to 350 F (-40 to 177

) to meet the intent of ANSI
eq
© 2019 CCN 15214133
MODEL DESCRIPTION CHART
Centre Section Material
A - Aluminum
R - Polypropylene
S - Stainless Steel
Fluid Connection
A - 1- 11-1/2 NPTF -1
B - 1- 11 BSP
Fluid Caps and Manifold Material
A - Aluminum
C - Cast Iron

C)
Hardware Material
C)
P - Plated Steel
C) S - Stainless Steel
Seat Material

C) A - Santoprene
C - Hytrel
E - Carbon Steel

C)
F - Aluminum
Ball Material
A - Santoprene
C - Hytrel
G - Nitrile
Diaphragm Material
A - Santoprene
C - Hytrel
G- Nitrile
Fluid Section Service Kit Selection
EXAMPLE: Model #PE10A-ASP-AAA-A0S
Fluid Section Service Kit # 637401-AA
PE10X-X-X-A0S
RELEASED:
REVISED:
(REV: L)
Figure 1
PE10X - X X X - X X X-A0S
H - Hastelloy - C
S - Stainless Steel
G - Nitrile
H - Hard 440 Stainless Steel
L - Hastelloy - C
S - 316 Stainless Steel
S - 316 Stainless Steel
T - PTFE
V - Viton
L - Long Life PTFE V - Viton
M - Medical Grade Santoprene
T - PTFE / Santoprene
PE10X - XXX - X X X - A0S
637401 - X X
Ball
9-15-04
3-8-19
Diaphragm
