OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material op-
tions.
637427-XX for fl uid section repair (see page 4).
637428 for air section repair (see pages 6 and 8).
PUMP DATA
Models . . . . . . . . . . . . . . . . . see Model Description Chart for "-XXX"
Pump Type . . . . . . . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . . . . . . . see Model Description Chart
Weight . . PX05A-XAS-XXX-B . . . . . . . . . . . . 10.36 lbs (4.70 kgs)
PX05A-XSS-XXX-B . . . . . . . . . . . . 16.57 lbs (7.52 kgs)
PX05R-XAS-XXX-B . . . . . . . . . . . . 8.04 lbs (3.65 kgs)
PX05R-XSS-XXX-B . . . . . . . . . . . . 14.25 lbs (6.46 kgs)
Maximum Air Inlet Pressure . . . . . . . . . . . 100 p.s.i.g. (6.9 bar)
Maximum Material Inlet Pressure . . . . . . 10 p.s.i.g. (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . . . . 100 p.s.i.g. (6.9 bar)
Air Consumption @ 40 p.s.i. . . . . . . . . . . . . . 1 c.f.m. / gallon (approx.)
Maximum Flow Rate (fl ooded inlet) . . . 12.0 g.p.m. (45.4 l.p.m.)
Displacement / Cycle @ 100 p.s.i.g. . . . . 0.039 gal. (0.15 lit.)
Maximum Particle Size . . . . . . . . . . . . . . . . 3/32" dia. (2.4 mm)
Maximum Temperature Limits (diaphragm / ball / seat material)
E.P.R. / EPDM . . . . . . . . . . . . . . . . . . . -60° to 280° F (-51° to 138° C)
Hytrel® . . . . . . . . . . . . . . . . . . . . . . . . . -20° to 150° F (-29° to 66° C)
Nitrile . . . . . . . . . . . . . . . . . . . . . . . . . . 10° to 180° F (-12° to 82° C)
Polypropylene. . . . . . . . . . . . . . . . . . 35° to 150° F (2° to 66° C)
Polyurethane . . . . . . . . . . . . . . . . . . . 10° to 150° F (-12° to 66° C)
Santoprene® . . . . . . . . . . . . . . . . . . . -40° to 225° F (-40° to 107° C)
Tefl on® PTFE . . . . . . . . . . . . . . . . . . . 40° to 225° F (4° to 107° C)
Viton® . . . . . . . . . . . . . . . . . . . . . . . . . . -40° to 350° F (-40° to 177° C)
Dimensional Data . . . . . . . . . . . . . . . . . . . . . . see pages 11 and 12
Noise Level @ 70 p.s.i., 60 c.p.m. . . . . . . . . . 75.0 db(A)
The pump sound pressure levels published here have been updated to
an Equivalent Continuous Sound Level (L
S1.13-1971, CAGI-PNEUROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or
the factory if you have questions concerning availability.
INGERSOLL RAND COMPANY LTD
P.O. BOX 151 ONE ARO CENTER BRYAN, OHIO 43506-0151
(800) 276-4658 FAX (800) 266-7016
fl uids.ingersollrand.com
1/2" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
) to meet the intent of ANSI
Aeq
© 2008 CCN 15250384
PD05X-XXX-XXX-B
PE05X-XXX-XXX-B
PD05R-XXX-XXX-B
MODEL DESCRIPTION CHART
Electronic Interface
D - None
E - Available
Center Section Material
A - Aluminum
R - Polypropylene
Fluid Connection
A - 1/2 - 14 N.P.T.F. - 1
B - Rp 1/2 (1/2 - 14 BSP parallel)
Fluid Cap & Manifold Material
A - Aluminum
S - Stainless steel
Hardware Material
S - Stainless steel
Seat Material
F - Aluminum
P - Polypropylene
S - 316 Stainless steel
Ball Material
A - Santoprene T - Tefl on PTFE
C - Hytrel U - Polyurethane
G - Nitrile V - Viton
S - Stainless steel
Diaphragm Material
A - Santoprene T - Tefl on PTFE / Santoprene
C - Hytrel U - Polyurethane
G - Nitrile V - Viton
Fluid Section Service Kit Selection
Example: Model #PD05A-AAS-SAA-B
Fluid Section Service Kit # 637427-AA
RELEASED: 11-10-05
REVISED: 8-27-08
(REV. 04)

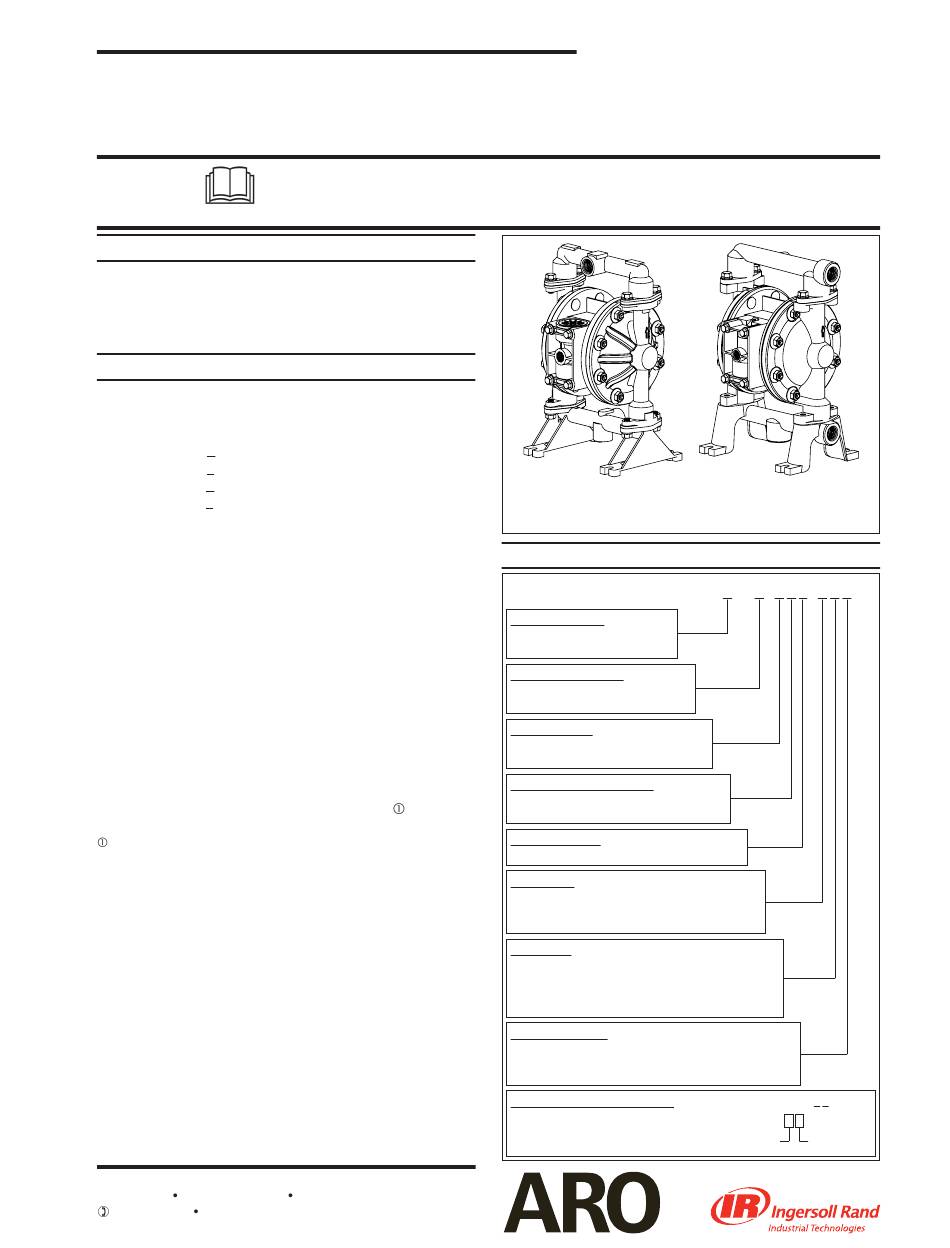

PD05A-XXX-XXX-B
Figure 1
P X 05 X - X X S - X X X - B
PD05X - XXX - X X X - B
637427 - X X
Ball Diaphragm
