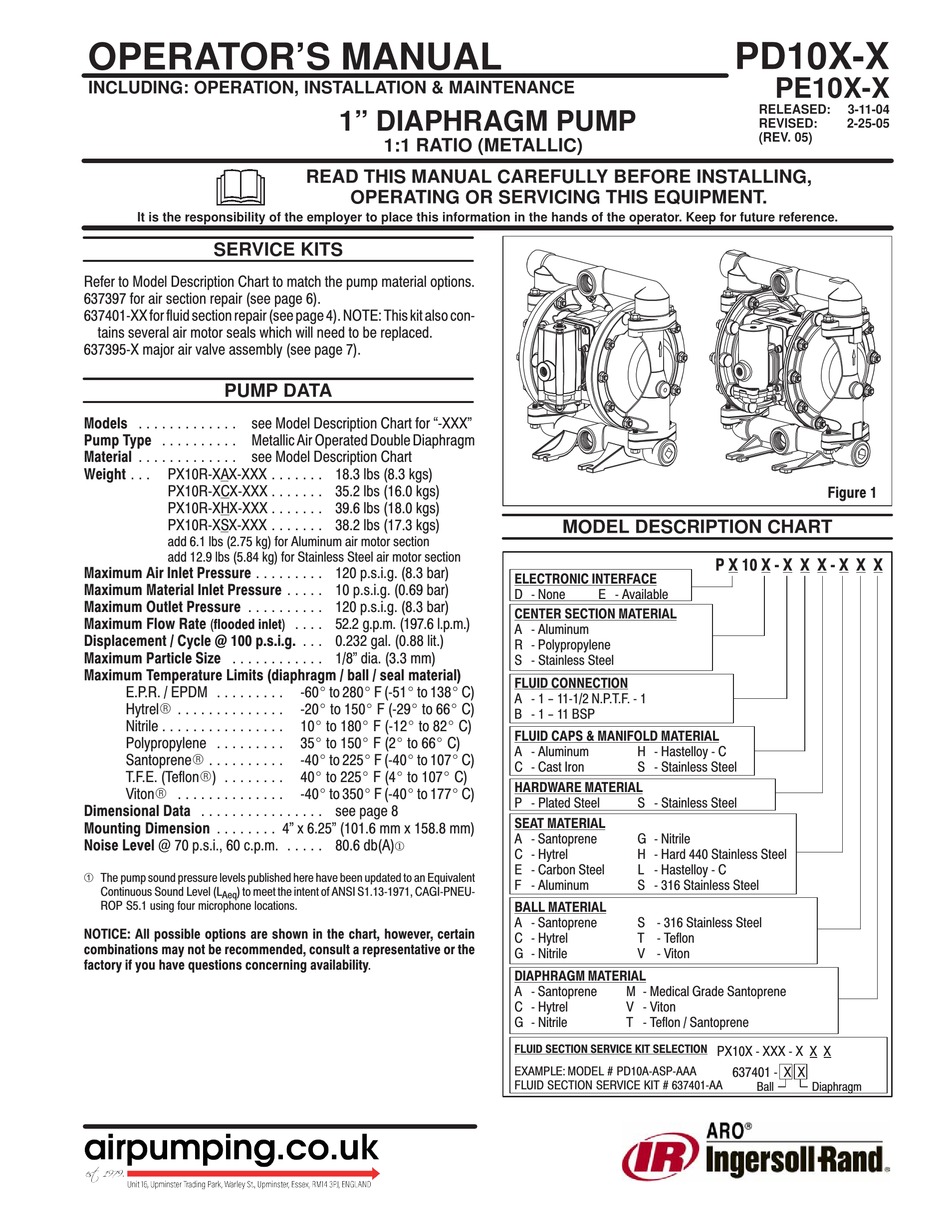

Ingersoll-Rand ARO PD10 Series Operator's Manual

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION & MAINTENANCE
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material options.
637397 for air section repair (see page 6).
637401 XX for fluid section repair (see page 4). NOTE: This kit also con
tains several air motor seals which will need to be replaced.
637395 X major air valve assembly (see page 7).
PUMP DATA
Models . . . . . . . . . . . . . see Model Description Chart for  XXX"
Pump Type . . . . . . . . . . Metallic Air Operated Double Diaphragm
Material . . . . . . . . . . . . . see Model Description Chart
Weight . . . PX10R XAX XXX
PX10R XCX XXX
PX10R XHX XXX
PX10R XSX XXX
add 6.1 lbs (2.75 kg) for Aluminum air motor section
add 12.9 lbs (5.84 kg) for Stainless Steel air motor section
Maximum Air Inlet Pressure . . . . . . . . .
Maximum Material Inlet Pressure
Maximum Outlet Pressure . . . . . . . . . .
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 p.s.i.g.
Maximum Particle Size . . . . . . . . . . . .
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . .
HytrelR . . . . . . . . . . . . . .
Nitrile . . . . . . . . . . . . . . . .
Polypropylene . . . . . . . . .
SantopreneR . . . . . . . . . .
T.F.E. (TeflonR) . . . . . . . .
VitonR . . . . . . . . . . . . . .
Dimensional Data . . . . . . . . . . . . . . . .
Mounting Dimension . . . . . . . .
Noise Level @ 70 p.s.i., 60 c.p.m.
À The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (L ) to meet the intent of ANSI S1.13 1971, CAGI PNEU
Aeq
ROP S5.1 using four microphone locations.
NOTICE: All possible options are shown in the chart, however, certain
combinations may not be recommended, consult a representative or the
factory if you have questions concerning availability.

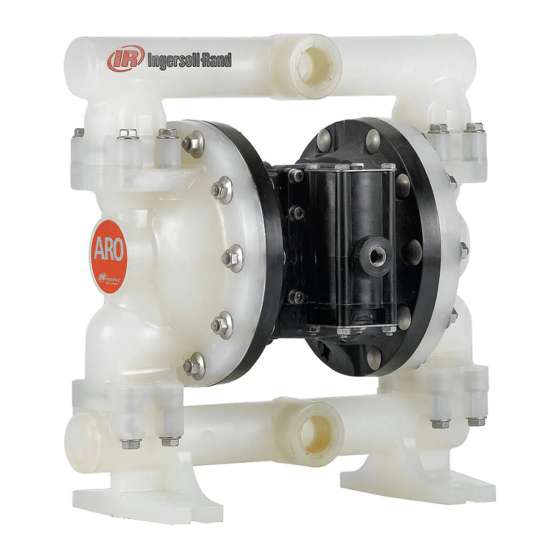

1" DIAPHRAGM PUMP
1:1 RATIO (METALLIC)
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . . . 18.3 lbs (8.3 kgs)
. . . . . . . 35.2 lbs (16.0 kgs)
. . . . . . . 39.6 lbs (18.0 kgs)
. . . . . . . 38.2 lbs (17.3 kgs)
120 p.s.i.g. (8.3 bar)
. . . . . 10 p.s.i.g. (0.69 bar)
120 p.s.i.g. (8.3 bar)
. . . . 52.2 g.p.m. (197.6 l.p.m.)
. . . 0.232 gal. (0.88 lit.)
1/8" dia. (3.3 mm)
60_ to 280_ F ( 51_ to 138_ C)
20_ to 150_ F ( 29_ to 66_ C)
10_ to 180_ F ( 12_ to 82_ C)
35_ to 150_ F (2_ to 66_ C)
40_ to 225_ F ( 40_ to 107_ C)
40_ to 225_ F (4_ to 107_ C)
40_ to 350_ F ( 40_ to 177_ C)
see page 8
4" x 6.25" (101.6 mm x 158.8 mm)
. . . . . 80.6 db(A)
¬
MODEL DESCRIPTION CHART
ELECTRONIC INTERFACE
D None E Available
CENTER SECTION MATERIAL
A Aluminum
R Polypropylene
S Stainless Steel
FLUID CONNECTION
A 1 - 11 1/2 N.P.T.F. 1
B 1 - 11 BSP
FLUID CAPS & MANIFOLD MATERIAL
A Aluminum H Hastelloy C
C Cast Iron S Stainless Steel
HARDWARE MATERIAL
P Plated Steel S Stainless Steel
SEAT MATERIAL
A Santoprene G Nitrile
C Hytrel H Hard 440 Stainless Steel
E Carbon Steel L Hastelloy C
F Aluminum S 316 Stainless Steel
BALL MATERIAL
A Santoprene S 316 Stainless Steel
C Hytrel T Teflon
G Nitrile V Viton
DIAPHRAGM MATERIAL
A Santoprene M Medical Grade Santoprene
C Hytrel V Viton
G Nitrile T Teflon / Santoprene
FLUID SECTION SERVICE KIT SELECTION
EXAMPLE: MODEL # PD10A ASP AAA
FLUID SECTION SERVICE KIT # 637401 AA
PD10X-X
PE10X-X
RELEASED: 3-11-04
REVISED: 2-25-05
(REV. 05)
Figure 1
P X 10 X X X X X X X
PX10X XXX X X X
637401 X X
Ball Diaphragm
