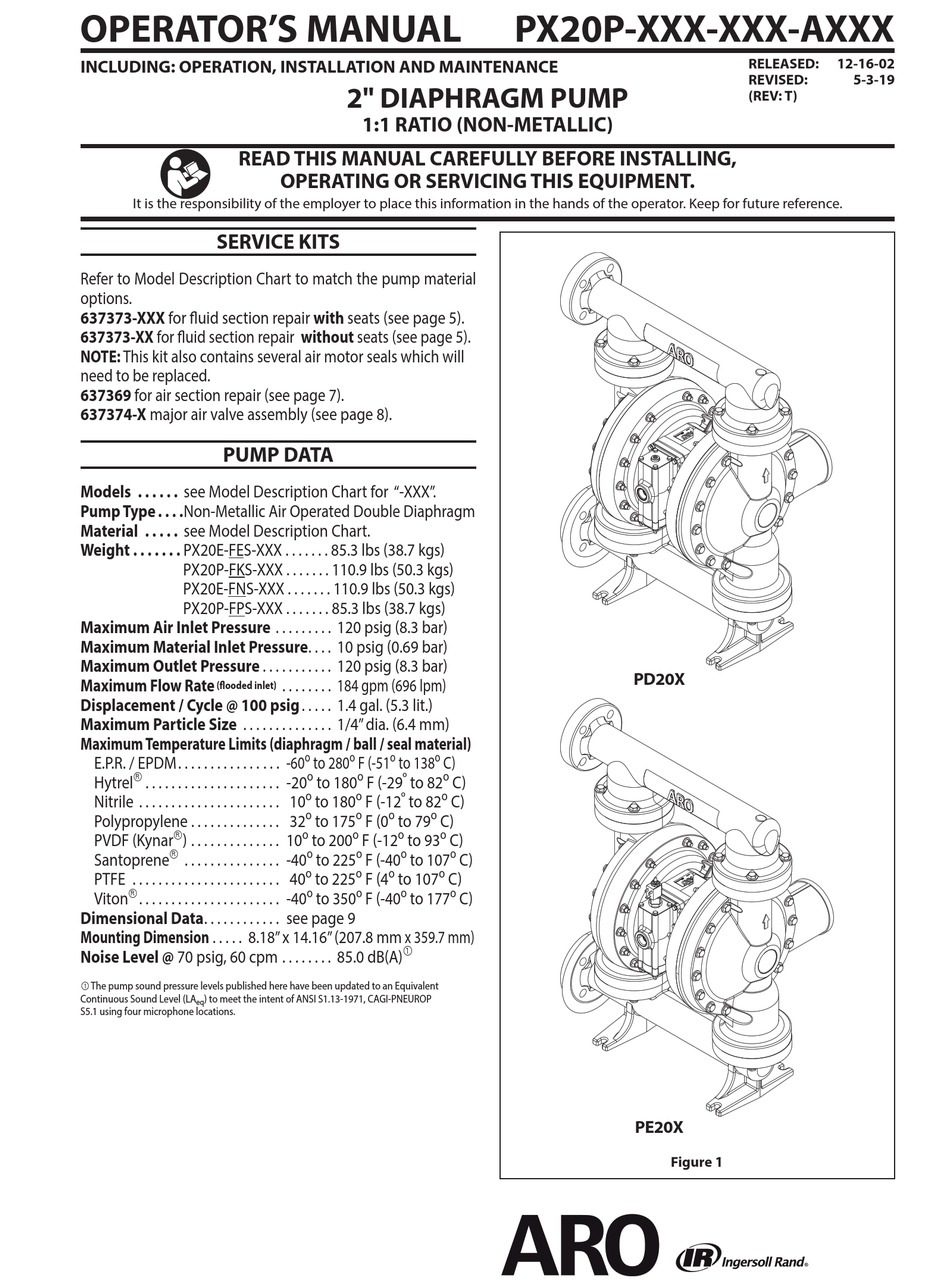

OPERATOR'S MANUAL
INCLUDING: OPERATION, INSTALLATION AND MAINTENANCE
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
It is the responsibility of the employer to place this information in the hands of the operator. Keep for future reference.
SERVICE KITS
Refer to Model Description Chart to match the pump material
options.
637373-XXX for uid section repair with seats (see page 5).
637373-XX for uid section repair without seats (see page 5).
NOTE: This kit also contains several air motor seals which will
need to be replaced.
637369 for air section repair (see page 7).
637374-X major air valve assembly (see page 8).
PUMP DATA
Models . . . . . . see Model Description Chart for "-XXX".
Pump Type . . . .Non-Metallic Air Operated Double Diaphragm
Material . . . . . see Model Description Chart.
Weight . . . . . . . PX20E-FES-XXX . . . . . . . 85.3 lbs (38.7 kgs)
PX20P-FKS-XXX . . . . . . . 110.9 lbs (50.3 kgs)
PX20E-FNS-XXX . . . . . . . 110.9 lbs (50.3 kgs)
PX20P-FPS-XXX . . . . . . . 85.3 lbs (38.7 kgs)
Maximum Air Inlet Pressure . . . . . . . . . 120 psig (8.3 bar)
Maximum Material Inlet Pressure . . . . 10 psig (0.69 bar)
Maximum Outlet Pressure . . . . . . . . . . . 120 psig (8.3 bar)
Maximum Flow Rate
(flooded inlet)
Displacement / Cycle @ 100 psig . . . . . 1.4 gal. (5.3 lit.)
Maximum Particle Size . . . . . . . . . . . . . . 1/4" dia. (6.4 mm)
Maximum Temperature Limits (diaphragm / ball / seal material)
E.P.R. / EPDM . . . . . . . . . . . . . . . . -60 to 280 F (-51 to 138 C)
Hytrel . . . . . . . . . . . . . . . . . . . . . -20 to 180 F (-29
Nitrile . . . . . . . . . . . . . . . . . . . . . . 10 to 180 F (-12
Polypropylene . . . . . . . . . . . . . . 32 to 175 F (0 to 79 C)
PVDF (Kynar ) . . . . . . . . . . . . . . 10 to 200 F (-12 to 93 C)
Santoprene . . . . . . . . . . . . . . . -40 to 225 F (-40 to 107 C)
PTFE . . . . . . . . . . . . . . . . . . . . . . . 40 to 225 F (4 to 107 C)
Viton . . . . . . . . . . . . . . . . . . . . . . -40 to 350 F (-40 to 177 C)
Dimensional Data . . . . . . . . . . . . see page 9
Mounting Dimension . . . . . 8.18" x 14.16" (207.8 mm x 359.7 mm)
Noise Level @ 70 psig, 60 cpm . . . . . . . . 85.0 dB(A)
The pump sound pressure levels published here have been updated to an Equivalent
Continuous Sound Level (LA
) to meet the intent of ANSI S1.13-1971, CAGI-PNEUROP
eq
S5.1 using four microphone locations.
2" DIAPHRAGM PUMP
1:1 RATIO (NON-METALLIC)
OPERATING OR SERVICING THIS EQUIPMENT.
. . . . . . . . 184 gpm (696 lpm)
º
to 82 C)
º
to 82 C)
PX20P-XXX-XXX-AXXX
PD20X
PE20X

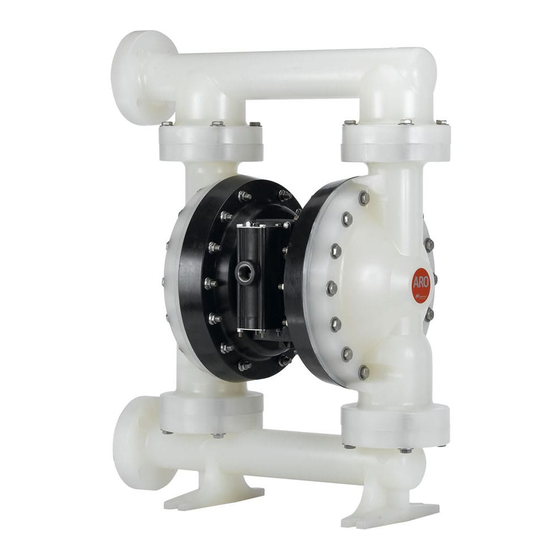

Figure 1
RELEASED:
12-16-02
REVISED:
5-3-19
(REV: T)
