Lantronix SM12DP2XA Quick Start Manual

SM12DP2XA
Managed Gigabit Ethernet Fiber Switch
Quick Start Guide

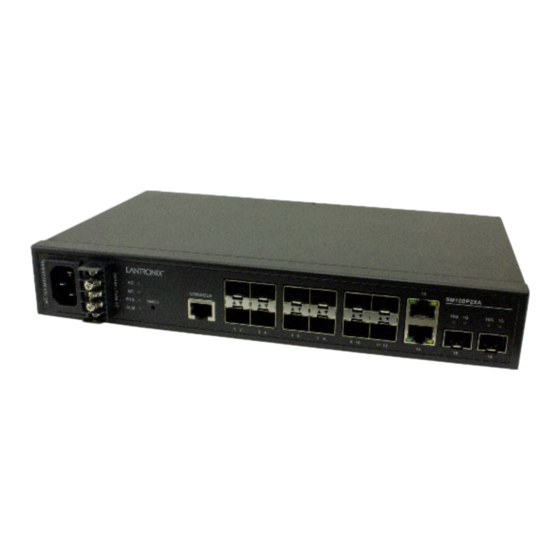

The SM12DP2XA L2+ Managed Switch is a next-generation Fiber Switch offering full suite of L2 features and
additional 10GbE uplink connections. The SM12DP2XA provides twelve GbE SFP ports, two RJ45 ports, two 10GbE
SFP+ ports and an RJ45 Console port with built-in AC and DC dual power inputs. It provides front panel access to
all power, data and management ports in a compact form factor to facilitate desktop, wall-mount, or rack-mount
installations.
See the Install Guide for important Cautions and Warnings, Compliance and Safety Statements, Key Features,
Specifications, Front Panel, Site Preparation, Installation, Cabling, Unpacking, Mounting, Connecting to Power,
Initial Switch Configuration, and Troubleshooting, Warranty, Support and Compliance information.
Unpacking
: 1. Carefully unpack all SM12DP2XA contents. 2. Verify receipt of all SM12DP2XA components.
3. Place the SM12DP2XA and related materials near the install location.

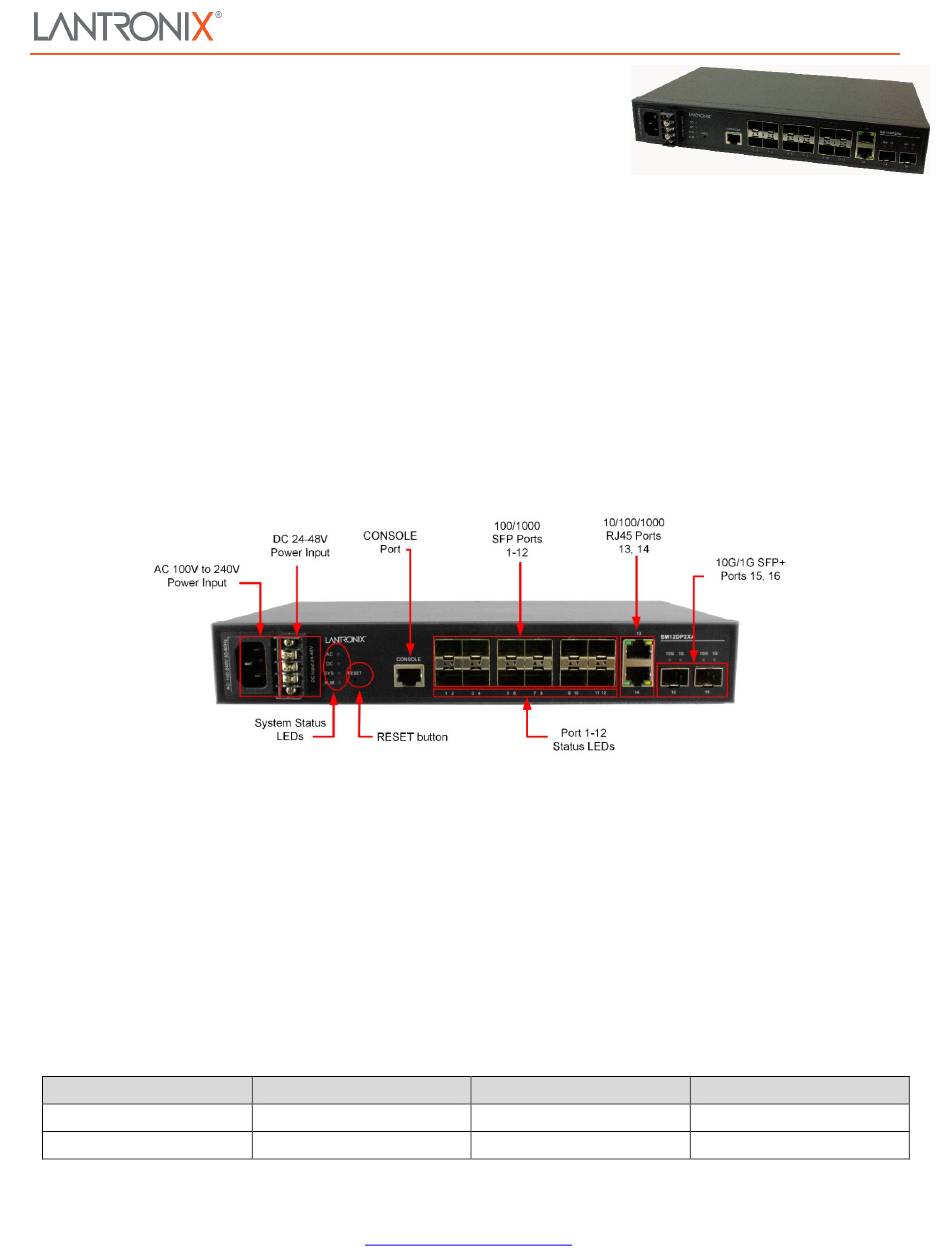

Front Panel
: The switch front panel contains the power inputs, ports, LEDs and RESET button.
RJ-45 Ports: The switch contains 10/100/1000BASE-T RJ-45 ports. All RJ-45 ports support automatic MDI/MDI-X
operation, auto-negotiation and IEEE 802.3x auto-negotiation of flow control.
SFP and SFP+ Slots: The switch supports Small Form Factor Pluggable (SFP) transceiver slots port 1 to port 12,
and port 15 to port 16 are 10G SFP+. By default, if an SFP transceiver is installed in a slot and has a valid link on
the port, the associated RJ-45 port is disabled.
CONSOLE Port: The switch has one RJ-45 CONSOLE port for CLI access via the provided RS232 DB9 to RJ45
Cable. Note: Cross-over cabling to the CONSOLE port is not supported.
Front Panel LEDs: The switch includes a LED panel for system and port indications that simplify installation and
network troubleshooting. See the Install Guide for Port Status LED and System Status LED details.
RESET Button
: press and hold for 2-7 seconds to reset or 7-12 seconds to restore to factory defaults:
Task
Reset the Switch
Restore to Defaults
Mounting
: Mount the switch in a standard 19-inch equipment rack, on a desktop, or shelf; see the Install Guide.
33750 Rev. F
Press RESET button for
2 ~ 7 seconds
7 ~ 12 seconds
https://www.lantronix.com/
SYS LED Behavior
Blinking Green
Blinking Green
SM12DP2XA Quick Start Guide
Port Status LED Behavior
All LEDs OFF
All LEDs stay ON
Page 1 of 2
