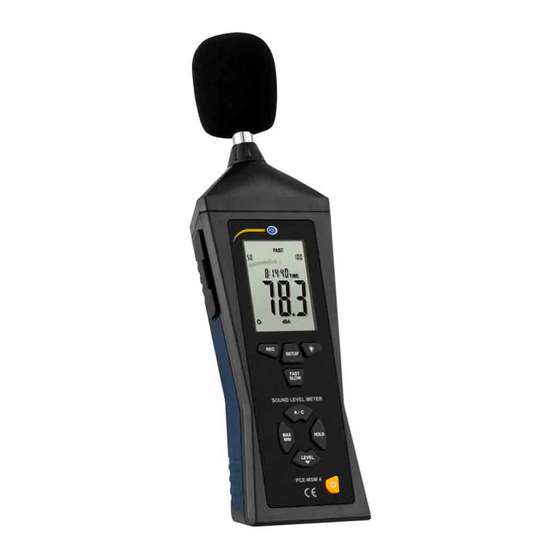

- Page 1 User Manual PCE-MSM 4, PCE-322A, PCE-323 Sound Level Meter User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 7 November 2022 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Bluetooth connection (PCE-323 only)..........11 10 PC connection ..................11 10.1 Driver ..........................12 10.2 Software operation ......................14 11 Mains adaptor ..................16 12 Analogue output .................. 17 13 Calibration ................... 17 14 Contact ....................18 15 Disposal ....................18 © PCE Instruments... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
1 x sound level meter 1 x mini tripod 1 x screwdriver 1 x carrying case 1 x 9 V block battery 1 x user manual 1 x mains adaptor The software can be downloaded here: https://www.pce-instruments.com/english/download-win_4.htm © PCE Instruments... -
Page 5: Device Description
Device description Description Microphone with windscreen Connections for power supply, mini-USB, analogue outputs, calibration screw Display Keyboard Battery compartment (rear) © PCE Instruments... -
Page 6: Keyboard Description
"A / C" key for switching between frequency weightings A and C "HOLD" key to freeze the display On / off key "LEVEL" key for setting the sound level range "MAX MIN" key to activate the "MIN / MAX" function © PCE Instruments... -
Page 7: Display Description
Automatic power off is active Battery is discharged and must be replaced File recording is started (PCE-322A, PCE-323 only) Data memory is full (PCE-322A, PCE-323 only) Frequency weighting A Frequency weighting B Display is frozen Level range is set automatically © PCE Instruments... -
Page 8: Switching The Meter On And Off
To freeze the displayed reading, press the "HOLD" key. HOLD" appears on the display. To resume the measurement, press this key again. 5.1.6 Backlight To switch on the backlight, press the backlight key. To switch off the backlight, press the key again. © PCE Instruments... - Page 9 You can then select the minute, hour, day, month and year one after the other using the "SETUP" key and set them with the "LEVEL" key. When setting the hours, h-P stands for PM and h-A for AM. Home view Setting the minute © PCE Instruments...
- Page 10 Setting the hour Setting the day Setting the month © PCE Instruments...
-
Page 11: Automatic Power Off
Now you can set the date and time. Automatic power off To disable the automatic power off, press the "SETUP" key. If the icon is no longer displayed, the automatic power off is deactivated. Press this key again to reactivate automatic power off. © PCE Instruments... -
Page 12: Data Logging (Pce-322A, Pce-323 Only)
Open the battery compartment by first unscrewing the screw with a screwdriver. Remove the battery and insert a new 9 V block battery. Then screw the battery compartment back in place. Now you can resume the measurement. © PCE Instruments... -
Page 13: Bluetooth Connection (Pce-323 Only)
Note: The connection must not be established via the Bluetooth setting of your mobile end device. Android Within the app, you can open the manual by tapping on "HELP" and then on "OPEN APP MANUAL". PC connection To establish a PC connection, first disable automatic power off using the "SETUP" key. © PCE Instruments... -
Page 14: Driver
Once the PC has restarted, you can switch on the meter and connect it to a free USB port on the computer. The driver is now automatically installed and the device appears in the device manager of the computer. Open the device manager via Start -> Control Panel -> System -> Device Manager. © PCE Instruments... - Page 15 By default, the automatic assignment is active, so you do not have to make any settings here. If you have connected several measuring instruments, you can set the COM port via manual mode. © PCE Instruments...
-
Page 16: Software Operation
Highest volume of the measurement series with point in time DataNo. Number of points measured Sample Rate Sampling rate Average Average sound level of the measurement series Graph Representation as a graph Data List Display as data list UnDo Zoom Zoom out © PCE Instruments... - Page 17 You can enlarge individual points within the graph by clicking on the desired area with the left mouse button and holding it down. Now enlarge the desired observation field with the mouse until the desired area is reached. Then release the mouse button and the area is enlarged accordingly. © PCE Instruments...
-
Page 18: Mains Adaptor
If you are using the mains adaptor, connect it to the 9 VDC connector on the side of the meter. Note: Do not connect the mains adaptor to the meter during a measurement in battery mode, otherwise the meter will switch off. © PCE Instruments... -
Page 19: Analogue Output
Frequency rating: A Time rating: Almost Level range: 50 ... 100 dB Now switch on both devices and check the displayed measured value. If it is outside the specifications, it can be adjusted using the adjustment screw. © PCE Instruments... -
Page 20: Contact
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 21 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
