- Page 1 User Manual PCE-MCM 10 Clamp Meter User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 7 June 2023 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Switching the meter on and off ............5 Automatic power off......................5 Making a measurement ................ 5 Carry out zeroing ......................5 Freeze measured value ....................6 Torch ...................... 6 Replace / insert batteries ..............6 Contact ....................7 10 Disposal ....................7 © PCE Instruments... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
1 m / 3.3 ft Weight 268 g / 0.6 lbs with batteries inserted Delivery scope 1 x PCE-MCM 10 1 x transport bag 2 x 1.5 V AA battery 1 x user manual © PCE Instruments... -
Page 5: Device Description

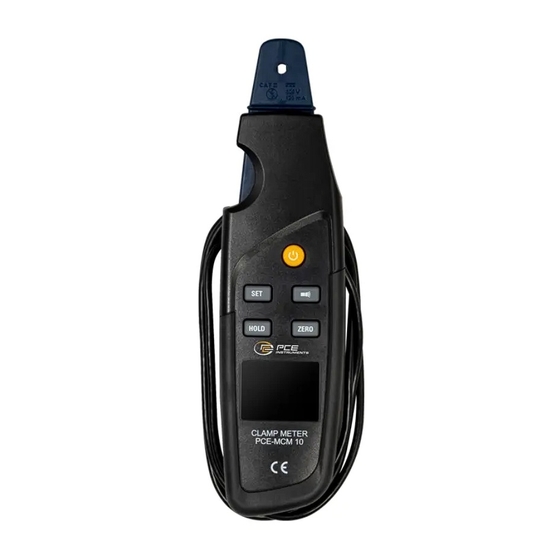

Current clamp Current clamp compartment / removed current clamp On and off key On/off key for automatic power off On and off key for the torch Freeze measured value (HOLD) Zero display LC display Torch Battery compartment © PCE Instruments... -
Page 6: Display Description
20 mA 100.0 % Formula: displayed percentage = 6.25 x measured value - 25 Icons Icon Description Keep away from dangerous live wires Important information Risk of electric shock Meter insulated according to class 2 Batteries Direct current © PCE Instruments... -
Page 7: Switching The Meter On And Off
To perform zeroing, press and hold the "ZERO" key for two seconds until "ZERO" lights up once briefly on the display. The measured value is now zeroed Note: Zeroing does not increase the measurement range. When zeroing, the current clamp must not be wrapped around a test lead. © PCE Instruments... -
Page 8: Freeze Measured Value
To replace or insert the batteries, first switch off the meter and disconnect the clamp from the test lead. Then open the battery compartment on the back. Insert new batteries and close the battery compartment again. The measuring device can now be used again. © PCE Instruments... -
Page 9: Contact
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 10 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
