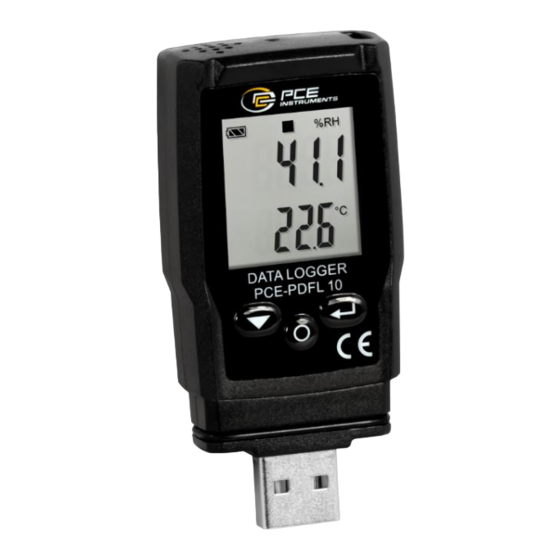

- Page 1 User Manual PCE-PDFL 10 Climate Meter User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 7 May 2024 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
LED status display ................13 10 Perform firmware upgrade ..............14 11 Reset firmware ..................14 12 Delete data memory ................14 13 Opening the battery compartment ............ 15 14 Contact ....................16 15 Disposal ....................16 © PCE Instruments... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
75 x 35 x 15 mm / 3 x 1.4 x 0.6 in Weight 33 g / <1 lb Delivery scope 1 x PCE-PDFL 10 climate meter 1 x 3 V button battery (CR2450) 1 x software CD 1 x user manual... -
Page 5: Device Description
Device description Description Sensors Loop connection Display Arrow down key Enter key Unlock key for battery replacement Interface protection cap © PCE Instruments... -
Page 6: Display Description
Measured values are within the set limit values. Green LED glows. Measured values are outside the set limit values. Red LED glows. 4.1.2 Battery status display Display Meaning Battery is fully charged Battery is OK Battery is low Battery is flat and must be replaced immediately © PCE Instruments... - Page 7 Storage rate in Possible recording Storage rate in Possible recording minutes time in days minutes time in days 74.1 18.5 92.6 27.8 111.2 37.1 139.0 46.3 185.3 55.6 231.6 64.8 277.9 © PCE Instruments...
-
Page 8: Making The Data Logger Settings
Recording starts as soon as the set start time is reached and ends as soon as the set stop time is reached. Circular logging Recording starts immediately and does not end. The oldest data point is overwritten as soon as the memory is full. © PCE Instruments... - Page 9 The logger can be named here. A maximum of 32 characters can (maximum 32): be used. Default Use this button to reset all settings. Setup This button is used to apply all settings made. Cancel Use this button to cancel the settings. © PCE Instruments...
-
Page 10: Pdf Report Settings
Date: Date Time: Time Location: Name of the set location OK: Settings are applied Cancel: Window is closed and the settings are not applied Clear: "PDF Name" field is reset Date Format Date format Time Format Time format © PCE Instruments... - Page 11 The logger can be named here. A maximum of 32 characters 32): can be used. Default Use this button to reset all settings. Setup This button is used to apply all settings made. Cancel Use this button to cancel the settings. © PCE Instruments...
-
Page 12: Live Data Settings
The logger can be named here. A maximum of 32 characters (Maximum 32) can be used. Default Use this button to reset all settings. Setup This button is used to apply all settings made. Cancel Use this button to cancel the settings. © PCE Instruments... -
Page 13: Diagram Of The Software
"Show Point Values" as soon as the mouse pointer is on this point. Un-Zoom The zoom goes back one step Undo All Zoom/Pan The entire zoom is reset Set Scale to Default Scaling is reset © PCE Instruments... -
Page 14: Start And End Manual Recording
Display remaining recording time To view the remaining recording time, briefly press the key once during recording. The remaining time is displayed under "TIME". Important: This display does not take the battery into account. © PCE Instruments... -
Page 15: Lowest And Highest Measured Value
- Manual mode started. Meter is waiting to be started by the user - Memory is full - Data recording was cancelled by pressing a key Double - Settings have been successfully applied flashing in - Firmware was successfully adopted green © PCE Instruments... -
Page 16: Perform Firmware Upgrade
To delete all measurement data, press and hold all keys and connect the device to the PC. Note: If the meter generally does not respond, the measured values must be deleted or the firmware must be reinstalled. © PCE Instruments... -
Page 17: Opening The Battery Compartment
The CR2450 button battery works best at room temperature. The battery life is reduced at very low temperatures. To increase the battery life, the highest possible storage rate should be selected during a measurement and the display should be switched off. © PCE Instruments... -
Page 18: Contact
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 19 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mula, 8 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
