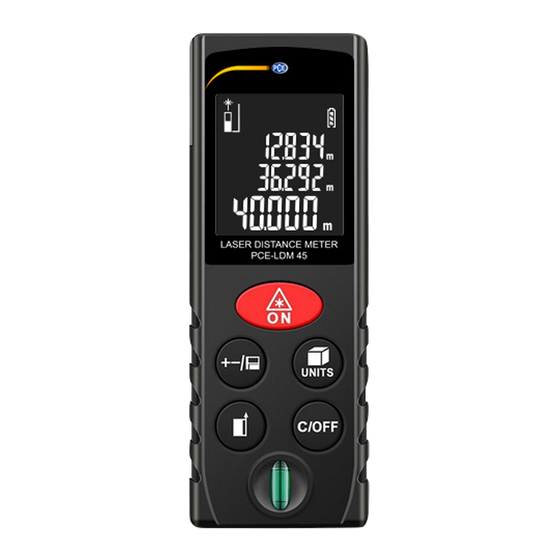

- Page 1 User Manual Laser Distance Meter PCE-LDM 45 User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 11 October 2018 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Single measurement mode ....................6 Continuous measurement mode ..................6 Functions ....................7 Addition and Subtraction Functions .................. 7 Storage and Recall of Measurements ................8 10 Troubleshooting ..................8 11 Warranty ....................9 12 Disposal ....................9 © PCE Instruments... -
Page 3: Safety Notes
The measurement range as stated in the specifications must not be exceeded under any circumstances. • The PCE-LDM 45 is a class II laser product. Do not stare into beam at any time when operating this product, even with optical aids like a binocular or telescope. •... -
Page 4: Basic Functions And Features
76 g / < 1 lb without batteries Environmental conditions 0 ... 40°C / 32 ... 104°F Storage conditions -20 ... 65°C / -4 ... 149°F Automatic shutdown laser 30 seconds Automatic shutdown laser distance meter 180 seconds © PCE Instruments... -
Page 5: Meter Description
Meter description Laser “on” Unit Reference Area / volume Pythagoras function Current reading Hardware error Intermediate value Intermediate value Battery status © PCE Instruments... -
Page 6: Keys
1. Please do not mix new and old batteries, use alkaline batteries or rechargeable batteries only. 2. Please replace batteries when the symbol flashes permanently in the display. 3. Please remove the batteries before any long period of non-use. © PCE Instruments... -
Page 7: Equipment Operation
Equipment Operation Switch on and off Push the On/Measuring button to switch on the equipment. The PCE-LDM 45 will show its start display as shown in the figure below. The unit of measurement last set is taken over. The laser will be switched off automatically after 30 seconds and the equipment will be powered off after 3 minutes of inactivity (“Auto Off”... -
Page 8: Measurement
When the equipment is switched on, pushing and holding the On/Measuring button will aktivate continuous measurements. MIN: MINIMUM VALUE MAX: MAXIMUM VALUE The current measurement value is displayed in the bottom line of the LCD as shown in the figure below. © PCE Instruments... -
Page 9: Functions
Icon Area Measurement Volume Measurement Pythagorean Theorem Addition and Subtraction Functions + The current measurement result is added to the previous one - The current measurement result is subtracted from the previous one, see the following figure © PCE Instruments... -
Page 10: Storage And Recall Of Measurements
Change batteries Err15 Out of range Measure target within the range Err16 Received signal Use light colour target; too weak Hold Quick Measure more steady Err18 Background Use dark coloured target brightness too high Err26 Out of display © PCE Instruments... -
Page 11: Warranty
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 12 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
