Introduction

p D
roDuCt esCriptioN
6
The Winnox version 1 is a nozzle-mix type, low-emmisions burner
designed for direct air heating, indirect air heating, and oven
applications up to 1800°F (980°C).
The burner package includes a combustion air blower and an
air:gas ratio regulator to fire over a wide gas turndown range at a
controlled ratio.
The burner is designed for:
• low NO and CO emmisions
X
• efficient ratio controlled combustion
• reliable burner operation
• simple burner adjustment
• direct spark ignition
• multiple fuel capability
The wide variety of options and configurations are available due to
the modular design of the burner.

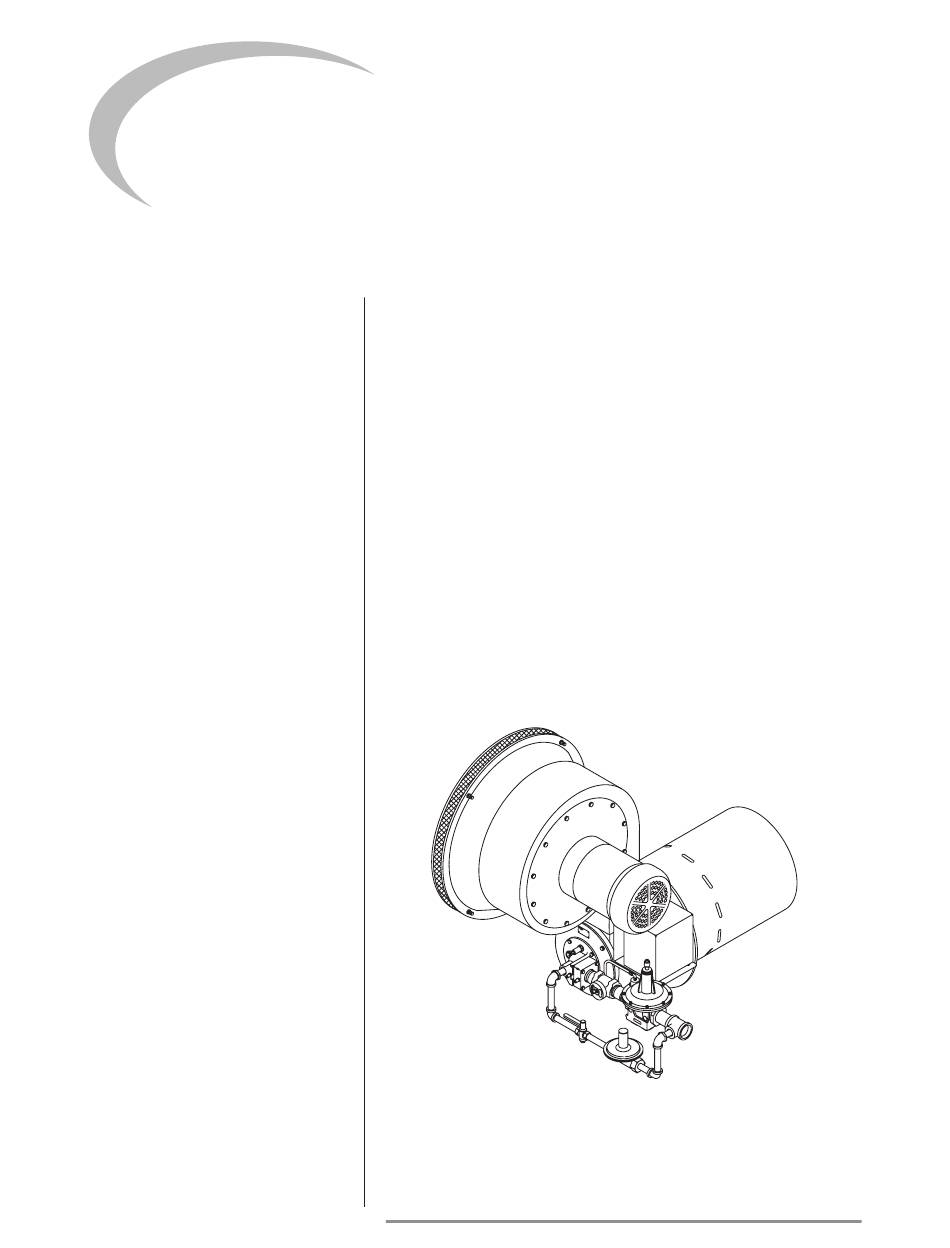

Figure 1.1 The Winnox Burner
