Page 2: Foreword
Foreword General This manual explains the functions and uses of the HDCVI camera (hereinafter, "the device"). Security instructions The following classified signal words with defined meaning may appear in the manual. signal words Meaning Indicates a highly potential hazard which, if not avoided, will result in death or serious injury. - Page 3 Even so, there may be some deviation in the technical data, functions and description of operations, or printing errors. If there is any doubt or dispute, we reserve the right of final explanation. Please update the reader software or try other conventional reader software if you cannot open the manual (in PDF format).
- Page 4 Safety Warnings and Precautions important electrical safety All instructions for use and installation must be carried out in accordance with the electrical safety regulations of your country. The power supply must meet the requirements of the SELV standard (Safety Low Voltage) and supply power with the nominal voltage, which meets the limited power supply requirements according to the ICE62368-1 standard.
- Page 5 CAVEAT Please use components or accessories supplied by the manufacturer, and make sure that professional engineers perform the installation and maintenance of the device. The image sensor surface must not be exposed to laser beam radiation in an environment where a laser beam device is used. Do not supply two or more power sources for the device;...
-
Page 6: Table Of Contents
Index of contents Foreword.................................II Important safety warnings and precautions ................ IV 1 Overview ..................................8 Introduction ............................8 App............................8 Transmission distance........................9 2 Wire connection...............................10 Power outlet..........................10 12 VDC power input port.............. - Page 7 Device installation ........................31 9 Fisheye camera setup.......................33 Fisheye dewarping in the live interface ............33 Fisheye dewarping during playback ............3. 4 10 Frequently Asked Questions............................36 PoC power supply......................36 Long-distance feeding ....................36 Centralized power supply ....................37 Connector water protection ...........
-
Page 8: Overview

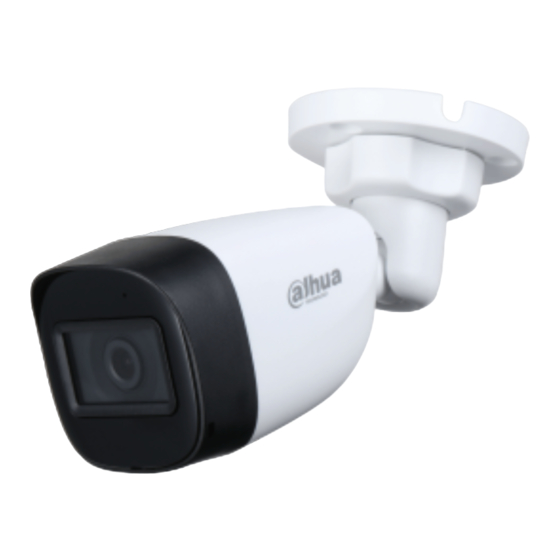

1 Overview Introduction The device complies with the HDCVI standard and supports video transmission and signal control over coaxial cable. The device produces megapixel resolution video signal and needs to be connected to XVR to achieve high speed, long distance and no delay in signal transmission. -
Page 9: Transmission Distance
transmission distance Table 1-2 Transmission distance 720p Cable 1080p 4MP/4K 800m 700m RG6 (75-5) 1200m Coaxial cable 800m 500m 500m RG59 (75-3) CAT6 450m 300m 300m Table 1-3 Transmission distance of PoC HDCVI enabled by PoC XVR PoC mode RG59 XVR PoC Series 100m 100m... -
Page 10: Wire Connection
2 Wire connection Cable types may vary depending on the cameras and the actual product shall prevail. power outlet Supplies 12 VDC power. Check that the power consumption of the devices connected to this port is less than 2W. Make sure the power frequency of the devices connected to this port is higher than 1 MHz, such as sound pickup, temperature/humidity sensor and other devices without change of energy consumption. -
Page 11: Video Output Port
Device malfunction or damage may occur if power is not supplied correctly. Be sure to supply power as indicated in the manual. 24 VAC power input port video out port Connects the XVR to a video output signal. CAVEAT When the device is in PoC power mode, please do not connect another device between device and PoC XVR or PoC transceiver, including UTC, Balun, optical transceiver, distributor, converter, etc.;... -
Page 12: Dip Switch
alarm output port DIP switch The DIP Switch changes to change the output mode. Moving up the switch sets "ON", and lowering it indicates "OFF". DIP switch Table 2-1 Using the DIP switch switch1 switch2 output mode CVBS SWITCHED ON SWITCHED ON SWITCHED ON SWITCHED ON... - Page 13 HDCVI aviation connector Table 2-2 HDCVI aviation connector components Name Name (White): Connector (Yellow): Video video earth (Black): Power (Red): Power Neutral...
-
Page 14: Configuration And General Use
3 Configuration and general use Power on the device and connect it to the XVR with a coaxial cable. Then the live interface will be displayed. You can then start configuring the HDCVI cameras on the XVR. The # of the XVR's coaxial ports will appear in the lower left corner of each window to indicate the corresponding camera. - Page 15 In the interface ofMain menu(Main Menu), selectCAMERA > ENCODE > encode(CAMERA > ENCODE > Encode). In the drop down list ofChannel I(Channel l), select the device that you want to set according to the coaxial port no. Inmain stream(Main Stream), clickmore settings(More Setting).
-
Page 16: Operate The Ptz Control Panel
Operate the PTZ control panel 3.3.1 OSD operation menu OSD menus of different cameras may vary, and the actual product shall prevail. When you use the OSD menu to restore the device to the default settings, The device's resolution, mode, frame rate, and language will not be restored. In the live interface, right click the device you want set up. -
Page 17: Using Autofocus (Af)
Menu Usage Panel Table 3-1 Menu Usage Panel Function Function Function Button Button Access or confirm an item Select an item intro Cancel Exit OSD menu Change element value The OSD menu of the corresponding device will appear on the live interface. If the value of OSD item is "... - Page 18 Description Parameter : Focus close. : Autofocus. Diaphragm : Open the OSD menu. PTZ movement Compatible with 8 directions. Click on and then you can control the four directions (left, right, up and down) of the PTZ using the mouse. Click on to display the PTZ control panel.
-
Page 19: Camera Smart Light Setup
4 Smart light setup camera This chapter explains how to set the operating modes of the smart light, including automatic and manual mode. Smart Light will automatically change the white light brightness based on ambient lighting conditions to prevent overexposure. Smart light is only available on full color cameras. - Page 20 The higher the value, the easier it is to activate the smart light. The sensitivity level is 3 by default. Click onReturn(Return) and thenLeave(Exit) to leave the setting. twenty...
-
Page 21: Configuration Of The Temperature And Humidity Chamber
5 Configuration of the temperature chamber and humidity The temperature and humidity camera can measure the ambient temperature and humidity and display the value on the live interface. Activate/Deactivate temperature and humidity In the OSD menu (Figure 3-7), selectAdvanced > Temp. and humidity (Advanced > Temp. &... -
Page 22: View Temperature And Humidity
Adjust the display of temperature and humidity. Right click anywhere on the monitoring image to return to the interface above after all settings are completed. View temperature and humidity Right click on the live interface to enter the main menu of the XVR (Figure 3-1). -
Page 23: Set The Activation Mode
6 Activate camera settings deterrent Activating the deterrence camera can actively warn intruders with LEDs even before users are aware of the breach. Once the intrusion is detected, the LED will turn on to alert the intruder. PIR Detector Detection Range The horizontal detection range of the sensor is 100°... -
Page 24: Configuring The Acoustic Alarm And Light Warning
If you selectCamera(Camera Set), the acoustic and light alarm will be triggered on the device. If you selectXVR(XVR Set), the acoustic and light alarm will be triggered on the XVR. To see more information aboutXVR(XVR Set), refer to the XVR user manual. Set the acoustic alarm and light warning This function is only available when the activation mode is set toCamera (Camera Set). -
Page 25: Entrance Camera Setup
7 Entrance camera configuration This feature is available on select models. This series of devices can serve as the input to connect compatible wireless node devices such as door/window contacts, sirens and PIR detectors to the XVR to form a local alarm network. Once an alarm from a device on the network is triggered, the device transmits an alarm signal according to the settings. - Page 26 Add sensor linkage (1) On the listaccess type(Access Type), selectdoor camera link (Camera Gateway). Click onLink(Pair) and the device will enter pairing mode. Use the node device and enter pairing mode. Add sensor linkage (2) Click onBehind(Back). Click on to modify the device name and click remove the node device.
- Page 27 connected device...
-
Page 28: Box Camera Installation
8 Box camera installation The lens is not installed on the device when it leaves the factory and is required install it. Do not remove the electrostatic absorption film on the surface of the transparent cover before finishing installation and debugging to avoid damage during installation. -
Page 29: Installing The Type 2 Lens
Lens installation (1) 8.1.2 Install the type 2 lens Front panel Table 8-1 Front Panel Components Name Name lens detach button red sign Remove the protective lens cap from the device, align the red sign on the lens with red sign①device, turn it clockwise until the lens detach button②exit up. The lens installation is complete. -
Page 30: I/O Port Installation
Lens installation (2) Table 8-2 Lens components Name Name Screw focus ring After focusing, tighten the focusing ring screw and fix it. To detach the lens, press the lens detach button ②, turn the lens clockwise counterclockwise and release the buckle. I/O port installation 8.2.1 Cable connection Hold down the mini screwdriver to press the slot button... -
Page 31: Device Installation
Release the screwdriver. remove the wire Device installation The device is supplied without the bracket and mounting screw. You will have to buy them separately. device components Table 8-3 Device components Name Name Lens Mounting bracket Front panel Tapping screw Fixing screw expansion bolt Bracket adjustment screw... - Page 32 Align the mounting hole positions on the bottom of the device case with the mounting hole positions on the mounting bracket ②, and then install the device on the mounting bracket with the fixing screw ②. Adjust the monitoring angle of the camera. Use a wrench to loosen the adjustment screw ②, adjust the camera to the place to be monitored, and then use the wrench to tighten the bracket adjustment screw ②...
-
Page 33: Fisheye Camera Setup
9 Fisheye Camera Setup The fisheye camera (panoramic camera) has a wide monitoring angle, but the video is distorted. The spherical correction function can provide a video image suitable and vivid for human eyes. The fisheye function should be configured on the XVR. Fisheye dewarping in the live interface In the XVR shortcut menu, selectFish eye(Fisheye). -
Page 34: Fisheye Dewarping During Playback
Icon Description adjusted mode 4 spherical correction windows and 1 panoramic enlarged window 1 360° panoramic window and 8 spherical correction windows Original 360° panoramic window Panoramic enlarged window 1 panoramic display window and 3 spherical wall mount correction windows 1 panoramic display window and 4 spherical correction windows 1 panoramic display window and 8 spherical... - Page 35 Step 2: Select 1-window playback mode and fisheye channel and then click to play it. Step 3: Right click to go to playback interface with spherical correction.
-
Page 36: Frequently Asked Questions
10 Frequently Asked Questions PoC power supply PoC XVR supports PoC function. PoC camera can be divided into AT camera and AF camera. The power consumption of the AT camera is less than 12 W and the power consumption of the AF camera is less than 6 W. You must check the maximum power of PoC before using it. -
Page 37: Centralized Power Supply
centralized power supply The usual problem with a centralized power supply is that obvious black stripes appear on the device screen, interfering with display. The principle of centralized power is as follows: Centralized feeding principle CAM1 CAM2 CAM3 CAM4 The power output of CAM4 has two paths, return path 1 and return path 2. Reflow 2 first flows to CAM1 and then flows to the power supply from the power supply ground of CAM1. - Page 38 Water protection measures...
-
Page 39: Maintenance
11 Maintenance To maintain image quality and correct device operation, Please read the following maintenance instructions carefully and keep a strong adhesion. Disassembly and replacement of the desiccant Carefully follow the instructions in the manual when performing any device disassembly operations;...
