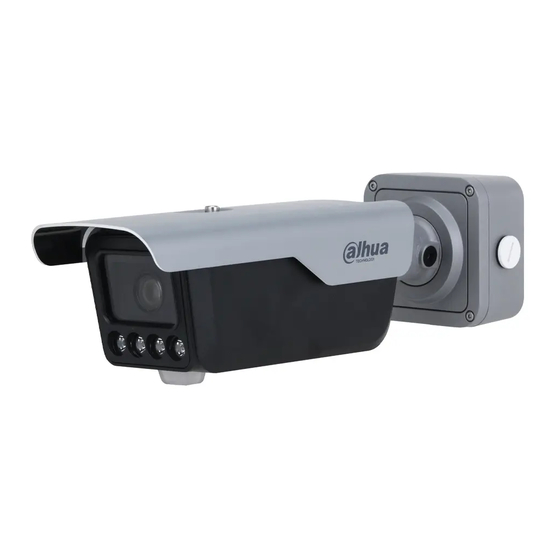

- Page 1 Smart ANPR Camera (ITC413-PW4D-XXX) Installation and Configuration Manual ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.0...
- Page 2 Installation and Configuration Manual Foreword Disclaimer In actual use, you can calculate the arming data by Project Design Tool according to the device model, or send emails to R&D personnel for arming data. The tool calculates the data as if there is a sufficient amount of illumination by default.
-
Page 3: Table Of Contents
Installation and Configuration Manual Table of Contents Foreword ............................I 1 Overview ............................1 Purpose ..............................1 Front-end System Structure ........................1 1.2.1 Front–end Device Layout ......................1 1.2.2 Front–end Device List ........................1 2 Installation ............................ 3 Single-camera Solution Description ......................3 Installation ............................. -
Page 4: Overview
Installation and Configuration Manual Overview Purpose This document provides construction standards for sales, technical supports, and construction engineers to ensure that the system construction meets standards. Front-end System Structure 1.2.1 Front–end Device Layout The following takes single-camera solution as an example (one camera at the entrance and one at the exit). - Page 5 Installation and Configuration Manual charging computers, cabinets, and more. The following takes the scenario with one entrance and one exit as an example, and the system list is shown in Table 1-1. Table 1-1 Front-end device list for card-free parking lot with one entrance and one exit Item Model Quantity Remarks...
-
Page 6: Installation
Installation and Configuration Manual Installation This chapter introduces the standard entrance and exit scenarios with 413 series cameras. For details on camera installation, see Table 2-1. Single-camera Solution Description The card-free system is an entrance and exit management system based on vehicle license plates. The license plate is extracted by the entrance and exit cameras through video analysis during vehicle passing. - Page 7 Installation and Configuration Manual The distance between the exit barrier gate and the exit camera is 400 mm. The distance between the exit camera and the guard booth side is 1100 mm. The guard booth diameter is 1500 mm. ...
-
Page 8: Installation
Installation and Configuration Manual Installation 2.2.1 Refuge Island and Guard Booth 2.2.1.1 Selecting Refuge Island Locations To select the location of refuge island, you need to consider the capture and recognition effect of cameras first, because many factors will affect the camera recognition effect, such as the channel width exceeding the camera monitoring capability, and inappropriate camera installation point. - Page 9 Installation and Configuration Manual Camera location plan The maximum passage width covered by the camera is 4 meters. If the passage width is larger than 4 meters, the channel should be physically isolated to make it meet the requirement. It is required that the distance between the camera mounting bracket and the passage boundary ...
- Page 10 Installation and Configuration Manual 2.2.1.2 Specifications Refuge island specifications Refuge island and guard booth specifications 2.2.1.3 Manufacturing Craft of Refuge Island When making the refuge island, you need to reserve the conduit, otherwise the conduit cannot be embeded in later stages. For details on conduit location, specification, and quantity, see Figure 2-7 Requirements of refuge island craft: The refuge island foundation should be more than 10 cm larger than the device dimensions to ...
- Page 11 Installation and Configuration Manual Material: 425# silicate cement and medium sand. The ratio of cement to sand is 1:2. The refuge island cannot be made with materials such as soil, stones, and bricks, which are not strong enough. Ground material requirements: ...
-
Page 12: Installing Cameras
Installation and Configuration Manual We recommend you use PVC pipes on the cement island, and KBG pipes under the island. You can select pipes with inner diameters greater than 70% of the total wiring area. Separately install pipes for strong and weak currents. ... - Page 13 Installation and Configuration Manual The license plate angle must not be larger than 5°. The pixels of license plate must meet the requirement of algorithm: A single-layer license plate is not less than 140 pixels; a double-layer license plate is not less than 80 pixels. Table 2-1 Recommended installation scenarios Installation Capture...
- Page 14 Installation and Configuration Manual The ambient brightness must be 10 lux or more. In night, cloudy, and other scenarios with insufficient light, you need to add illuminators. If the license plate does not reflect light, we recommend you use white light. The license plate should not be less than 140 pixels.
-
Page 15: Installing Anti-Smashing Radars
Installation and Configuration Manual Wall mount 2.2.2.4 Ceiling Mount Procedure Step 1 Drill holes on the ceiling according to the holes on the junction box. Step 2 Use 3 ST6.3 expansion screws to fix the junction box to the ceiling. Step 3 Tighten the screws on the end of the camera to fix it to the junction box. - Page 16 Installation and Configuration Manual Install the radar The barrier box must be fixed firmly, and the tilt angle of the box should be less than 5°. When installing a guardrail at one side of the lane, secure the guardrail to prevent it from moving ...
-
Page 17: Installing Barrier Gates
Installation and Configuration Manual 2.2.4 Installing Barrier Gates DHI-IPMECD-203X barrier gate box base DHI-IPMECD-303X barrier gate box base For details on barrier gate installation positions, see Figure 2-1. The installation surface of the foundation on which the barrier gate is installed should be level, ... -
Page 18: System Wiring
Installation and Configuration Manual System Wiring Ground all the ground holes on the devices used in the system to improve device reliability. Camera Wiring External cables Table 3-1 Cable parameters Function Description Image The camera sends out audio signal AUDIO OUT through this port. -
Page 19: Barrier Gate Wiring
Installation and Configuration Manual Function Description Image Alarm output, connecting to barrier, and Alarm out alarm output devices such as alarm light. Alarm input, connecting to vehicle Alarm in detector, IR detector, induction loop, and more. Connects to displays and other external RS-485 devices. - Page 20 Installation and Configuration Manual Connect the camera to DHI-IPMECD-203X barrier gate For DHI-IPMECD-302X barrier gate, connect NO1 cable of the camera to NO1 port (port 21 on the terminal), and COM1 cable to NC1 port (port 19 on the terminal) of the barrier gate motherboard. Connect the red cable of the anti-smashing radar to +12 V port (port 15 on the terminal);...
- Page 21 Installation and Configuration Manual Connect the camera to DHI-IPMECD-302X barrier gate Anti-smashing radar...
-
Page 22: Display Wiring
Installation and Configuration Manual For details on the wiring of barrier gate and anti-smashing radar, see corresponding user’s manual and other product documents. Display Wiring The external cables of the display are shown in the following figure, including the power cable and the signal cable. - Page 23 Installation and Configuration Manual Connect the display to the camera For details, see corresponding data of the display.
-
Page 24: System Configuration
Installation and Configuration Manual System Configuration Configuring the Software 4.1.1 Device initialization The Camera is delivered uninitialized by default. You need to initialize it, and change its password before further operations. Before initialization, make sure that both PC IP, and device IP are on the same network segment, otherwise it might fail to enter the initialization page. -
Page 25: Drawing Rules
Installation and Configuration Manual Step 5 Select the Email Address check box, and then enter your email address (recommended to set for resetting your password). Step 6 Click Confirm. Step 7 On the Online Upgrade interface, click Confirm. Config guide Step 8 Change the default IP address, subnet mask, and default gateway, and then click Finish. - Page 26 Installation and Configuration Manual Basic parameter Step 3 Click Drawing to see whether the video image is properly zoomed, and focused by checking the plate pixel. Drawing 1) Drag zoom, and focus bar to adjust the video image until the image is clear. 2) Follow the tips on the figure on the right side, draw the capture area of entering vehicles.
-
Page 27: Configuring Barrier Control
Installation and Configuration Manual A snapshot 4.1.3 Configuring Barrier Control You can set the barrier control mode, and configure information of opening, and closing barrier. Usually, the barrier closing signal is output by the radar. If the camera is required to output the signal, you need to configure the corresponding output port on the camera and connect this port with the barrier closing cable. - Page 28 Installation and Configuration Manual Parameter Description Select it, and enable the function of barrier always open. Configure Scheduled Barrier Always the period of barrier always open. The barrier will not close during the Open defined period. Enable Select it to enable barrier control, and configuration. Triggers alarm through different modes, and remotely controls the barrier opening and close.
-
Page 29: Setting Rs-485 Led Display
Installation and Configuration Manual Step 3 Click Connect, and then press the corresponding button the remote controller. You must press the button in 10 seconds. Step 4 (Option) To disconnect the remote controller, click Disconnect. Step 5 Click Save. Remote Controller 4.1.4 Setting RS-485 LED Display Connect the LED display with the Camera through RS-485, and then you can configure the status, display type, display color, action, speed, and more parameters of the LED. - Page 30 Installation and Configuration Manual RS-485 LED display Step 2 Configure parameters. Table 4-2 LED parameters description Section Parameter Description Displays the status of the screen, such as work state, Device Status ambient brightness, screen temperature and more. Set the work mode for the screen. ●...
-
Page 31: Configuring Voice Broadcast
Installation and Configuration Manual Section Parameter Description Passing Appears The display duration of the passing vehicle information On-screen for on the screen. ● Ambient Adaptive: The LED adjusts its brightness according to the ambient brightness. Set the Brightness Augment Brightness, the higher the value, the Adjustment bigger the brightness change. - Page 32 Installation and Configuration Manual Event broadcast Step 3 Select Enable to enable the function. Step 4 (Optional) Click Add Audio File, and then follow the on-screen instructions to upload audio files to be played when events are triggered. Step 5 Select the checkbox under the Enable column to enable an event.
- Page 33 Installation and Configuration Manual 4.1.5.2 Voice Broadcast Settings Configure the broadcast content, and the camera will broadcast the content when vehicles pass. Only certain devices support this function. Procedure Step 1 Select Setting > ANPR > Voice Broadcast Settings > Voice Broadcast Settings. Step 2 Enable one or more options.
-
Page 34: Wiegand
Installation and Configuration Manual Parameter Description Delete Click next to the broadcast option to delete the option. Clear Delete all broadcast options. Step 4 Click Save. 4.1.5.3 Volume/Encoding Settings Configure the volume for voice broadcast. Only available for selected models. Procedure Step 1 Select Setting >... -
Page 35: Ivs
Installation and Configuration Manual 4.1.7 IVS The camera supports detecting targets that are loitering or enter an off-limit area. You can configure up to 4 rules. Procedure Step 1 Select Setting > Event > IVS. There is one rule by default. Step 2 Click Draw Rule, draw an area on the video image, right-click to complete drawing. -
Page 36: Configuring Remote Control Of Barrier Gate
Installation and Configuration Manual You can configure up to 4 rules. Step 6 Click Save. Configuring Remote Control of Barrier Gate 4.2.1 Configuring Remote Control of DHI-IPMECD-203X Barrier Gate Paring codes for remote control: On the motherboard, press and hold SET and then press + to enter the programming mode. When F1 is displayed on the nixie tube of the motherboard, press and hold the SET for 6 s, and then the advanced menu C0 is displayed. - Page 37 Installation and Configuration Manual Motherboard of DHI-IPMECD-203X barrier gate Remote control...
-
Page 38: Configuring Remote Control Of Dhi-Ipmecd-302X Barrier Gate
Installation and Configuration Manual 4.2.2 Configuring Remote Control of DHI-IPMECD-302X Barrier Gate Receiver ● Match the remote information Successful matching: Press and hold the learning button on the receiver for 2 s, press the remote ◇ handle at least twice and then you can press keys on the remote to control the arm. Failed matching: The remote handle is not pressed a while after pressing the learning button on ◇... - Page 39 Installation and Configuration Manual You can enable Manually Open of the camera, through which you can test the physical wiring of the opening signal between the camera and the barrier gate. If the barrier is opened as scheduled after pressing the button, it means that the wiring is correct.
-
Page 40: Faq
Installation and Configuration Manual 1. Problems related to light blue license plates. Due to the differences in the materials of license plates, the light blue license plate will have serious exposure and discoloration of characters under direct light at night. It is necessary to install an external illuminator within 0.6 meters above the ground and turn off the built-in illuminator to solve the problems. - Page 41 Synchronize the camera time with your computer. Incorrect time If hardware is abnormal, return the camera to factory for repair. Dahua recordings Log in to Dahua official website to download Dahua player. cannot be played Upgrade the player. on computers.
- Page 42 Installation and Configuration Manual Device Problems Solutions Check whether the wiring is correct. Check whether the license plate in allowlist is correct. Check the power supply. Check the cables of strong and weak current. Controller does Check the fuse switch. not work.
- Page 43 Installation and Configuration Manual...
