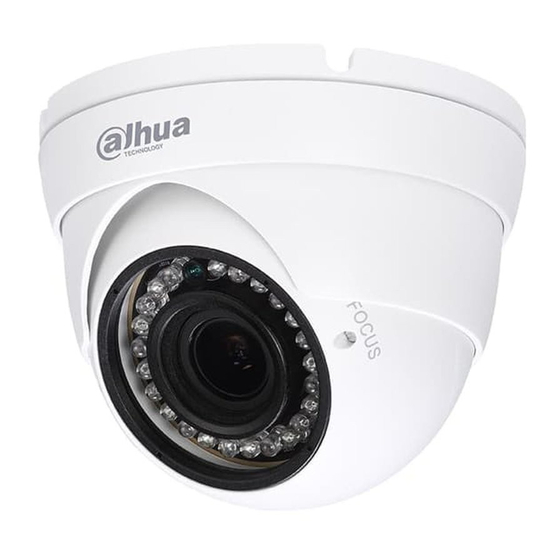

HDCVI Camera User's Manual
Version 1.0.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAC-HDW1220R and is the answer not in the manual?

Questions and answers

Related Manuals for Dahua HAC-HDW1220R

Summary of Contents for Dahua HAC-HDW1220R

  • Page 1 HDCVI Camera User’s Manual Version 1.0.2...

  • Page 2: Table Of Contents

    Table of Contents General Introduction ........................1     Overview ........................1     Features ......................... 1     Device Framework ........................2     Installation ........................... 5     Installation for Model A ....................5     Installation for Model B ....................6  ...
  • Page 3 Welcome Thank you for purchasing our HDCVI camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference! Important Safeguards and Warnings Electrical safety All installation and operation here should conform to your local electrical safety codes.
  • Page 4 It is recommended to use the device with thunder proof device in order to improve thunder proof effect. The grounding holes of the product are recommended to be grounded to further enhance the reliability of the camera. Do not touch the CCD (CMOS) optic component directly. You can use the blower to clean the dust or dirt on the lens surface.

  • Page 5: General Introduction

    1 General Introduction 1.1 Overview This series HDCVI camera conforms to the HDCVI standard. It supports video signal high- speed long distance transmission without any delay. It can be controlled by the HCVR conforming to the HDCVI. 1.2 Features  High-performance CMOS image sensor, megapixel definition.

  • Page 6: Device Framework

    2 Device Framework See Figure 2-1 for the dimension of model A. Figure 2-1 See Figure 2-2 for the structure components of model A. Figure 2-2 See Figure 2-3 for the dimension of model B. Figure 2-3 See Figure 2-4 for the structure components model B.

  • Page 7: Figure

    Figure 2-4 See Figure 2-5 for the dimension of model C. Figure 2-5 See Figure 2-6 for the structure components of model C. Figure 2-6 See Figure 2-7 for the dimension of model D. Figure 2-7 See Figure 2-8 for the structure components of model D.
  • Page 8 Figure 2-8 See Figure 2-9 for the dimension of model E. Figure 2-9 See Figure 2-10 for the structure components of model E. Figure 2-10...

  • Page 9: Installation

    3 Installation Dome camera mainly uses ceiling installation; installation surface includes ceiling and wall. Attention:  Please install the device in time after it is taken apart, which is to avoid the camera module being exposed to damp environment for too long. ...

  • Page 10: Installation For Model B

    of the installation surface; insert the self-tapping screws into the expansion bolts and fasten them firmly to fix the pedestal on the installation surface (if it is top outlet, pull the cable through the outlet hole on the installation surface after the pedestal is fixed firmly). Step 5 Rotate the decoration ring and fix it slightly, rotate the enclosure and dome body to a proper monitoring location;...

  • Page 11: Installation For Model C

    Figure 3-3 Step 2 Confirm the installation location and dig holes on the installation surface. Step 3 Use tools to insert expansion bolts into the installation holes and fix them firmly. Step 4 Adjust pedestal location (if it is side cable outlet, then pull the cable through the side outlet cable slot).

  • Page 12: Installation For Model D

    Step 1 Hold the decoration ring tightly and unscrew the pedestal anticlockwise. Step 2 Confirm the installation location and dig holes on the installation surface. Step 3 Use tools to insert expansion bolts into the installation holes and fix them firmly. Step 4 Adjust pedestal location (if it is side cable outlet, then pull the cable through the side outlet cable slot).

  • Page 13: Installation For Model E

    Step 1 Rotate the enclosure to align the arrow on the enclosure edge with the arrow on the pedestal edge; press inward according to the arrow location of the enclosure and meanwhile push outward according to the arrow location of the pedestal to separate the concave; pull the enclosure to make it break away from the pedestal.
  • Page 14 Step 1 Loosen locking screws anticlockwise and remove the pedestal. Step 2 Confirm the installation location and dig holes on the installation surface. Step 3 Use tools to insert expansion bolts into the installation holes and fix them firmly. Step 4 Adjust pedestal location (if it is side cable outlet, then pull the cable through the side outlet cable slot).

  • Page 15: Menu

    4 Menu 4.1 HCVR Settings This HDCVI camera series can adjust OSD menu via coaxial control. After connected the camera to the HDCVI series HCVR, from Main Menu->Setting->System->PTZ, you need to select the channel number for access and set control mode as HDCVI and the protocol as HD- CVI.
  • Page 16 Figure 4-3 See Sheet 4-1 for the details of button functions. Button Function Open menu Select menu item 、 Select menu value 、 Sheet 4-1 If there is “ ”, click the “Confirm” button in “Menu Operation” interface to go to the 2nd menu. Click “Return”...
