- Page 1 Aug.2nd 2017 Ver0.53 CameraLink InGaAs Camera ARTCAM-130SWIR INSTRUCTION BOOKLET 1.3M PIXELS ARTCAM-130SWIR <<Provisional Version>> ARTRAY CO., LTD...
-
Page 2: Table Of Contents
Contents 1. Attention ················································································ 2 2. Introduction ············································································ 5 3. Main Features ········································································ 5 4. The Product ··········································································· 6 5. Connecting the Camera ··························································· 6 6. Grabber Board ······································································· 7 7. Specifications ········································································· 8 8. Spectral Sensitivity Characteristics ··········································· 9 9. -
Page 3: Attention
1. Attention ■About the Manual 1. Before using the camera, please read this manual thoroughly and use the camera properly. 2. Please keep this manual reachable and always refer to the contents when needed. 3. Please contact us if the manual is lost or damaged. We will provide a replacement. Our contact address is written in the end of this booklet. - Page 4 ■For Safety Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. Our contact address is written in the end of this booklet.
- Page 5 For more details, please refer to the following link: Hardware Warranty: http://www.artray.us/download/artray_warranty.pdf ■Limited Responsibility ●We do not guarantee the functions of this product or the descriptions on this manual to be completely adapted to the users’...
-
Page 6: Introduction

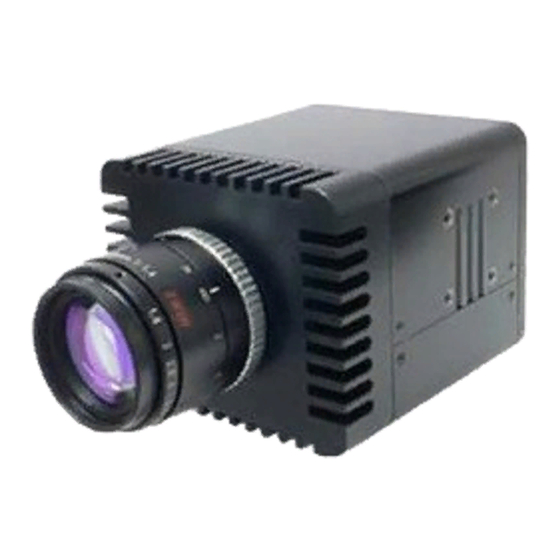

2. Introduction ARTCAM-130SWIR is an NIR camera which adopts an InGaAs (Indium Gallium Arsenide) sensor with a high sensitive spectral response from 400nm to 1700nm. The camera can send pictures to PC through CameraLink interface. 3. Main Features ・NIR Detection with High Sensitivity The InGaAs sensor can detect radiation invisible to naked eyes and CCD/CMOS cameras in the wavelength range between 400nm to 1700nm bands. -
Page 7: The Product
4. The Product 1) Camera 2) AC Adapter (DC12V) 3) CD-ROM (Instruction Booklet) <Options> 1) CameraLink Cable (Mini Connector for the camera side) 2) NIR Lenses (C Mount, Compatible with 1” lens) 3) Grabber Board (PIXCI-EB1 by EPIX is recommended) 5. -
Page 8: Grabber Board
6. Grabber Board 6-1. Recommended Grabber Board PIXCI-EB1 by EPIX 6-2. Tested Drivers, Libraries and Viewers Drivers: PIXCI(R) EB1 PCI Express Camera Link Video CaptureBoard for Win XP/Vista/7/8 64-Bit Ver3.8 Build: 121226.184301(17-Dec-2012) EPIXXCW6.SYSVer 3.8 Libraries: EPIX XCLIBW64.DLLVer.3.8 Viewers: EPIX XCAP-Lite V3.8 6-3. -
Page 9: Specifications
7. Specifications ARTCAM-130SWIR Sensor Type InGaAs Image Sensor Number of effective 1280(H)×1024(V) pixels Resolution 1280(H)×1024(V) Diag. 16.391mm (Approx. 1”) Sensor Size Scan Mode Progressive Scan Pixel Size 10(H)×10(V)μm Detected Wavelength 400～1700nm ＞99.5% Operability Shutter Type Global Shutter Frame Rate 30fps Shutter Speed 1/1000000～1.048575sec High Gain:10Ke, 35e with CDS... -
Page 10: Spectral Sensitivity Characteristics
8. Spectral Sensitivity Characteristics - 9 -... -
Page 11: External Dimensions
9. External Dimensions - 10 -... -
Page 12: Recommended Pc
10-1. System Requirements ●With CameraLink input board (PIXCI-EB1 by EPIX is recommended) ●CPU: Intel Core i5 series or higher ●Memory: ≧512MB ●OS: ≧Windows 7 ARTRAY CO., LTD. 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel: +81-3-3389-5488 Fax: +81-3-3389-5486 Email: sales@artray.us URL: http://www.artray.us...
