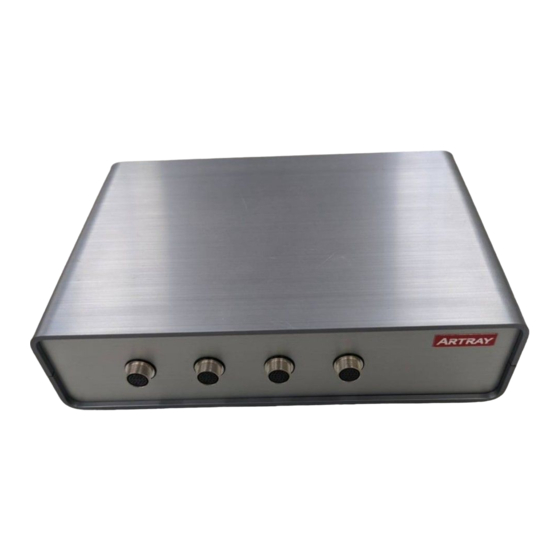

USB2.0 MULTI-HEAD SYNCHRONOUS
ARTCAM-024TFF Series
INSTRUCTION BOOKLET
2 Heads
3 Heads
4 Heads
CMOS CAMERA
ARTCAM-024TFF-2CAM Series
ARTCAM-024TFF-3CAM Series
ARTCAM-024TFF-4CAM Series
ARTRAY CO., LTD.
November 05, 2012
Ver1.00

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARTCAM-024TFF Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ARTRAY ARTCAM-024TFF Series

  • Page 1 November 05, 2012 Ver1.00 USB2.0 MULTI-HEAD SYNCHRONOUS CMOS CAMERA ARTCAM-024TFF Series INSTRUCTION BOOKLET 2 Heads ARTCAM-024TFF-2CAM Series 3 Heads ARTCAM-024TFF-3CAM Series 4 Heads ARTCAM-024TFF-4CAM Series ARTRAY CO., LTD.
  • Page 2: Table Of Contents

    Contents 1. Attention ··············································· 3 2. Introduction ··········································· 6 3. Main Features ······································· 6 4. The Product ·········································· 8 5. Connect the Camera ······························ 8 6. Specifications ········································ 10 7. External Dimensions ······························ 13 8. Recommended PC ································ 22 - 2 -...
  • Page 3: Attention

    1. Attention ■About this manual 1. Before using the camera, please read this manual thoroughly. 2. Please keep this manual reachable and always refer to the contents when needed. 3. Please contact us if the manual is lost or damaged. We will provide an replacement. 4.
  • Page 4 ■For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own.
  • Page 5 To save the environment, we do not issue warranty in printed format. Instead, all records of the warranty periods, delivery dates and the customer information are well kept in our system. For more details, please refer to the sites below: Hardware Warranty: http://www.artray.us/download/artray_warranty.pdf - 5 -...
  • Page 6: Introduction

    2. Introduction ARTCAM-024TFF Series is CMOS cameras for industrial use. This series adopt USB2.0 interface, so the data can be delivered to PC directly without a capture board. It is possible to have 2~4 cameras capture images simultaneously, and its various usages covering from 3-dimension measurement to multi-view image input.
  • Page 7: The Product

    4. The Product ARTCAM-024TFF-2CAM Series 1) Camera Head 2) Camera Cable 2m 3) Camera Control Unit 4) USB Cable (TYPE A-B Connector) 3m approx. 5) AC Adapter (DC5V) 6) Instruction Booklet 7) Viewer software/Device Driver CD ARTCAM-024TFF-3CAM Series 1) Camera Head 2) Camera Cable 2m 3) Camera Control Unit 4) USB Cable (TYPE A-B Connector) 3m approx.
  • Page 8: Connect The Camera

    5. Connect the Camera 5-1 How to connect a camera USB2.0 Cable USB2.0 Port Power AC Adapter Camera Cable Camera Control Unit Camera Head *Number of camera head will vary depending on products. 5-2 Shutter Speed Shutter speed can be changed on the standard viewer software ART-Viewer. The shutter speed is set directly on the sensor register, so please refer to the following formulas for the real exposure time.
  • Page 9: Specifications

    6. Specifications 6-1 Color Model(1) ARTCAM-024TFF-2CAM ARTCAM-024TFF-3CAM ARTCAM-024TFF-4CAM Sensor Type CMOS Color Image Sensor Resolution 752(H)×480(V) Active Imager 4.51(H)×2.88(V)mm 1/3” Size Scan Mode Progressive Scan 6.0(H)×6.0(V)μm Pixel Size Shutter Type Global Shutter Color Filter RGB Bayer Pattern Array 30fps 60fps Frame Rate *640×480 at 12MHz *Output of one camera is 640×480 at 24MHz...
  • Page 10 Monochrome Model ARTCAM-024TFF-BW-2CAM ARTCAM-024TFF-BW-3CAM ARTCAM-024TFF-BW-4CAM Sensor Type CMOS Monochrome Image Sensor Resolution 752(H)×480(V) Active Imager 4.51(H)×2.88(V)mm 1/3” Size Scan Mode Progressive Scan 6.0(H)×6.0(V)μm Pixel Size Shutter Type Global Shutter 30fps 60fps Frame Rate *640×480 at 12MHz *Output of one camera is 640×480 at 24MHz Shutter Speed 1/16042~2s *at 12MHz 1/32086~1s *24MHz...
  • Page 11: External Dimensions

    7. External Dimensions 7-1 Camera Head - 11 -...
  • Page 12 7-2 Camera Control Unit - 12 -...
  • Page 13: Recommended Pc

    *For the recommended extension cable, please contact our sales department. (TEL: +81-3-3389-5488) ARTRAY CO., LTD. 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel : +81-3-3389-5488 Fax : +81-3-3389-5486 E-mail : sales@artray.us URL : www.artray. us TUV100 01 0310 - 13 -...
