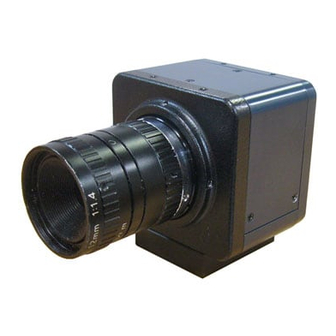

USB2.0 CMOS CAMERA
ARTCAM-MI-WOM Series
INSTRUCTION BOOKLET
0.36M pixels
1.3M pixels
1.3M pixels
3.0M pixels
5.0M pixels
10.0M pixels
14.0M pixels
ARTRAY CO., LTD.
ARTCAM-036MI2-WOM Series
ARTCAM-130MI-WOM Series
ARTCAM-035IMX-WOM Series
ARTCAM-300MI-WOM Series
ARTCAM-500MI-WOM Series
ARTCAM-1000MI-WOM Series
ARTCAM-1400MI-WOM Series
December 13, 2012
Ver1.23

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARTCAM-MI-WOM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ARTRAY ARTCAM-MI-WOM Series

Summary of Contents for ARTRAY ARTCAM-MI-WOM Series

  • Page 1 December 13, 2012 Ver1.23 USB2.0 CMOS CAMERA ARTCAM-MI-WOM Series INSTRUCTION BOOKLET 0.36M pixels ARTCAM-036MI2-WOM Series 1.3M pixels ARTCAM-130MI-WOM Series 1.3M pixels ARTCAM-035IMX-WOM Series 3.0M pixels ARTCAM-300MI-WOM Series 5.0M pixels ARTCAM-500MI-WOM Series 10.0M pixels ARTCAM-1000MI-WOM Series 14.0M pixels ARTCAM-1400MI-WOM Series ARTRAY CO., LTD.

  • Page 2: Table Of Contents

    Contents 1. Attention………………………………….3 2. Introduction………………………………6 3. Main Features……………………………6 4. The Product………………………………8 5. Connect the Camera…………………….9 6. Specifications…………………………….10 7. External Dimensions…………………….14 8. Spectral Sensitivity Characteristics……...17 9. Characteristic of visible light cut filter.…. ..24 10. AD Conversion…………. ……. ……. ….25 11. Optional Functions……………………….29 12.

  • Page 3: Attention

    1. Attention ■About this manual 1．Before using the camera, please read this manual thoroughly. 2．Please keep this manual reachable and always refer to the contents when needed. 3．Please contact us if the manual is lost or damaged. We will provide a replacement. 4．We cannot guarantee the safety of improper uses of the camera.
  • Page 4 ■For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own.
  • Page 5 To save the environment, we do not issue warranty in printed format. Instead, all records of the warranty periods, delivery dates and the customer information are well kept in our system. For more details, please refer to the sites below: Hardware Warranty : http://www.artray.us/download/artray_warranty.pdf - 5 -...

  • Page 6: Introduction

    2. Introduction ARTCAM-MI-WOM Series is CMOS cameras for industrial use. This series adopt USB2.0 interface, so the data can be delivered to PC directly without a capture board. Cameras are equipped with on board memory which avoid data missing during transfer.
  • Page 7 ・Sub-sampling function (not available on ARTCAM-036MI2-WOM) This function results in a more pleasing output image with reduced subsampling artifacts and improves the frame rate. 1/2 Sub-sampling mode 1/4 Sub-sampling mode ・Global Shutter(ARTCAM-036MI2-WOM series) ARTCAM-036MI2-WOM series adopts global shutter which is very suitable for machine vision. ・Mirror function Mirror could be processed either on the sensors or on the viewer software (ART-Viewer).

  • Page 8: The Product

    4. The Product 1) Camera 2) USB Cable Type A-B connector cable, 3m approx. 3) Introduction Booklet 4) Viewer software/Device Driver CD <Options> 1) C Mount lens 2) 2 Measurement & Filing Software [ART-MEASURE] 3) Recording Software [ART-REC] 4) Software Development Kit [ARTCCM-SDK] 5) LabView DLL 6) 5m extension cable with USB2.0 repeater - 8 -...

  • Page 9: Connect The Camera

    5. Connect the Camera 5-1 How to connect a camera 5-2 Shutter Speed Shutter speed can be changed on the standard viewer software ART-Viewer. The shutter speed is set directly on the sensor register, so please refer to the following formulas for the real exposure time.

  • Page 10: Specifications

    6. Specifications 6-1 Color Model ARTCAM- ARTCAM- ARTCAM- ARTCAM- 036MI2-WOM 130MI-WOM 035IMX-WOM 300MI-WOM 036MI2-WOM-OP 130MI-WOM-OP 035IMX-WOM-OP 300MI-WOM-OP 036MI2-WOM-OP-CM 130MI-WOM-OP-CM 035IMX-WOM-OP-CM 300MI-WOM-OP-CM Sensor Type CMOS Color Image Sensor Active Pixels 752(H)×480(V) 1280(H)×1024(V) 1329(H)×1049(V) 2048(H)×1536(V) Active Imager 4.51(H)×2.88(V)mm 6.66(H)×5.32(V)mm 4.82 (H)×3.81(V)mm 6.55(H)×4.92(V)mm 1/3”...
  • Page 11 6-2 Color Model ARTCAM- ARTCAM- ARTCAM- 500MI-WOM 1000MI-WOM 1400MI-WOM 500MI-WOM-OP 1000MI-WOM-OP 1400MI-WOM-OP 500MI-WOM-OP-CM 1000MI-WOM-OP-CM 1400MI-WOM-OP-CM Sensor Type CMOS Color Image Sensor Active Pixels 2592(H)×1944(V) 3856(H)×2764(V) 4608(H)×3288(V) Active Imager 5.70(H)×4.28(V)mm 6.41(H)×4.59(V)mm 6.14(H)×4.60(V)mm 1/2.5” 1/2.3” 1/2.3” Size Scan Mode Progressive Scan Pixel Size 2.2(H)×2.2(V)μm 1.67(H)×1.67(V)μm 1.4(H)×1.4(V)μm...
  • Page 12 6-3 Monochrome Model ARTCAM- ARTCAM- ARTCAM- ARTCAM- 036MI2-BW-WOM 130MI-BW-WOM 035IMX-BW-WOM 500MI-BW-WOM 036MI2-BW-WOM-OP 130MI-BW-WOM-OP 035IMX-BW-WOM-OP 500MI-BW-WOM-OP 036MI2-BW-WOM-OP-CM 130MI-BW-WOM-OP-CM 035IMX-BW-WOM-OP-CM 500MI-BW-WOM-OP-CM Sensor Type CMOS Monochrome Image Sensor Active Pixels 752(H)×480(V) 1280 (H)×1024(V) 1329(H)×1049(V) 2592(H)×1944(V) Active Imager 4.51(H)×2.88(V)mm 6.66(H)×5.32(V)mm 4.82(H)×3.81(V)mm 5.70(H)×4.28(V)mm 1/3” 1/2” 1/3”...
  • Page 13 6-4 NIR Model ARTCAM- ARTCAM- ARTCAM- ARTCAM- 036MI2-NIR-WOM 130MI-NIR-WOM 035IMX-NIR-WOM 500MI-NIR-WOM 036MI2-NIR-WOM-OP 130MI-NIR-WOM-OP 035IMX-NIR-WOM-OP 500MI-NIR-WOM-OP 036MI2-NIR-WOM-OP-CM 130MI-NIR-WOM-OP-CM 035IMX-NIR-WOM-OP-CM 500MI-NIR-WOM-OP-CM Sensor Type CMOS Monochrome Image Sensor Active Pixels 752(H)×480(V) 1280 (H)×1024(V) 1329(H)×1049(V) 2592(H)×1944(V) Active Imager 4.51(H)×2.88(V)mm 6.66(H)×5.32(V)mm 4.82(H)×3.81(V)mm 5.70(H)×4.28(V)mm 1/3” 1/2” 1/3”...

  • Page 14: External Dimensions

    7. External Dimensions 7-1 C-MOUNT, CASED, USB CABLE TYPE(Small case） ARTCAM-036MI2-WOM / 036MI2-BW-WOM / 036MI2-NIR-WOM ARTCAM-130MI-WOM / 130MI-BW-WOM / 130MI-NIR-WOM ARTCAM-035IMX-WOM / 035IMX-BW-WOM / 035IMX-NIR-WOM ARTCAM-300MI-WOM ARTCAM-500MI-WOM / 500MI-BW-WOM / 500MI-NIR-WOM ARTCAM-1000MI-WOM ARTCAM-1400MI-WOM *The design has changed into the small case model of this outline drawing for orders after Aug, 2012.
  • Page 15 7-2 C-MOUNT, CASED, USB CABLE TYPE (Old model case) ARTCAM-036MI2-WOM / 036MI2-BW-WOM / 036MI2-NIR-WOM ARTCAM-130MI-WOM / 130MI-BW-WOM / 130MI-NIR-WOM ARTCAM-035IMX-WOM / 035IMX-BW-WOM / 035IMX-NIR-WOM ARTCAM-300MI-WOM ARTCAM-500MI-WOM / 500MI-BW-WOM / 500MI-NIR-WOM ARTCAM-1000MI-WOM ARTCAM-1400MI-WOM Drawing of the base without a tripod panel *It is an outline drawing of previous case.
  • Page 16 7-3 BOARD LENS, BOARD TYPE ARTCAM-036MI2-WOM-OP / 036MI2—BW-WOM-OP / 036MI2-NIR-WOM-OP ARTCAM-130MI-WOM-OP / 130MI-BW-WOM-OP / 130MI-NIR-WOM-OP ARTCAM-035IMX-WOM-OP / 035IMX-BW-WOM-OP / 035IMX-NIR-WOM-OP ARTCAM-300MI-WOM-OP ARTCAM-500MI-WOM-OP / 500MI-BW-WOM-OP / 500MI-NIR-WOM-OP ARTCAM-1000MI-WOM-OP ARTCAM-1400MI-WOM-OP *Depending on different models, size and position of components in front of sensor board (condenser...) might vary. - 16 -...
  • Page 17 7-3 C-MOUNT, BOARD TYPE ARTCAM-036MI2-WOM-OP-CM / 036MI2-BW-WOM-OP-CM / 036MI2-NIR-WOM-OP-CM ARTCAM-130MI-WOM-OP-CM / 130MI-BW-WOM-OP-CM / 130MI-NIR-WOM-OP-CM ARTCAM-035IMX-WOM-OP-CM / 035IMX-BW-WOM-OP-CM / 035IMX-NIR-WOM-OP-CM ARTCAM-300MI-WOM-OP-CM ARTCAM-500MI-WOM-OP-CM / 500MI-BW-WOM-OP-CM / 500MI-NIR-WOM-OP-CM ARTCAM-1000MI-WOM-OP ARTCAM-1400MI-WOM-OP - 17 -...

  • Page 18: Spectral Sensitivity Characteristics

    8. Spectral sensitivity characteristics 8.1 ARTCAM-036MI2-WOM series(Color model) ARTCAM-036MI2-WOM series(Color model) 8.2 ARTCAM-036MI2-BW-WOM series(Monochrome model) ARTCAM-036MI2-BW-WOM series(Monochrome model) - 18 -...
  • Page 19 8.3 ARTCAM-130MI-WOM series(Color model) ARTCAM-130MI-WOM series(Color model) 8.4 ARTCAM-130MI-BW-WOM series(Monochrome model) ARTCAM-130MI-BW-WOM series(Monochrome model) - 19 -...
  • Page 20 8.5 ARTCAM-035IMX-WOM series(Color model) ARTCAM-035IMX-WOM series(Color model) 8.6 ARTCAM-035IMX-BW-WOM series(Monochrome model) ARTCAM-035IMX-BW-WOM series(Monochrome model) - 20 -...
  • Page 21 8.7 ARTCAM-300MI-WOM series(Color model) ARTCAM-300MI-WOM series(Color model) - 21 -...
  • Page 22 8.8 ARTCAM-500MI-WOM series(Color model) ARTCAM-500MI-WOM series(Color model) 8.9 ARTCAM-500MI-BW-WOM series(Monochrome model) ARTCAM-500MI-BW-WOM series(Monochrome model) - 22 -...
  • Page 23 8.10 ARTCAM-1000MI-WOM series(Color model) ARTCAM-1000MI-WOM series(Color model) 8.11 ARTCAM-1400MI-WOM series(Color model) ARTCAM-1400MI-WOM series(Color model) - 23 -...

  • Page 24: Characteristic Of Visible Light Cut Filter

    9. Characteristic of visible light cut filter Near-infrared model (NIR) is adopting R70 on visible cut filter. Please check the spectral sensitivity characteristic of image sensor as well. - 24 -...

  • Page 25: Ad Conversion

    10. AD Conversion 10-1 ARTCAM-036MI2-WOM series / 130MI-WOM series / 300MI-WOM series / 500MI-WOM series DOUT [ 9 : 0 ] *500MI-WOM :12bit 10-1-1 Standard functions (configurable in standard viewer/SDK) ・Analog gain Global gain (analog gain) can be configured with the standard viewer software or SDK. Setting range on standard viewer software: 0 –...
  • Page 26 10-2 ARTCAM-1000MI-WOM series 10-2-1 Standard functions (configurable in standard viewer/SDK) ・Analog gain Global gain (analog gain) can be configured with the standard viewer software or SDK. Setting range on standard viewer software: 0 – 127 (x0 to x1.984375) Default value on standard viewer software: 64 Analog gain = gain value * 0.015625 Example 1) when the setting value is 64: Analog gain = 64* 0.015625= x1.0...
  • Page 27 10-3 ARTCAM-1400MI-WOM series 10-3-1 Standard functions (configurable in standard viewer/SDK) ・Analog gain Global gain (analog gain) can be configured with the standard viewer software or SDK. Setting range on standard viewer software: 0 – 127 (x0 to x1.984375) Default value on standard viewer software: 64 Analog gain = gain value * 0.015625 Example 1) when the setting value is 64: Analog gain = 64 * 0.015625= x1.0...
  • Page 28 10-4 ARTCAM-035IMX-WOM series 10-4-1 Standard functions (configurable in standard viewer/SDK) ・Gain Global gain of this camera (analog and digital gain) can be configured with the standard viewer software or SDK. Setting range on standard viewer software: 0 - 119 (0dB to 35.7dB) Default value on standard viewer software: 40 Analog gain = gain value * 0.3(dB) Example 1) when the setting value is 40:...

  • Page 29: Optional Functions

    11. Optional Functions 11-1-1 Trigger Input ARTCAM-MI-WOM series are designed with external trigger. *External trigger function is not available on ARTCAM-1000MI-WOM and ARTCAM-1400MI-WOM series. Trigger Input Circuit Camer 3.3V FPGA Sensor TRIG PC814 R1 = 2.4kΩ R2 = 10kΩ - 29 -...
  • Page 30 11-1-2 Trigger timing chart(ARTCAM-036MI2-WOM series) Trigger Input TRIG Signal Reset Time Exposure Time Line Line Last Line Vertical Synchronization Signal Image Transfer (USB) Input Pulse Width Above 1ms Photo Coupler Delay 1~99μs (Subject to Input Pulse Voltage) Reset Time 6 * 1H Exposure Time Subject to Shutter Speed Settings Frame Transfer...
  • Page 31 11-1-3 Trigger timing chart(ARTCAM-130MI-WOM/300MI-WOM series) Trigger Input TRIG Signal Reset Time Exposure Time Line Line Last Line Vertical Synchronization Signal Image Transfer (USB) Input Pulse Width Above 1ms Photo Coupler Delay 1~99μs (Subject to Input Pulse Voltage) 9 * 1H(ARTCAM-130MI series) Reset Time 18 * 1H(ARTCAM-300MI series) Exposure Time...
  • Page 32 11-1-4 Trigger timing chart(ARTCAM-500MI-WOM series) Trigger Input TRIG Signal Reset Time Exposure Time Line Line Last Line Vertical Synchronization Signal Image Transfer (USB) Input Pulse Width Above 1ms Photo Coupler Delay 1~99μs (Subject to Input Pulse Voltage) Reset Time 8 * 1H Exposure Time Subject to Shutter Speed Settings Frame Transfer...
  • Page 33 11-1-5 Trigger timing chart(ARTCAM-035IMX-WOM series) Trigger Input TRIG Signal Vertical Synchronization Signal Image Transfer (USB) Input Pulse Width Above 1ms 1~99μs (Subject to Input Pulse Voltage) Photo Coupler Delay 1 Frame Time Approx. 35 msec (035 IMX -WOM, Full-resolution, at 54MHz) *Trigger mode of 035IMX-WOM obtains images unsynchronized to camera capture cycle.
  • Page 34 11-2 GPIO GPIO option is available upon request before the delivery of the ARTCAM-MI-WOM series. Pin assign Function GPIO_0 GPIO_1 GPIO_2 VCC(3.3V) Maximum output 50mA GPIO_3 GPIO_4 GPIO_5 ・Each of the six GPIO pins is pulled up to 3.3V with 1kΩ on the circuit board and is connected to the IO pins on FPGA.

  • Page 35: Recommended Pc

    What may cause the problem is that the regulation of the power lines becomes not enough, and so causes impudence mismatch on data signals. *For the recommended extension cable, please contact our sales department. (TEL: +81-3-3389-5488) ARTRAY CO., LTD. 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel：+81-3-3389-5488 Fax：+81-3-3389-5486...
