- Page 1 Aug 17, 2021 Ver1.00 USB3.0 CMOS CAMERA ARTCAM-226IMX-USB3-T2 INSTRUCTION BOOKLET 12.0M Pixels ARTCAM-226IMX-USB3-T2 Series ARTRAY CO., LTD. - 1 -...
-
Page 2: Table Of Contents
Contents Attention ..............................- 3 - Introduction .............................. - 6 - Features ..............................- 6 - The Product .............................. - 6 - Connections .............................. - 7 - Specifications ............................- 8 - 6.1. Specifications ........................... - 8 - 6.2. Camera’s functions .......................... - 9 - 6.2.1. -
Page 3: Attention
1. Attention ■About this manual 1. Before using the camera, please read this manual thoroughly. 2. Please keep this manual reachable and always refer to the contents when needed. 3. Please contact us if the manual is lost or damaged. We will provide a replacement. 4. - Page 4 ■For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own. Please stop using the product and turn off the power immediately when: ・...
- Page 5 For more details, please refer to the following link: Hardware Warranty: http://www.artray.us/download/artray_warranty.pdf ●We do not guarantee the functions of this product or the descriptions on this manual to be completely adapted to the users’...
-
Page 6: Introduction

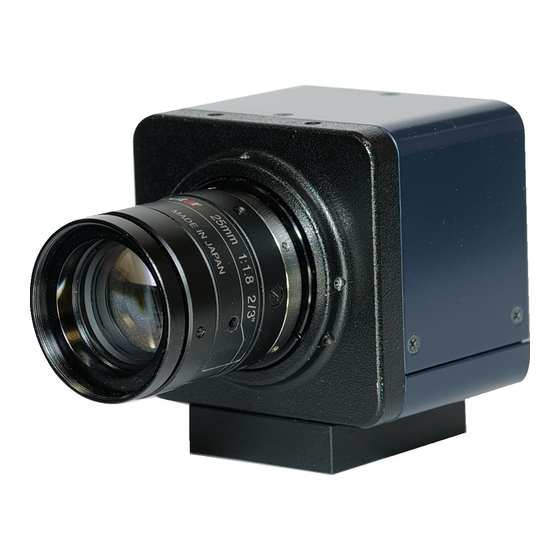

2. Introduction ARTCAM-226IMX-USB3-T2 series are USB3.0 CMOS cameras that designed for industrial use. Adopting USB3.0 interface, thus enables direct data transfer to PC without a capture card. 3. Features ⚫ USB3.0 Interface Adopting USB3.0 interface, thus enables direct data transfer to PC without a capture board or a host adapter card. -
Page 7: Connections
5. Connections Please connect the camera and the PC by using the attached USB3.0 cable. Camera’s power is supplied from USB Bus Power. - 7 -... -
Page 8: Specifications
6. Specifications 6.1. Specifications Items color monochrome ARTCAM-226IMX-BW-USB3-T2 Model ARTCAM-226IMX-USB3-T2 ARTCAM-226IMX-NIR-USB3-T2 Sensor Type CMOS Image Sensor Model Number IMX226CQJ IMX226CLJ Active Pixels 4072(H) x 3046(V) 7.53（H）×5.63（V）mm Active Image Size 1/1.7 Inch Scanning mode Progressive Scan Pixel Size 1.85(H)×1.85(V)μm Shutter Rolling Shutter Color Filter Array RGB Bayer Pattern Monochrome Pattern... -
Page 9: Camera's Functions
6.2. Camera’s functions 6.2.1. Exposure time The exposure time (electronic shutter speed) of the camera can be set. The exposure time can be calculated by the following formula: Exposure time =((3079 - the setting value of the shutter speed) * 825 + 201) / 72MHz (Setting range: 8~3075) The exposure time is 0.048 ms to 35.19 ms (The software supports from 0.1 ms to 35.2 ms*) -
Page 10: Analog + Digital Gain
6.2.2. Analog + Digital Gain Analog gain are installed in the sensor of this camera. For the set value [0~1957] of the software, the floating range of the gain magnification changes from 0.0 dB to 27.0 dB. Formula for calculating the gain magnification: Gain [dB] = -20*log{(2048 - Gain’s set value) / 2048} Digital gain is fixed at 0 dB (1x) The relationship between gain set value and magnification [dB] is shown as below:... -
Page 11: Mirror Reversal
6.2.4. Mirror Reversal The sensor utilized in this camera provides horizontal and vertical mirror reversal function. In a normal position (of no avail to both horizontal reversal and vertical reversal), the lower left corner of the direction in which the front of the camera is oriented is the origin (0, 0). When horizontally or vertically reversed, the Bayer setting of the software will be automatically converted. -
Page 12: Dimensional Outline
7. Dimensional Outline 7.1. ARTCAM-226IMX-USB3-T2 Drawing of the base without a tripod mount - 12 -... - Page 13 Illustrations of the relationship between the Mount and the Sensor surface monochrome color The height of the light receiving surface when the PCB Board pasted is mounted - 13 -...
- Page 14 Position Relationship Diagram between the sensor package and the light receiving surface H = 1.85[um] * 4168 = 7710 [um] V = 1.85[um] * 3062 = 5664 [um] Field of Vision: Lens versus Sensor（reference value） ※The ratios of sensor size (diagonal) to lens size in the above illustrations are as follows: 1/2 inch = φ8mm, 2/3 inch = φ11mm, 1 inch = 15.8mm Please note that the actual field of view varies depending on different lens.
-
Page 15: Spectral Sensitivity Characteristics (Reference Value)
8. Spectral sensitivity characteristics (reference value) 8.1. ARTCAM-226IMX-USB3-T2（color model） 8.2. ARTCAM-226IMX-BW-USB3-T2（monochrome model） - 15 -... -
Page 16: Ir Cut Filter（Color Model Only
8.3. IR Cut Filter（color model only） Glass Material: White Board (B270) Reference refractive index 1.52 Thickness: 1.00mm (within a tolerance of ±0.1mm) 8.4. Characteristic of Visible Light Cut Filter Model Name: R70 Reference refractive index 1.546 Thickness: 2.50mm - 16 -... -
Page 17: System Requirements
9. System Requirements 9.1. Recommended System Requirements ●Host Controller This camera is applicable to USB 3.0. Connecting to USB 2.0 host controller may cause low-speed or failure to function properly. ●CPU computer architecture The driver of this camera is applicable to “x86”... - Page 18 ARTRAY CO., LTD. Obtained ISO 9001: 2015 2018/9/17 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel: +81-3-3389-5488 Fax: +81-3-3389-5486 Email: sales@artray.us URL: www.artray. us - 18 -...
