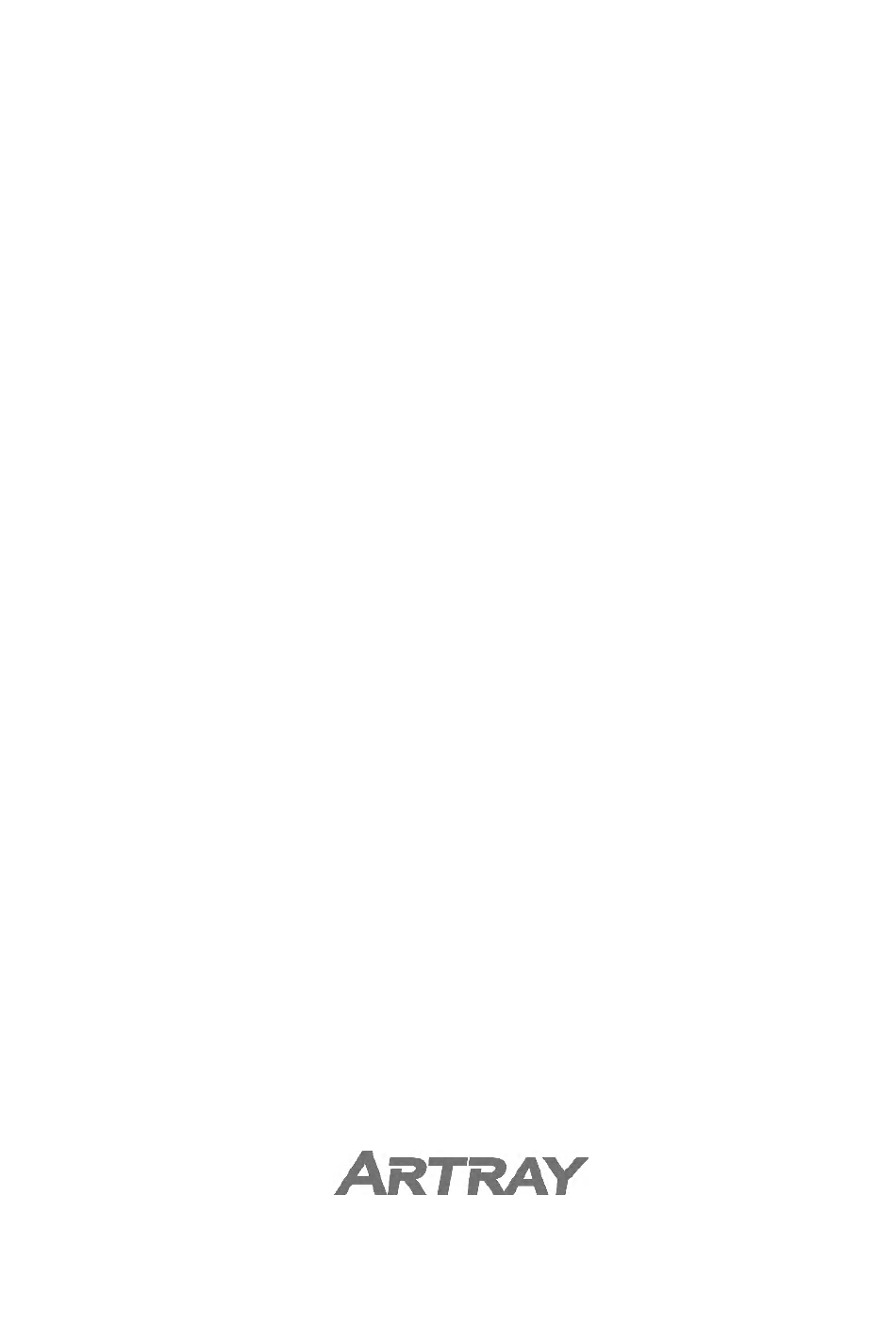

- Page 1 November 12, 2020 Ver1.01 USB2.0 CMOS CAMERA ARTCAM-1000MINI INSTRUCTION BOOKLET 10.0M pixels ARTCAM-1000MINI ARTRAY CO., LTD. - 1 -...
-
Page 2: Table Of Contents
Contents 1. Attention·······································································································································3 2. Introduction···································································································································6 3. Main Features·······························································································································6 4. The Product··································································································································8 5. Connect the Camera······················································································································9 6. Specifications······························································································································ 10 7. External Dimensions ···················································································································· 11 8. Spectral Sensitivity Characteristics ································································································· 12 9. System Recommended················································································································ 13 - 2 -... -
Page 3: Attention
1. Attention ■About this manual 1. Before using the camera, please read this manual thoroughly. 2. Please keep this manual reachable and always refer to the contents when needed. 3. Please contact us if the manual is lost or damaged. We will provide a replacement. 4. - Page 4 ■For Safe Use Warning ●In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own.
- Page 5 To save the environment, we do not issue warranty in printed format. Instead, all records of the warranty periods, delivery dates and the customer information are well kept in our system. For more details, please refer to the sites below: Hardware Warranty: http://www.artray.us/download/artray_warranty.pdf - 5 -...
-
Page 6: Introduction
2. Introduction ARTCAM-1000MINI is a CMOS camera for industrial use. This camera adopts USB2.0 interface, so the data can be delivered to a PC directly without a capture board. The mini size 20 x 25 x 25mm and light weight, it is suitable for the device integration. - Page 7 ●Mirror function You can flip images vertically and horizontally by process of a sensor. ●Bounded Viewer Software We provide the Viewer Software - ART-Viewer (Windows 7/8/10). With this software, users can easily preview, save images and change camera settings. ●Direct Show compatible Except for being recognized as a standard USB device on the PC, some of the cameras may also be recognized as a DirectShow device.
-
Page 8: The Product
4. The Product 1) Camera 2) Board Lens f8.8mm 3) USB Cable: one end of the cable integrated to the camera, 0.9m approx. 4) Instruction Booklet 5) Viewer Software / Device Driver CD <Options> 1) Board Lens (M12 P0.5) 2) 2D Measurement & Filing Software [ART-MEASURE] 3) Software Development Kit [ARTCCM-SDK] 4) 5m Extension Cable with USB2.0 Repeater - 8 -... -
Page 9: Connect The Camera
Model Method Range : 1～8191(Exposure Time : 1/3507～1.348sec) ARTCAM-1000MINI Exposure Time= (Shutter Valuex3952+2891)x0.0417 [μsec] *3840x2748 pixels at 24MHz 5-3 Operation Clock Settings Users can switch the operation clock between 24MHz / 12MHz with the standard viewer software or SDK. -
Page 10: Specifications
6. Specifications MODEL ARTCAM-1000MINI Sensor Type CMOS Color Image Sensor Active Pixels 3856(H)×2764(V) Active Imager Size 6.41(H)×4.59(V)mm, 1/2.3” Scan Mode Progressive Scan Pixel Size 1.67(H)×1.67(V)μm Shutter Type Rolling Shutter Color Filter Array RGB Bayer Pattern Frame Rate 2.2fps Shutter Speed 1/3052~1.348... -
Page 11: External Dimensions
7. External Dimensions - 11 -... -
Page 12: Spectral Sensitivity Characteristics
8. Spectral Sensitivity Characteristics - 12 -... - Page 13 *For the recommended extension cable, please contact our sales department. (TEL: +81-3389-5488) ARTRAY CO., LTD. Obtained ISO 9001: 2015 2018/9/17 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan TEL : +81-3-3389-5488 FAX : +81-3-3389-5486 Email : sales@artray.us URL : www.artray. us - 13 -...
