- Page 1 NCX3310 evaluation board Rev. 1.0 — 22 August 2022 User manual Document information Information Content Keywords NCx3310, NFC TAG IC, Automotive, Secure Car Access Abstract This document describes how to get started and evaluate the NCx3310 using an NCX3310 Evaluation Board.
- Page 2 UM11737 NXP Semiconductors NCX3310 evaluation board Revision history Date Description v.1.0 20220822 Initial version UM11737 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved. User manual Rev. 1.0 — 22 August 2022...
- Page 3 UM11737 NXP Semiconductors NCX3310 evaluation board IMPORTANT NOTICE For engineering development or evaluation purposes only NXP provides the product under the following conditions: This evaluation kit is for use of ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY. It is provided as a sample IC pre- soldered to a printed-circuit board to make it easier to access inputs, outputs and supply terminals.
-
Page 4: Introduction
A broad selection of software packages is available. These packages are based on modular examples. These examples can be easily extracted and reused on any other platform. The NCX3310 evaluation board can be stacked on single-board computer boards, MCU evaluation boards, such as the NXP LPCXpresso Boards and NXP Freedom Boards, or be used standalone. -
Page 5: Getting To Know The Hardware

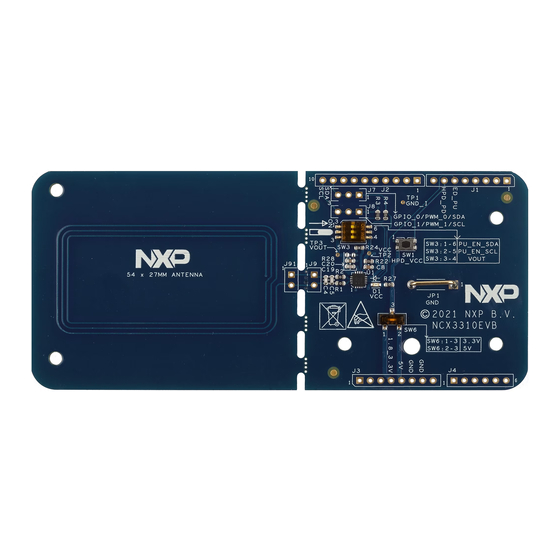

UM11737 NXP Semiconductors NCX3310 evaluation board Figure 1. NCX3310 evaluation board PCB The following information is provided per Article 10.8 of the Radio Equipment Directive 2014/53/EU: (a) Frequency bands in which the equipment operates. (b) The maximum RF power transmitted. Table 1. NCX3310EVB evaluation board... -
Page 6: Switches And Other Components Description
With ON position, Pullup R25 engaged. 2-5: PU_EN_SDA With ON position, Pullup R26 engaged 3-4: VOUT With ON position, NCx3310's VOUT connected to VCC (a must for energy harvesting) HPD_VCC When HPD is pulled to VCC, NCx3310 enters High Power-down mode. When released, NCx3310 exits from HPD mode. -
Page 7: Schematics
GND_B P5V0_BRD SPDT aaa-047744 Figure 4. NCX3310 evaluation board schematic The board layout and bill of materials for the NCX3310EVB evaluation board are available at www.nxp.com/NCX3310EVB. Optional hardware that is supported for development This section lists optional supported hardware that are not included in the board. This hardware eases evaluation and enables faster integration or portation to other similar devices. -
Page 8: Mobile Nfc Application Development
• Event detection • Protecting user memory and features, security 4.2 RF (ISO15693) reader development Easy RF evaluation of NCx3310 features. Also for developing VCD (RF, NFC) applications, either FW or higher layer software. NCx3310 features that can be evaluated: •... -
Page 9: Lpc11U37H Mcu Based
• GUI – RFIDDiscover (DocStore) – NFCCockpit (nxp.com) • Firmware: NFC Reader Library (DocStore) • .NET: NXP Reader Library (DocStore) Additional Documentation: • NCx3310 configuration from RF interface • I C leader • I C follower • Energy harvesting • GPIO •... -
Page 10: Dhrd Freemaster Tool
• NTAG 5 middleware porting guide 4.4 DHRD FreeMASTER tool Easy I C Leader mode evaluation of NCx3310. I C Leader mode can be evaluated with any I C based sensor IC. Detailed description can be found in: UM-SCA1702 - NCx3320 Door Handle Reference Design User Manual. -
Page 11: Abbreviations
Reference Design User Manual] 2. I C follower IC Software: 1. NCx3320 DHRD SW Tool Additional documentation: • NCx3310 configuration from RF interface • I C Leader • Energy harvesting • DHRD user manual: [UM-SCA1702 - NCx3320 Door Handle Reference Design User Manual] Abbreviations Table 5. Abbreviations... -
Page 12: References
2004 NCx3310 - LPC11U37 firmware development UM-SCA1702 NCx3320 - Door Handle Reference Design User Manual AN_SCA 2018 NCx3310 - Antenna Design guide for Active Load Modulation UM11737 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved. -
Page 13: Legal Information
NXP Semiconductors. In no event shall NXP Semiconductors be liable for any indirect, incidental, Evaluation products — This product is provided on an “as is” and “with all punitive, special or consequential damages (including - without limitation - faults”... - Page 14 UM11737 NXP Semiconductors NCX3310 evaluation board NXP — wordmark and logo are trademarks of NXP B.V. 7.3 Trademarks Notice: All referenced brands, product names, service names, and trademarks are the property of their respective owners. UM11737 All information provided in this document is subject to legal disclaimers.
- Page 15 ............6 Fig. 7. DHRD FreeMASTER SW Tool ......11 Fig. 4. NCX3310 evaluation board schematic ....7 UM11737 All information provided in this document is subject to legal disclaimers. © 2022 NXP B.V. All rights reserved. User manual Rev.
-
Page 16: Table Of Contents
UM11737 NXP Semiconductors NCX3310 evaluation board Contents Introduction ............4 Potential applications .........4 Finding kit resources and information on the NXP web site ..........4 Getting ready ............4 Getting to know the hardware ......5 3.1.1 Connector PINOUT description ......5 3.1.2...
