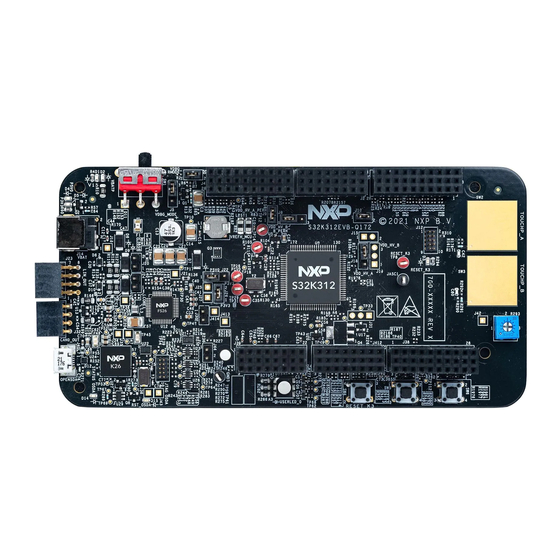

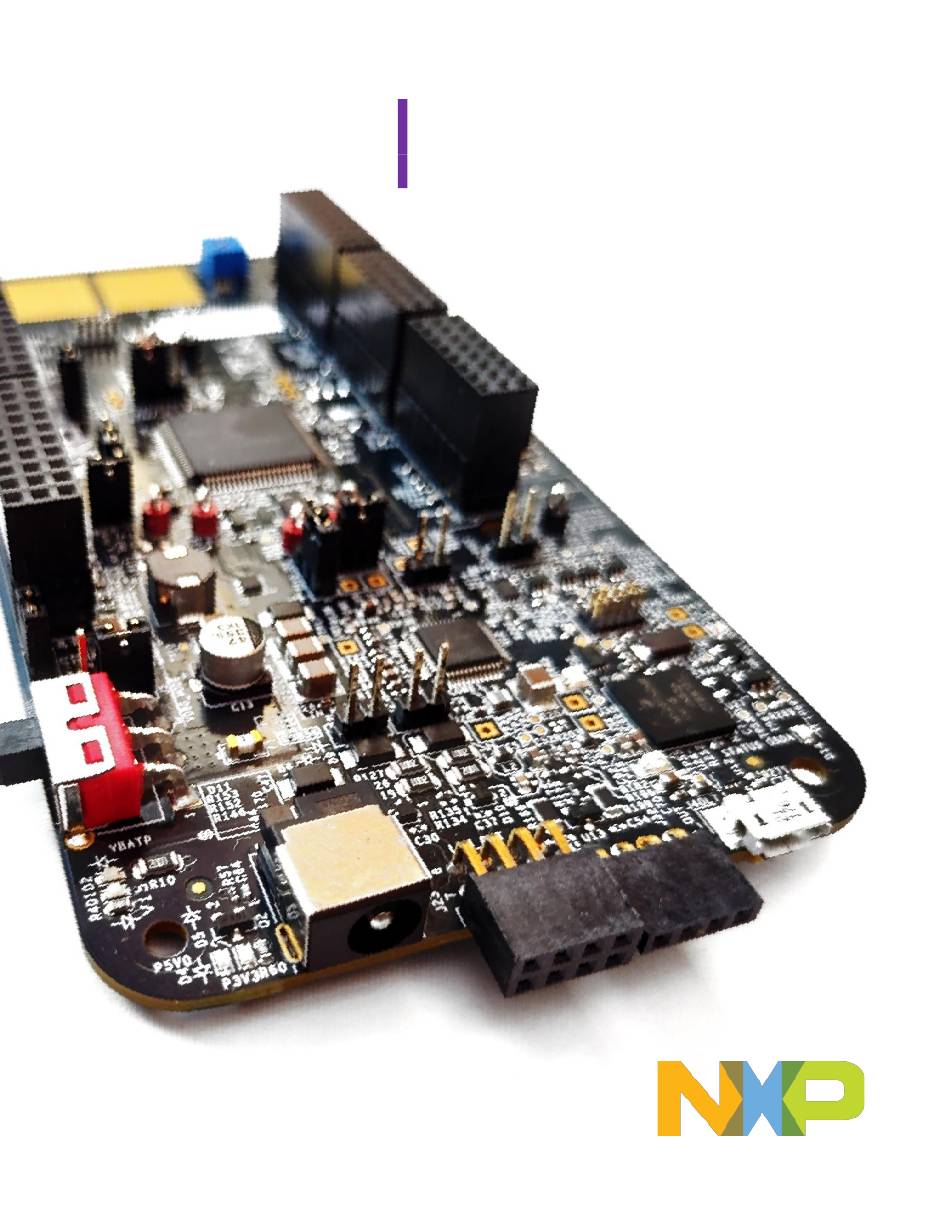

- Page 1 S32K312EVB-Q172 Customer Evaluation Board for S32K312 MCUs Hardware User Manual S32K312EVB-Q172 S32K312EVBQ172ND...
-
Page 2: Table Of Contents
S32K312EVB-Q172 - Startup ..........................6 S32K312EVB-Q172 - Power supply........................8 S32K312EVB-Q172 - Main Power Supply ....................... 9 S32K312EVB-Q172 – +5.0 Volts Power Supply .................... 11 S32K312EVB-Q172 – +3.3 Volts Power Supply .................... 12 S32K312EVB-Q172 – VDD_HV_A......................... 12 S32K312EVB-Q172 – VREFH ........................13 S32K312EVB-Q172 - Programming and Debug Interface ................ -
Page 3: Definitions, Acronyms, And Abbreviations
S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual 2 Definitions, Acronyms, and Abbreviations The following list defines the abbreviations used in this document. Compact Disk CMOS Complementary Metal Oxide Semiconductor CPLD Custom Programmed Logic Devices Central Processing Unit... -
Page 4: S32K312Evb-Q172 - Block Diagram
S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual 3 S32K312EVB-Q172 - Block Diagram Figure 1. S32K312EVB-Q172 – Block diagram 4 S32K312EVB-Q172 - Features IMPORTANT • Verify and download the last version of this document in http://www.nxp.com •... -
Page 5: S32K312Evb-Q172 - Default Configuration
S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual Figure 2. S32K312EVB-Q172 – Features 5 S32K312EVB-Q172 - Default Configuration Table 1. S32K312EVB-x172 - Default Configuration S32K312 S32K312 Default Interface EVB- EVBS172 Reference / Signal Description/Comment Configuration Q172 ●... -
Page 6: S32K312Evb-Q172 - Startup
Follow these steps to connect and power on the board Carefully unpack the S32K312EVB-Q172 and observe ESD preventive measures while handling the K3 development board. Connect necessary cables between host PC and EVB board prior to applying power to the EVB. - Page 7 S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual - The power switch -SW1 must be in OFF position before to the EVB be connected to an external power supply. - Once the power switch -SW1 is in OFF position, then the EVB can be connected to an external power supply.
-
Page 8: S32K312Evb-Q172 - Power Supply
Indicates that the +3.3Vlinear regulator is enabled and working correctly. Figure 3. S32K312EVB-Q172 – Power supply Input and LED power indicators If no LED’s are illuminated when power is applied to the EVB and the regulators are correctly enabled using the appropriate jumpers, it is possible that either power supply is not connected properly, or the voltage level is lower that the specified [+12.0V... -
Page 9: S32K312Evb-Q172 - Main Power Supply
S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual 7.1 S32K312EVB-Q172 - Main Power Supply Figure 4. S32K312EVB-Q172 – Main power supply input Table 2. Main power supply connector Connector Description 2.1mm Barrel Connector – J14 This connector should be used to connect the supplied wall-plug mains adapter. Note – if a Ground replacement or alternative adapter is used, care must be taken to ensure the 2.1mm plug... - Page 10 S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual 7.1.1 S32K312EVB-Q172 – FS26/Modes Operation VBATP HDR1X2 SILK = VDBG_RMODE JUMPER(Default) = 1-2 SILK = VDBG_MODE VBATP_SW JUMPER(Default) = 1-2 FS26_VDEBUG HDR 1X3 Page[3] FS26_VDEBUG 100k BC846B 5.1K 0402...
-
Page 11: S32K312Evb-Q172 - +5.0 Volts Power Supply
All change of jumpers must be done once the EVB is unpowered from J3 and J5 as MANDATORY 7.2 S32K312EVB-Q172 – +5.0 Volts Power Supply SILK = P5V0 JUMPER(Default) = 1-2 SILK = P5V0 Figure 6. S32K312EVB-Q172 – General jumper for the P5V0 (+5.0V) reference Table 4. S32K312EVB-Q172 – +5.0 Volts Power Supply Reference Jumper Position Description Comments The +5.0V output of the FS26x SBC [FS26_VLDO1] is routed... -
Page 12: S32K312Evb-Q172 - +3.3 Volts Power Supply
S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual 7.3 S32K312EVB-Q172 – +3.3 Volts Power Supply Figure 7. S32K312EVB-Q172 – General jumper for the P3V3 (+3.3V) reference Table 5. S32K312EVB-Q172 – +.3.3 Volts Power Supply Reference Jumper Position... -
Page 13: S32K312Evb-Q172 - Vrefh
S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual Table 6. S32K312EVB-Q172 – VDD_HV_A Reference Jumper Position Description Comments P5V0 (+5.0V from the FS26) is selected for the Default closed VDD_HV_A_MCU reference P3V3 (+3.3V from the FS26) is selected for the... -
Page 14: S32K312Evb-Q172 - Programming And Debug Interface
S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual 8 S32K312EVB-Q172 - Programming and Debug Interface 8.1 RESET Switch and LED indicator The RESET switch [SW2] provides for manual application of the RESET input signal. The S32K3 MCU will drive the RESET signal to reset the EVB board peripherals. -
Page 15: On-Board Debugger
S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual 8.2 On-board Debugger The EVB incorporates an On-Board Debugger embedded well as JTAG connectors. It bridges serial and debug communications between a USB host and an embedded target processor. -
Page 16: S32K312Evb-Q172 - Lin Interface
S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual 9 S32K312EVB-Q172 - LIN Interface The EVB incorporates two LIN interfaces connected the S32K312 MCU. Using an NXP LIN transceivers the TJA1021T/20/C, supporting both master and slave mode (jumper selectable). The output from the LIN transceivers is connected to J23. -
Page 17: S32K312Evb-Q172 - Can Interface
R134 100pF 100pF TJA1022T 0402 0402 0402 0402 LIN Connector Figure 13. S32K312EVB-Q172 – LIN Physical Layer1 TJA1021HG: Quad LIN 2.2A/SAE J2602 transceiver Table 9. LIN Interface – MCU Connections Signal Name Comment/Description Interface Port TJA1021 LIN1_RX PTB9 LPUART9_RX is routed to LIN Phy1... -
Page 18: S32K312Evb-Q172 - User Peripherals
R170 R204 TJA1043 0.22UF 0402 0402 0402 0402 0402 Figure 15. S32K312EVB-Q172 – CAN Physical Layer0 - TJA1043 Secure HS-CAN Transceiver Table 11. CAN Interface – MCU Connections Signal Name Comment/Description Interface Port TJA1153 CAN0_RX PTA6 [CAN0_RX Module] is routed to CAN Phy0... - Page 19 S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual Table 12. User LED Indicators MCU Port Reference Signal Name Color Comment Default RGBLED0_RED PTA29 Active High RGBLED0_GREEN PTA30 Green Active High RGBLED0_BLUE PTA31 Blue Active High Figure 16. S32K312EVB – User RGB LED Indicator...
-
Page 20: User Pushbuttons
S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual 11.2 User Pushbuttons There are 2 push-buttons active to high (pulled low, driven to VDD_HV_A and VDD_HV_B), the push button switches (SW6 and SW5) connected to MCU ports. The switches are connected as follows: Figure 18. -
Page 21: Adc Rotary Potentiometers
S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual Table 13. User Pushbuttons Reference Function Comments Port USER_SW0 PTB26 Disabled USER_SW1 PTB19 Enabled as DEFAULT PTF31 Disabled PTC18 Disabled There are zero-ohm resistors on the direct connections between each USER_SWx and the MCU pins. These can be removed if required to isolate or change the User Switch from the default MCU pin. -
Page 22: S32K312Evb-Q172 - Default Jumpers
S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual VDD_HV_A_PERH R601 Input Channel TP111 HDR 1X1 TPAD R293 R592 1.0K ADC_POT0 Page[5] C202 C199 0.22UF 0.22UF 0402 0402 Figure 21. S32K312EVB-Q172 – ADC Rotary Potentiometers 12 S32K312EVB-Q172 - Default Jumpers Figure 22. - Page 23 S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual Table 15. Default Jumper Configuration Reference Position Interface Description / Comments FS26x SBC FS26_VLDO1 [+5.0V] is routed to P5V0 domain Power FS26_VLDO2 [+3.3V] is routed to P3V3 domain Supply Flash Mode –...
-
Page 24: S32K312Evb-Q172 - Revision History
S32K312EVB-Q172 HWUM NXP Semiconductors S32K312EVB-Q172 | S32K312EVBQ172ND - Hardware User Manual 13 S32K312EVB-Q172 - Revision history Table 16. Revision history Schematic Schematic Document Date / Board / Board Changes Author Revision Number Revision 01/2021 51972 Internal version Jesús Sánchez S32K312EVB-Q172... -
Page 25: Legal Information
NXP Semiconductors products in order to included in a draft version of a document and shall have no avoid a default of the applications and the products or of the liability for the consequences of use of such information application or use by customer’s third-party customer(s).
