Appendix B. HygroPro
B.1

Setup

B.1.1

Required Tools

• Power Supply (capable of delivering 20V at 20mA)
• 5 Wire Cable with 6 Pin Female M8 connector for the HygroPro
• 2 Wire RS485 Cable with USB adapter
• Windows Laptop PC
• TeraTerm Software (open source terminal emulator)
B.1.2

Hardware Setup

1. Connect the RS485 wires to the 5 Wire Cable
a. Connect the RS485 Data+ (A) to the wire corresponding to Pin 2 of the M8 connector (usually White)
b. Connect the RS485 Data – (B) to the wire corresponding to Pin 4 of the M8 connector (Usually Black)
2. Connect the 5 Wire cable to the power supply
a. With the power supply turned off
b. Connect the negative lead of the power supply to the wire corresponding to Pin 1 (usually Brown)
c. Connect the positive lead of the power supply to the wire corresponding to Pin 3 (usually Blue)
d. Do not turn on the power supply
3. Connect the 6 Pin M8 Connector to the HygroPro
4. Connect the USB plug of the RS485 adapter to your laptop
5. Set up the values for the power supply, but do not power on the device
a. Set the Voltage to 20 V
b. Set the current to 20 mA
II
HygroPro User's Manual
II
Field Service Update User Manual

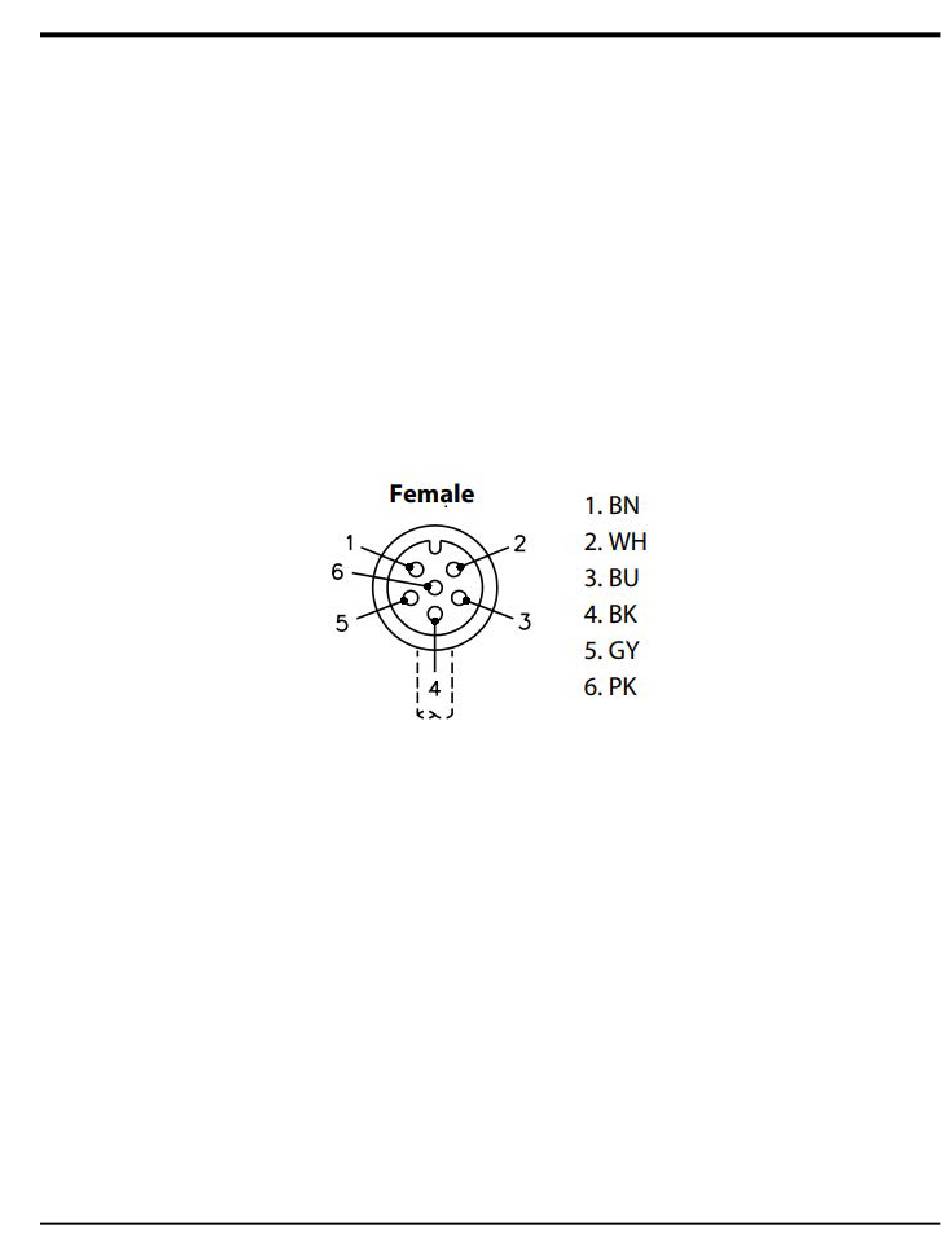

Figure 21: Pin Out for 6 Pin Female M8 Connector
II
Appendix B. HygroPro
II
II
Field Service Update User Manual
77
