E2S BExBG10D-P Instruction Manual

1) Warnings
 DO NOT OPEN WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT
 DO NOT OPEN WHEN ENERGIZED
 POTENTIAL ELECTROSTATIC CHARGING
HAZARD – CLEAN ONLY WITH A DAMP
CLOTH
 COVER BOLTS CLASS A4-80
 USE HEAT RESISTING CABLES AND CABLE
GLANDS (RATED 110°C) AT AMB.
TEMPERATURES OVER 40°C
2) Rating & Marking Information
All units have a rating label, which carries the following
important information:-
Model No.: BExBG10D-P or BExBG15D-P
Input Voltage: DC Units
AC Units
BExBG10D-P & BExBG15D-P Codes:
Ex db IIC T4 Gb Ta. -50°C to +50°C
Ex db IIC T3 Gb Ta. -50°C to +70°C
Ex tb IIIC T120°C Db Ta. -50°C to +40°C
Ex tb IIIC T135°C Db Ta. -50°C to +55°C
Ex tb IIIC T150°C Db Ta. -50°C to +70°C
KEMA 00ATEX2006X
Certificate No.
IECEx KEM 10.0002X
Epsilon x:
Equipment Group and
Category:
CE Marking
Notified Body No.
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D210-00-211-IS
INSTRUCTION MANUAL (ATEX / IECEx)
For use in Flammable Gas and Dust Atmospheres
Zone 1 Explosive gas air mixture likely to occur in
normal operation.
Zone 2 Explosive gas air mixture not likely to occur,
and if it does, it will only exist for a short time.
24V or 48V or 12V (10J only)
230V or 115V
II 2G
II 2D
2813
Issue 3 20-04-2020
BExBG10D-P and BExBG15D-P

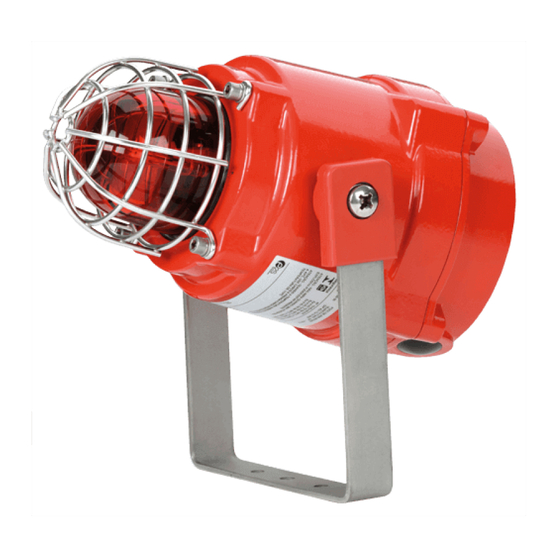

Flameproof Xenon Beacons
BExBG10D-P / BExBG15D-P
The BExBG10D-P and BExBG15D-P beacons have been
certified for use
Area Classification Gas:
Zone 1
Zone 2
Gas Groupings:
Group IIA
Group IIB
Group IIC
Temperature Classification:
T1
T2
T3
T4
Area Classification Dust:
Zone 21
Zone 22
Dust Groups:
Group IIIA
Group IIIB
Group IIIC
Maximum Surface Temperature for Dust Applications:
IP Rating: IP66/67 to EN/IEC60529 and IP6X to
EN/IEC60079-0, EN/IEC60079-31
Equipment Category:
Equipment Protection Level:
Ambient Temperature Range:
-50°C to +70°C Gas Groups IIA, IIB and IIC
-50°C to +70°C Dust Groups IIIA, IIIB and IIIC
Sheet 1 of 5
in locations with the following conditions:
Explosive gas atmosphere likely to occur
in normal operation.
Explosive gas atmosphere not likely to
occur in normal operation but may be
present for short periods.
Propane
Ethylene
Hydrogen and Acetylene
o
400 C
o
300 C
o
200 C
o
135 C (up to +50°C upper ambient)
Explosive dust atmosphere likely to occur
in normal operation.
Explosive dust atmosphere not likely to
occur in normal operation but may be
present for short periods.
Combustible Dust
Non-Conductive Dust
Conductive Dust
120ºC at +40°C ambient
135ºC at +55°C ambient
150ºC at +70°C ambient
2G / 2D
Gb / Db
