Device Configuration

5 Device Configuration
To configure attributes permanently in the PROFINET
Module, use the Ethernet Device Configuration Tool and
untick Store settings temporary.
NOTICE
The Error LED flashes whenever the device is receiving
power but is not connected to a network. The Error LED
flashes throughout the configuration process.

5.1 Ethernet Device Configuration Tool

Downloading the tool:
1. Go to drives.danfoss.com/downloads/pc-tools/ to
find the tool.
2. Make sure to have administrator privileges on the
PC before starting the installation.
3. Accept the End-User License Agreement.
4. Click Yes on the User account control dialog box.
Configuring the device using the Ethernet Device
Configuration Tool:
1. Attach the module to a soft starter.
2. Connect Ethernet port 1 or port 2 on the module
to the network.
3. Apply control power to the soft starter.
4. Start the Ethernet Device Configuration Tool.
In Options ⇒ Protocols, select DCP and deselect
5.
NetIdent.

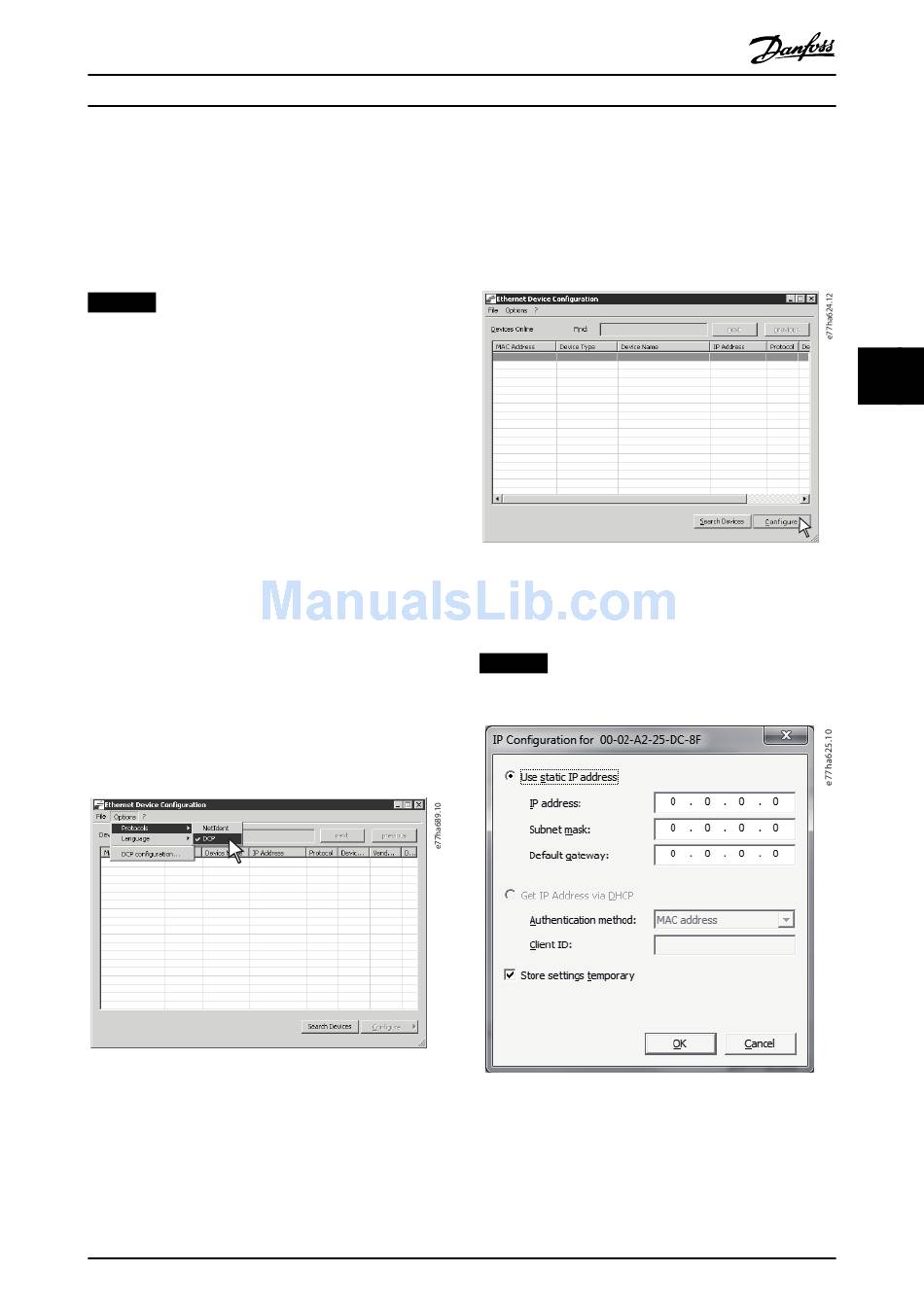

Illustration 5.1 Starting the Tool
MG17P102
Installation Guide
6.
00-02-A2-25-DC-8F Default.Station.Type nic50repns
Illustration 5.2 The Tool Shows the Connected Devices
7.
NOTICE
To configure attributes permanently, untick Store settings
temporary.
Illustration 5.3 Setting a Static IP Address
Danfoss A/S © 11/2017 All rights reserved.
Click Search Devices.
6a The software searches for connected
devices.
To set a static IP address, click Configure and
select Set IP Address.
0.0.0.0 DCP 5
