Summary of Contents for CAME MYTO Series

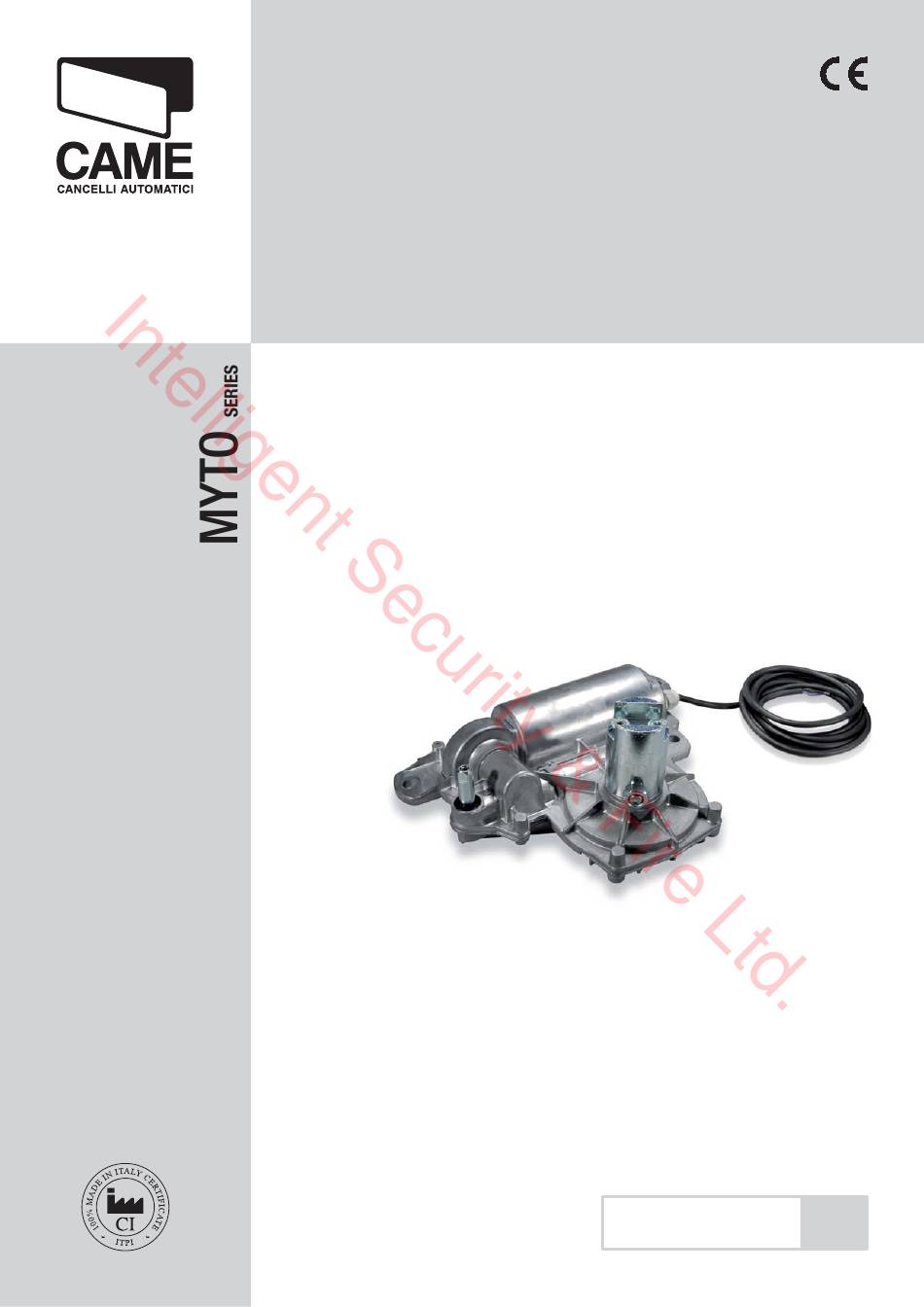

- Page 1 UNDERGROUND/EXTERNAL AUTOMATION FOR SWING GATES INSTALLATION MANUAL MYTO ME English...
- Page 2 Index Legend of symbols P. 4 Intended use and limits to use P. 4 Intended use P. 4 Limits to use P. 4 Description P. 4 Technical features P. 4 Dimensions P. 4 Description of parts P. 5 Installation examples P.
-
Page 3: Read Carefully
Warning Sings (e.g. gate plate). (i.e. that for which it was expressly built for). Any other use is Special instructions and to be considered dangerous. Came Cancelli Automatici S.p.A. advice for users is not liable for any damage resulting from improper, wrongful •... -
Page 4: Legend Of Symbols
Description This product is engineered and manufactured by CAME cancelli automatici s.p.a. and complies with current safety regulations. The automation is made up of a fixing / foundation casing, a gearmotor, a transmission arm with slide guide and slide rail. -
Page 5: Installation Examples
Description of parts MYTO-BD MYTO-C 1) Transmission pin 2) Gearmotor 3) Release pin 4) Release lever MYTO-ME 5) Foundation / fixing casing 6) Release hole cap 7) Casing cover 8) Slide guide 9) Opening mechanical stop 10) Closing mechanical stop 11) Transmission arm 12) Dome 13) Guide... -
Page 6: External Installations
External installations Opening gate leaf at max 90° Opening gate leaf at max 100° Opening gate leaf at max 110° Opening gate leaf at max 110° Opening gate leaf at max 120°... -
Page 7: Underground Installations
Underground installations Opening gate leaf at max 90° Opening gate leaf at max 110° Opening gate leaf at max 125° Installation Installation must be carried out by expert qualified personnel and in full compliance with current regulations. Preliminary checks Before installing, do the following: •... -
Page 8: Standard Installation
Tools and materials Make sure you have all the tools and materials you will need for the installation at hand to work in total safety and compliance with the current standards and regulations. Type and section of cables Connection Type of cable Length of cable 1 <... - Page 9 Setting up the fi xing /foundation casing The following illustrations are also shown in the MYTO-C instruction sheet (for underground installation). Some exam- ples are given, in that the space available for anchoring the operator and accessories varies depending on the overall dimen- sions.
- Page 10 Installation of the automation Insert the pin into the gearmotor shaft and secure it using nuts and bolts. Insert the gearmotor into the box and secure it using the hexagonal nuts and washers. Screw M12 UNI 5588 M12 UNI 5739 10X25 UNI 6592 Ø10X20...
- Page 11 Drill holes at the points you have marked. Thread the holes using an M8 male or use M8 threaded inserts or other suitable materials that guarantee proper hold to the rail. Note: the illustrations are mere examples, it is up to the installer to choose the most suitable solution depending on gate-leaf type and thickness.
- Page 12 Remove the closing mechanical stop from the rail. Insert the slide guide and insert back the stop. Position the transmission arm onto the bushing and secure it using the countersunk screws. UNI 5933 M8X25 Secure the box cover using the countersunk screws. Secure the cap above the pin using a self-threading screw. UNI 6954 3.9X9.5 UNI 5933 5X12...
- Page 13 Insert the rail end caps onto both ends of the slide rail, as well as the hole caps. Release the gearmotor (see paragraph on manually release). Place the gate leaf in the fully open position, place the opening mechanical stop against the slide guide and secure it. Opening mechanical stop Guide...
- Page 14 Releasing and locking the gearmotor Turn the release cover and insert the lever onto the release pin. Turn the release lever counter-clockwise until the endstop point. RELEASING To lock the motor back up, turn the level to the initial point. LOCKING...
-
Page 15: Control Panel
Connecting to the control panel For electrical connection operations, use the pit and junction boxes. For additional instructions on functions and settings, check the control panel’s technical literature. 1) Control panel 2) Left-hand gearmotor 3) Right-hand gearmotor 4) Junction box 5) Junction pit Control panel M1 N1 E1 + E - M2 N2 E2 + E -... -
Page 16: Safety Instructions
Safety instructions Important safety instructions This product must only be employed for its originally intended use. Any other use is wrong and potentially dangerous. The manu- facturer cannot be held liable for any damages resulting from wrongful, erroneous or negligent uses. Avoid working close to the hinges or other moving mechanical parts. - Page 17 Make sure there are no plants within the photocell’s beam, and that the gate motion is free of any obstacles. Trouble shooting MALFUNCTIONS POSSIBLE CAUSES CHECK AND REMEDIES The gate will not open • There is no power • Check that the power is up nor close •...
- Page 18 UNI EN ISO 14001 standard to ensure environmental protection. Please continue our efforts to protect the environment—which CAME considers one of the cardinal elements in the developmentof its operational and market strategies—simply by observing brief recommendations as regards disposal: DISPOSAL OF PACKAGING The packaging components (cardboard, plastic, etc.) are all classifiable as solid urban waste products and may be disposed of easily,...
-
Page 19: Manufacturer's Statement
It is forbidden to operate the product/s, which is/are the object of this statement, before tel (+39) 0422 4940 - fax (+39) 0422 4941 completion and/or incorporation, in full compliance of the Law on Electromagnetic internet: www.came.it - e-mail: info@came.it Compatibility. Hereby declares itself liable, as concerns the following gate and garage-door automation... - Page 20 (+34) 91 52 85 009 Jebel Ali Free Zone - Dubai Dubai (+34) 91 46 85 442 (+971) 4 8860046 (+971) 4 8860048 CAME United Kingdom Ltd. CAME United Kingdom Ltd. GREAT BRITAIN RUSSIA CAME Rus CAME Rus Unit 3 Orchard Business Park...
