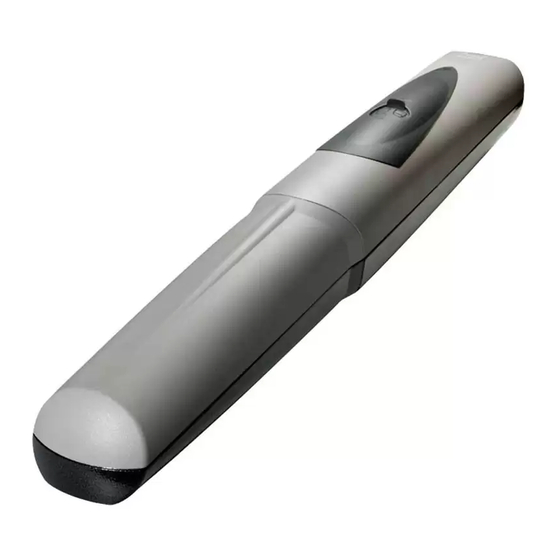

CAME AX3024 Installation Manual
Ax0 series
Hide thumbs
Also See for AX3024:
- Installation manual (16 pages) ,
- Installation manual (16 pages) ,
- Installation manual (65 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for CAME AX3024
Summary of Contents for CAME AX3024

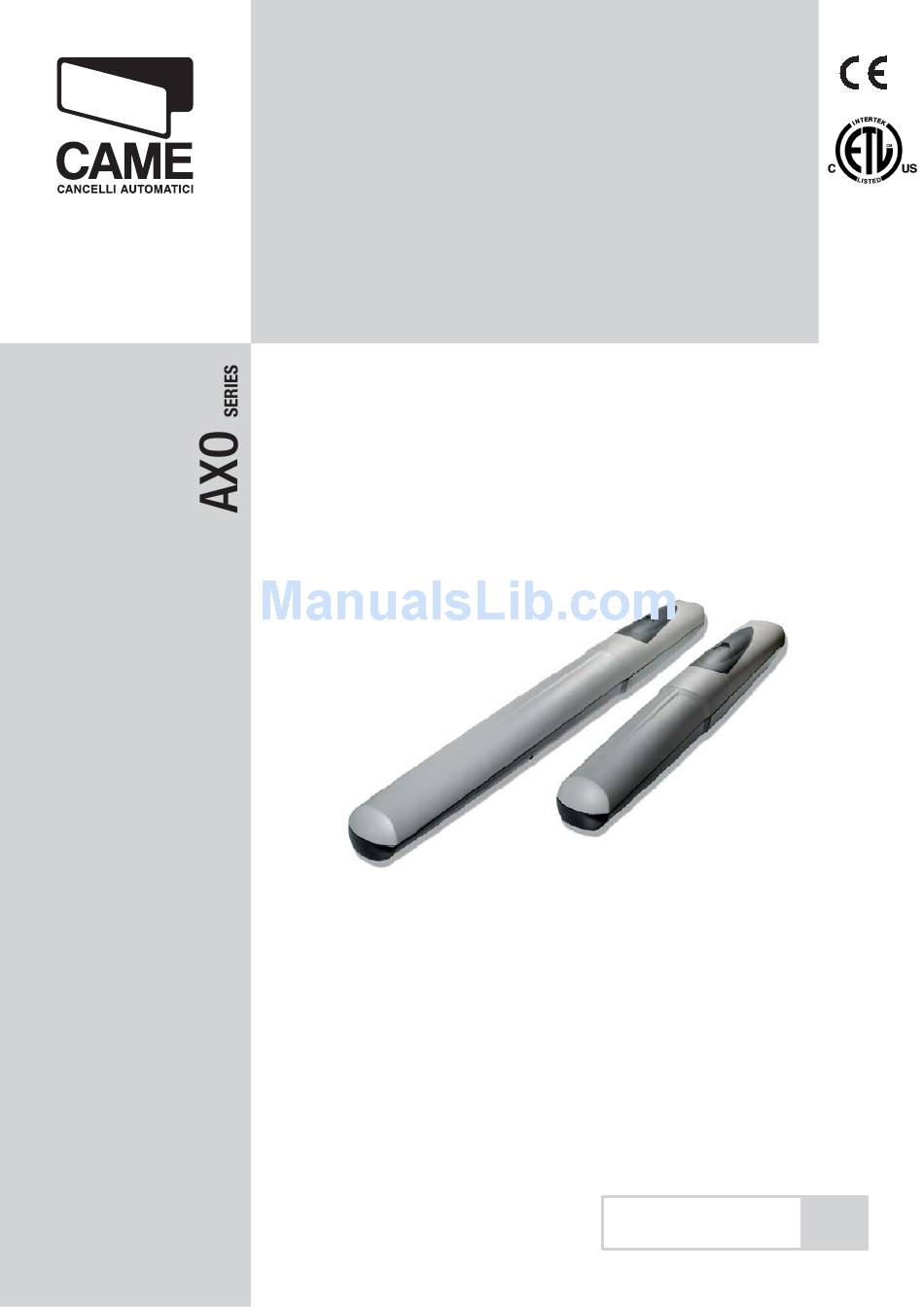

- Page 1 AUTOMATION FOR SWING GATES INSTALLATION MANUAL AX3024 / AX5024 English...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS AXO Series It is extremely important that all parties involved in the installation and operation of the gate operator system read and understands the following warning instructions. WARNING – To reduce the risk of injury or death: 1. - Page 3 (57.2mm) diameter sphere from passing through the openings anywhere in the gate, and in that portion of the adjacent fence that the gate covers in the open position, 3. All exposed pinch points are eliminated or guarded, and 4. Guarding is supplied for exposed rollers. B.
- Page 4 All installation operating and safety manuals should be left with the owner. CAME AUTOMATIC GATES UL 325 CLASSES CLASS DUTY CYCLE...
-
Page 5: Read Carefully
Warning Sings (e.g. gate plate). (i.e. that for which it was expressly built for). Any other use is Special instructions and to be considered dangerous. Came Cancelli Automatici S.p.A. advice for users is not liable for any damage resulting from improper, wrongful •... -
Page 6: General Conditions Of Sale
3. ORDERS The sale agreement is executed once the written order is confirmed by Came Cancelli Automatici Spa or when the order is fulfilled by the company. Orders that are addressed, and signed by clients, to Came Cancelli Automatici SpA are deemed to be firm and irrevocable for 30 days starting from the date they are received by the company. -
Page 7: Legend Of Symbols
* The electrolock must be installed onto the door-leaf. 3 Reference Standards The company CAME cancelli automatici is ISO 9001:2000 quality certified; it has also obtained the ISO 14001 environmental safeguarding certification. CAME engineers and manufactures all of its products in Italy. -
Page 8: Technical Features
4.2 Technical features GEARMOTOR AX3024 / AX5024 Control board power supply: 120V A.C. 50/60Hz Motor power supply: 24V D.C. Max draw.: 10A Power: 240W Adjustable thrust: 500÷4500N Opening time(90°): adjustable Duty cycle: intensive user Protection rating: IP44 4.3 Description of parts... -
Page 9: Installation
5 Installation Installation must be carried out by expert qualified personnel and in full compliance with current regulations. 5.1 Preliminary checks Before installing, do the following: • Make sure you have suitable tubing and conduits for the electrical cables to pass through and be protected against mechanical damage;... -
Page 10: Standard Installation
5.4 Standard installation 1) AXO operator 2) Control panel 3) Reception antenna 4) Flashing light 5) Selector switch 6) Photocells 7) Electric cable junction box 8) Mechanical gate stops 9) Photocell column 5.5 Installing the operator The following illustrations are only examples, given that the space available for anchoring the operator and accessories may vary from gate to gate. - Page 11 Note: by increasing measure B, the opening angle and gate speed are reduced, while the gearmotor thrust is increased. By increasing the measure A, the opening angle and gate speed are increases, while the gearmotor thrust is decreased. Pillar bracket Gate bracket AX3024 AX5024 Gate leaves of up to 3m Gate leaves of up to 5 m...
- Page 12 Insert the bushing (lubricated) into the pillar bracket’s hole. The bracket has holes that allow the opening angle to be changed. Secure the tail joint to the bracket. Screw M8 x 35 Bushing Tail joint AX3024 Nut UNI 7474 M8 Bushing Tail joint AX5024...
- Page 13 Open the gate leaf and insert the pin into the gate bracket and secure it using a washer and nut. Gate bracket UNI6593 Ø8 washer Screw UNI5739 M8x10 Release the gearmotor (see paragraph on manual release), completely open the gate leaf, loosen the nuts of the opening mechanical stop and position it up against the attachment pin, then secure it.
- Page 14 5.6 Manual release of the gearmotor Slide open the small door that protects the release, insert the tri-lobed key and turn it. 5.7 Connecting to the control panel For the electrical connection procedures, use the junction box and branching boxes. Connecting the 24V d.c.
- Page 15 5.8 Outward opening installation (non-issued) Supplementary bracket TABLE 1 TABLE 2 Opening Opening (mm) (mm) (mm) (mm) (mm) (mm) 90° 1100 90° Weld pillar bracket to the non-issued supplementary bracket, while gate is open, then secure the brackets to the pillar, making sure the “A”...
- Page 16 Fully close the gate-leaf, place the mechanical stop against it with the pin attachment and fi x it in place. Attachment pin Opening mechanical stop Fully open the gate-leaf, place the mechanical stop against it with the pin attachment and fi x it in place. Attachment pin Closing mechanical stop Connect the gearmotors to the panel as shown in the diagram.
-
Page 17: Safety Instructions
6 Safety instructions Important safety instructions This product must only be employed for its originally intended use. The automation installation using these gearmotors requires adequate safety systems on the gate leaves to detect any obstacles (e.g. sensitive edges), in compliance with EN12445 and EN12453 Technical Standards relative to the impact force generated by the moving gate. -
Page 18: Maintenance
7 Maintenance 7.1 Periodic maintenance Periodic maintenance to be carried out by the end-user is as follows: wipe clean the glass surface of the photocells; check that the safety devices work properly; remove any obstructions. We suggest checking the state of lubrication and tightness of the anchoring screws on the operator. To check the efficiency of the safety devices, move an object in front of the photocells when gate is closing. -
Page 19: Extraordinary Maintenance
Periodic maintenance log for end-user (every 6 moths). Date Notes Signature 7.3 Extra-ordinary maintenance The following table serves to note down any extraordinary maintenance, repairs or improvements performed by specialised firms. N.B.: Any extraordinary maintenance must be performed by specialised technicians. Extra-ordinary maintenance log Installer’s stamp Operator name... -
Page 20: Phasing Out And Disposal
CAME cancelli automatici s.p.a. employs a UNI EN ISO 14001 certified and compliant environmental protection system at its plants, to ensure that environmental safeguarding. We ask you to keep protecting the environment, as CAME deems it to be one of the fundamental points of its market operations strategies, by simply following these brief guidelines when disposing. - Page 21 (+33) 4 91 60 69 05 (+49) 71 5037830 (+49) 71 50378383 CAME Automatismos S.a. CAME Automatismos S.a. CAME Americas Automation Llc CAME Americas Automation Llc C/juan De Mariana, N. 17-local 1560 Sawgrass Corporate Pkwy, 4th Floor 28045 Madrid -...
