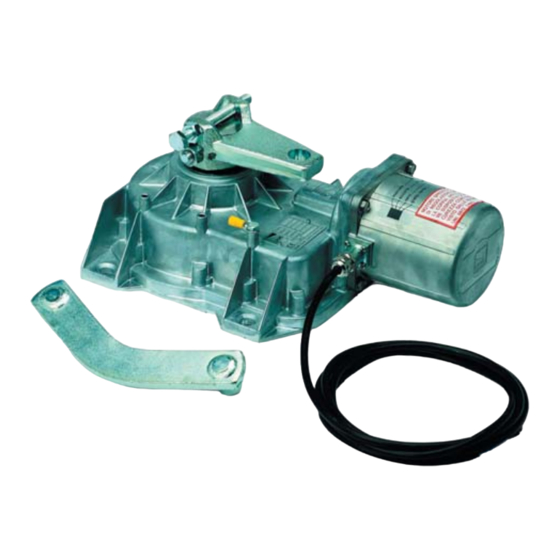

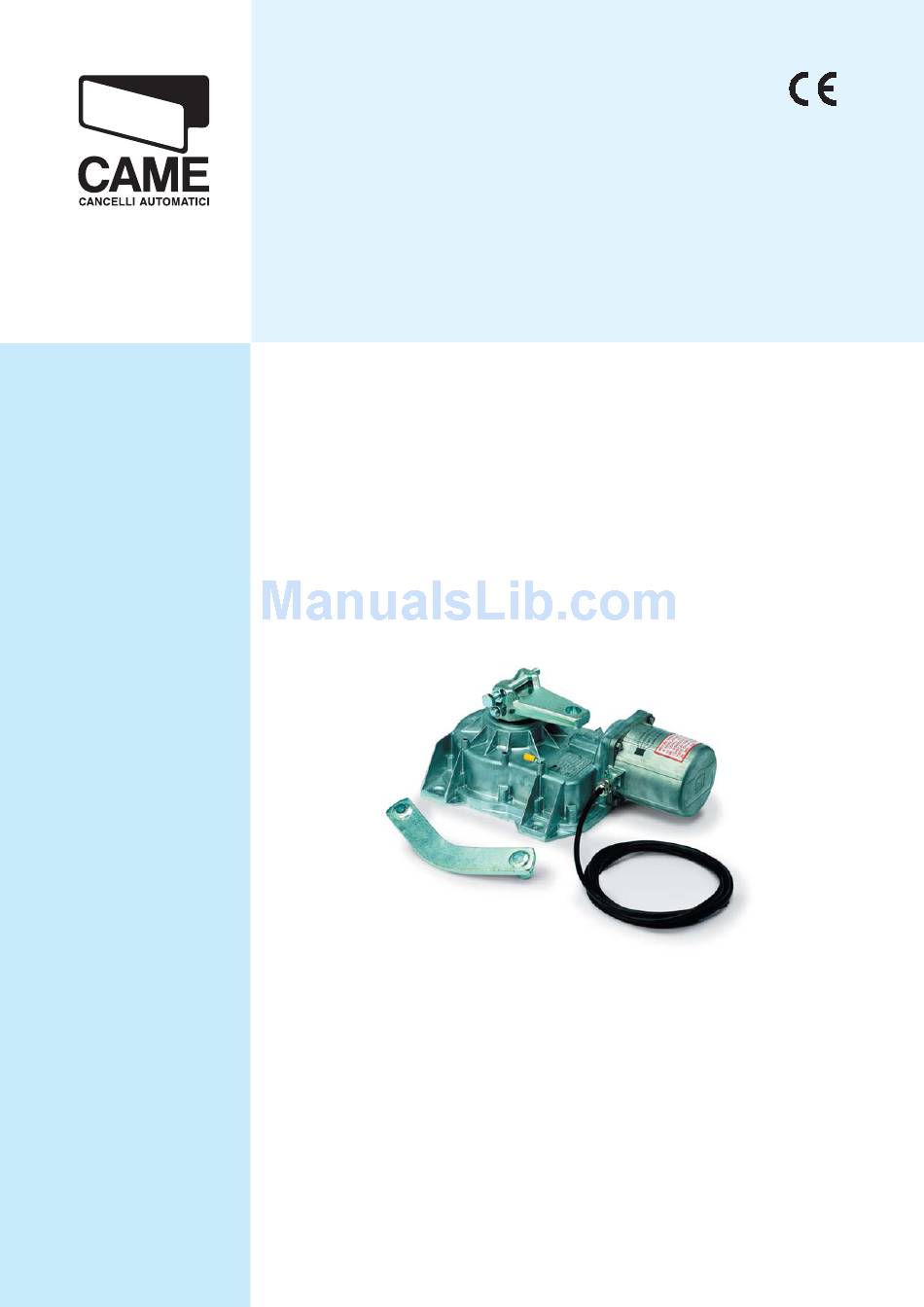

- Page 1 IN-GROUND OPERATOR FOR SWING GATES FROG SERIES INSTALLATION MANUAL FROG-A 24V...
-
Page 2: Legend Of Symbols
For intensive use and condominiums: max weight of the gate 400kg with max length of 3.5m. 3 Reference Standards For its quality processes management CAME cancelli automatici is ISO 9001:2000 certified, and for its environmental mana- gement it is ISO 14001 certified. CAME engineers and manufactures all of its products in Italy. -
Page 3: Installation
4.3 Dimensions 5 Installation Installation must be carried out by expert qualified personnel and in full compliance with current regulations. 5.1 Preliminary checks Before installing, do the following: • Make sure you have a suitable omnipolar cut-off device with contacts more than 3 mm apart, and independent (sectioned off) power supply;... -
Page 4: Standard Installation
5.3 Cable list and minimum thickness Connections Type of cable Length of cable 1 < 10 m Leng. cable 10 < 20 m Leng. cable 20 < 30 m Control panel power supply 230V 3G 1,5 mm 3G 2,5 mm 3G 4 mm Motor power supply 24V 2 x 1 mm... -
Page 5: Assembly Diagram
5.5 Assembly diagram Fig.2 5.6 Installing the unit - Check the effi ciency of both moving and non-moving parts on the structure that will be supporting the operator; - Determine, depending on the type of supporting structure and desired opening, the exact position of the motor assembly by following the standard applications shown;... -
Page 6: Manual Release
5.7 Manual release - In emergencies (i.e. power outages) the release mechanisms allow the gate to hook back up when closing. - You may choose among three different release models: model A4366 with customised key (Fig. 5-A), model A4365 with tri-lobed key and model A4364 with lever key (Fig. - Page 7 6.1 Adjusting the brake microswitches – Using the motor, make so that the gate leaf is max 500mm from being fully opened. At this point do a fi rst adjustment of the (endstop) microswitches, positioning them close to the magnet. Consider that this type of endstop reads the magnetic fi...
-
Page 8: Safety Instructions
7 Safety instructions Important safety instructions This product must only be employed for its originally intended use. Any other use is wrong and potentially dangerous. The manufacturer cannot be held liable for any damages resulting from wrongful, erroneous or negligent uses. Avoid working close to the hinges or other moving mechanical parts. -
Page 9: Periodic Maintenance
8 Maintenance 8.1 Periodic maintenance Periodic maintenance to be carried out by the end-user is as follows: wipe clean the glass surface of the photocel- ls; check that the safety devices work properly; remove any obstructions. We suggest checking the state of lubrication and tightness of the anchoring screws on the operator. To check the efficiency of the safety devices, move an object in front of the photocells when gate is closing. -
Page 10: Extraordinary Maintenance
Periodic maintenance log (for end-user) (every 6 moths) Date Notes Segnature 8.3 Extra-ordinary maintenance The following table serves to note down any extraordinary maintenance, repairs or improvements performed by spe- cialised firms. N.B.: Any extraordinary maintenance must be performed by specialised technicians. Extra-ordinary maintenance log Installer’s stamp Operator name... -
Page 11: Demolition And Disposal
UNI EN ISO 14001 standard to ensure environmental protection. Please continue our efforts to protect the environment—which CAME considers one of the cardinal elements in the develop- mentof its operational and market strategies—simply by observing brief recommendations as regards disposal: DISPOSAL OF PACKAGING The packaging components (cardboard, plastic, etc.) are all classifiable as solid urban waste products and may be disposed of... - Page 12 CAME UNITED KINGDOM LTD UNIT 3, ORCHARD BUSINESS PARK TOWN STREET, SANDIACRE NOTTINGHAM - NG10 5BP - U.K. Tel 0044 115 9210430 Fax 0044 115 9210431...
